Passive Safety Belts System of Ferrari Ferrari 348 TB (1993)

View All

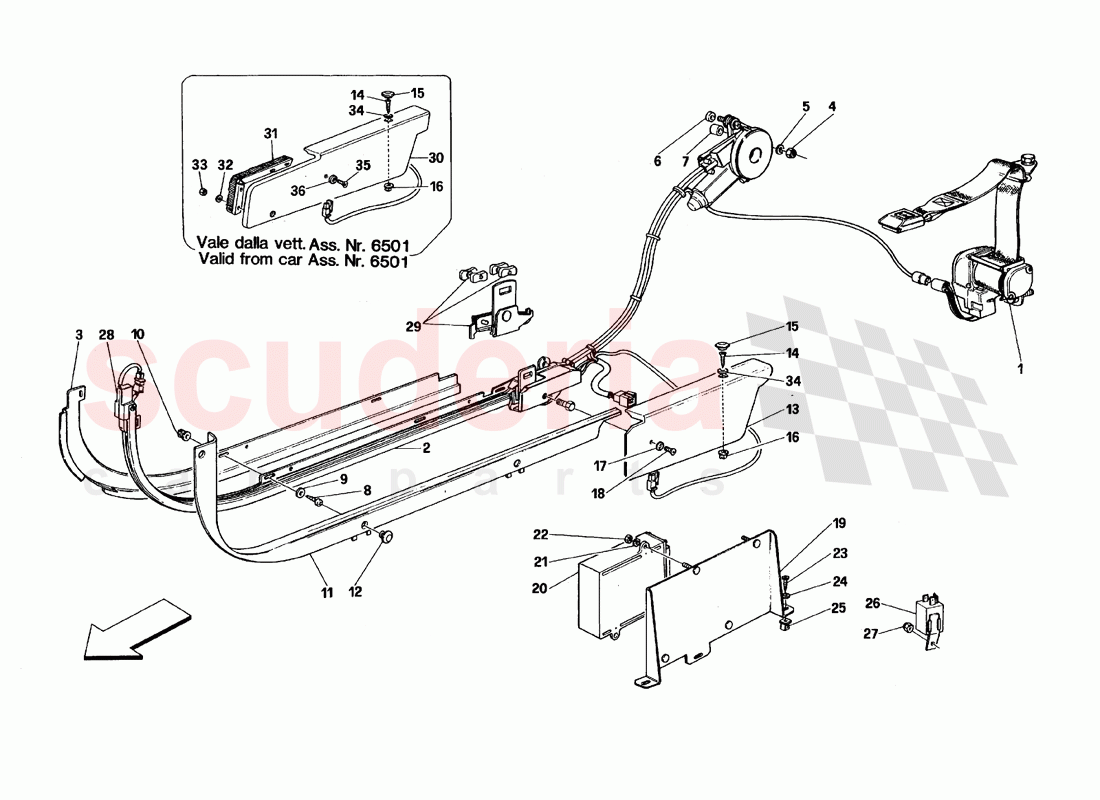

Ferrari 348 TB (1993) - Passive Safety Belts System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62894700	LH. DIAGONAL BELT	Enquire	To Order
	62894600	RH DIAGONAL BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62895000	LH COMPLETE DRIVING SYSTEM	Enquire	To Order
	62894900	RH COMPLETE DRIVING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63257500	L.H. DRIVING PROTECTION	Enquire	To Order
	63257400	R.H. DRIVING PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63289300	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104339	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15958101	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115980	BLOCK-Valid for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	628954	LH LINED GUIDE PROTECTION MOULDING	Enquire	To Order
	633823	L.H. UPHOLSTERY	Enquire	To Order
	628953	RH LINED GUIDE PROTECTION MOULDING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	143862	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	628962	LINING	Enquire	To Order
	628958	RH REAR LINED GUIDE PROTECTION MOLDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15958801	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143862	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115980	BLOCK-Valid for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13337407	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13297517	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62737100	PLATE FASTENING PASSIVE BELT UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65779400	PASSIVE BELTS CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496204	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574017	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168133	Screw M5 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14497705	WASHER -Valid for SA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14202782	BLOCK -Valid for SA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137666	PASSIVE BELT ACOUSTIC SIGNAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000708	A STATION EQUIPMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000710	L.H. TROLLEY EQUIPMENT KIT	Enquire	To Order
	70000709	R.H. TROLLEY EQUIPMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63584600	UPHOLSTERY	Enquire	To Order
	63310400	LINING	Enquire	To Order
	63584300	RH REAR LINED GUIDE PROTECTION MOLDING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	63310500	BRUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577411	WASHER -Not for GTS-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62894500	PASSIVE BELTS COMPLETE SET	62894500 PASSIVE BELTS COMPLETE SET	-	1	Enquire
1	62894700	LH. DIAGONAL BELT	62894700 LH. DIAGONAL BELT	-	1	Enquire
1	62894600	RH DIAGONAL BELT	62894600 RH DIAGONAL BELT	-	1	Enquire
2	62895000	LH COMPLETE DRIVING SYSTEM	62895000 LH COMPLETE DRIVING SYSTEM	-	1	Enquire
2	62894900	RH COMPLETE DRIVING SYSTEM	62894900 RH COMPLETE DRIVING SYSTEM	-	1	Enquire
3	63257500	L.H. DRIVING PROTECTION	63257500 L.H. DRIVING PROTECTION	-	1	Enquire
3	63257400	R.H. DRIVING PROTECTION	63257400 R.H. DRIVING PROTECTION	-	1	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
5	12646604	WASHER	12646604 WASHER	-	4	Enquire
6	63289300	SPACER	63289300 SPACER	-	4	Enquire
7	104339	SPACER	104339 SPACER	-	2	Enquire
8	15958101	SCREW	15958101 SCREW	-	6	Enquire
9	62769800	WASHER	62769800 WASHER	-	6	Enquire
10	14115980	BLOCK-Valid for USA-	14115980 BLOCK-Valid for USA-	-	6	Enquire
11	628954	LH LINED GUIDE PROTECTION MOULDING	628954 LH LINED GUIDE PROTECTION MOULDING	-	1	Enquire
11	633823	L.H. UPHOLSTERY	633823 L.H. UPHOLSTERY	-	1	Enquire
11	628953	RH LINED GUIDE PROTECTION MOULDING	628953 RH LINED GUIDE PROTECTION MOULDING	-	1	Enquire
11	628957	R.H. UPHOLSTERY	628957 R.H. UPHOLSTERY	-	1	Enquire
12	143862	PLUG	143862 PLUG	-	6	Enquire
13	628962	LINING	628962 LINING Valid till car Ass. Nr. 6500	-	1	Enquire
13	628958	RH REAR LINED GUIDE PROTECTION MOLDING	628958 RH REAR LINED GUIDE PROTECTION MOLDING Valid till car Ass. Nr. 6500	-	1	Enquire
14	15958801	SCREW	15958801 SCREW	-	1	Enquire
15	143862	PLUG	143862 PLUG	-	1	Enquire
16	14115980	BLOCK-Valid for USA-	14115980 BLOCK-Valid for USA-	-	1	Enquire
17	13337407	WASHER	13337407 WASHER Valid till car Ass. Nr. 6500	-	1	Enquire
18	13297517	SCREW	13297517 SCREW Valid till car Ass. Nr. 6500	-	1	Enquire
19	62737100	PLATE FASTENING PASSIVE BELT UNIT	62737100 PLATE FASTENING PASSIVE BELT UNIT	-	1	Enquire
20	65779400	PASSIVE BELTS CONTROL	65779400 PASSIVE BELTS CONTROL	-	2	Enquire
21	14496204	WASHER	14496204 WASHER	-	4	Enquire
22	12574017	NUT	12574017 NUT	-	4	Enquire
23	168133	Screw M5 x 20	168133 Screw M5 x 20	-	3	Enquire
24	14497705	WASHER -Valid for SA-	14497705 WASHER -Valid for SA-	-	3	Enquire
25	14202782	BLOCK -Valid for SA-	14202782 BLOCK -Valid for SA-	-	3	Enquire
26	137666	PASSIVE BELT ACOUSTIC SIGNAL	137666 PASSIVE BELT ACOUSTIC SIGNAL	-	1	Enquire
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
28	70000708	A STATION EQUIPMENT KIT	70000708 A STATION EQUIPMENT KIT	-	2	Enquire
29	70000710	L.H. TROLLEY EQUIPMENT KIT	70000710 L.H. TROLLEY EQUIPMENT KIT	-	1	Enquire
29	70000709	R.H. TROLLEY EQUIPMENT KIT	70000709 R.H. TROLLEY EQUIPMENT KIT	-	1	Enquire
30	63584600	UPHOLSTERY	63584600 UPHOLSTERY Valid for TS Valid from car Nr. 94269	-	1	Enquire
30	63310400	LINING	63310400 LINING Valid from car Ass. Nr. 6501 and valid till car Nr. 94268 TS	-	1	Enquire
30	63584300	RH REAR LINED GUIDE PROTECTION MOLDING	63584300 RH REAR LINED GUIDE PROTECTION MOLDING Valid for TS Valid from car Nr. 94269	-	1	Enquire
30	63310100	RH REAR LINED GUIDE PROTECTION MOLDING	63310100 RH REAR LINED GUIDE PROTECTION MOLDING Valid from car Ass. Nr. 6501 and valid till car Nr. 94268 TS	-	1	Enquire
31	63310500	BRUSH	63310500 BRUSH Valid from car Ass. Nr. 6501	-	1	Enquire
32	13577411	WASHER -Not for GTS-	13577411 WASHER -Not for GTS- Valid from car Ass. Nr. 6501	-	5	Enquire
33	16101714	NUT	16101714 NUT Valid from car Ass. Nr. 6501	-	5	Enquire
34	62769800	WASHER	62769800 WASHER	-	1	Enquire
35	13272011	SCREW	13272011 SCREW Valid from car Ass. Nr. 6501	-	1	Enquire
36	62769800	WASHER	62769800 WASHER Valid from car Ass. Nr. 6501	-	1	Enquire
