Battery Cables of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Battery Cables

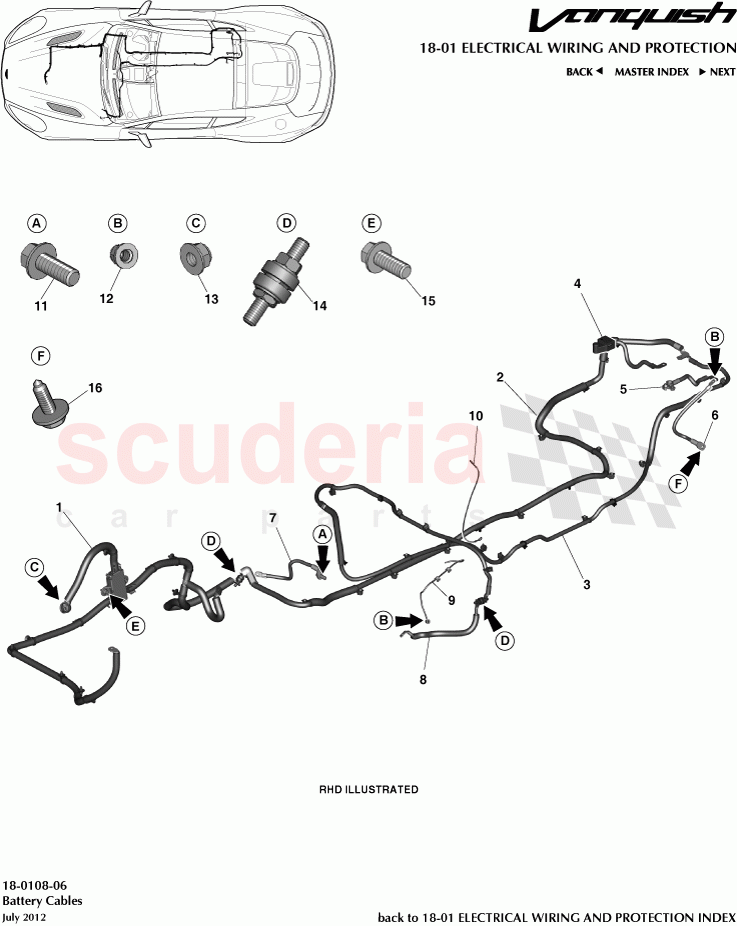

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG4310C310AB	Harness Assy, Transfer Stud to Starter/Alternator/Jump point	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3314305AB	Harness Assy, BDS to Bulkhead Stud, Dirty Feed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3314B278MB	Cable, BDS to Bulkhead Stud/CEM, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314300AD	Cable Assembly, Battery to BDS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314301AD	Cable Assembly, Battery to GND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3314A280AB	Earth Braid, Transmission to Body	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G4314A280AA	Earth Strap, Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314B278DD	Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A280DD	Earth Strap, Bonnet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4313N850AA	Harness, Earth Fuel Filler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703200	SCREW M10x25 HEX FLG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702840	Nut & Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4310A752AB	TERMINAL POST ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G33108256AA	Screw, M8 x 21mm, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3314B278LB	Cable, BDS to Bulkhead Stud/CEM, LHD	CD3314B278LB Cable, BDS to Bulkhead Stud/CEM, LHD	-	1	Enquire
1	DG4310C310AB	Harness Assy, Transfer Stud to Starter/Alternator/Jump point	DG4310C310AB Harness Assy, Transfer Stud to Starter/Alternator/Jump point	-	1	Enquire
2	CD3314305AB	Harness Assy, BDS to Bulkhead Stud, Dirty Feed	CD3314305AB Harness Assy, BDS to Bulkhead Stud, Dirty Feed	-	1	Enquire
3	CD3314B278MB	Cable, BDS to Bulkhead Stud/CEM, RHD	CD3314B278MB Cable, BDS to Bulkhead Stud/CEM, RHD	-	1	Enquire
4	4G4314300AD	Cable Assembly, Battery to BDS	4G4314300AD Cable Assembly, Battery to BDS	-	1	Enquire
5	4G4314301AD	Cable Assembly, Battery to GND	4G4314301AD Cable Assembly, Battery to GND	-	1	Enquire
6	DD3314A280AB	Earth Braid, Transmission to Body	DD3314A280AB Earth Braid, Transmission to Body	-	1	Enquire
7	6G4314A280AA	Earth Strap, Engine	6G4314A280AA Earth Strap, Engine	-	1	Enquire
8	4G4314B278DD	Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	4G4314B278DD Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	-	1	Enquire
9	4G4314A280DD	Earth Strap, Bonnet	4G4314A280DD Earth Strap, Bonnet	-	1	Enquire
10	AG4313N850AA	Harness, Earth Fuel Filler	AG4313N850AA Harness, Earth Fuel Filler	-	1	Enquire
11	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	1	Enquire
12	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	2	Enquire
13	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	1	Enquire
14	9G4310A752AB	TERMINAL POST ASSY	9G4310A752AB TERMINAL POST ASSY	-	2	Enquire
15	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
16	7G33108256AA	Screw, M8 x 21mm, Hex Flange Head	7G33108256AA Screw, M8 x 21mm, Hex Flange Head	-	1	Enquire
