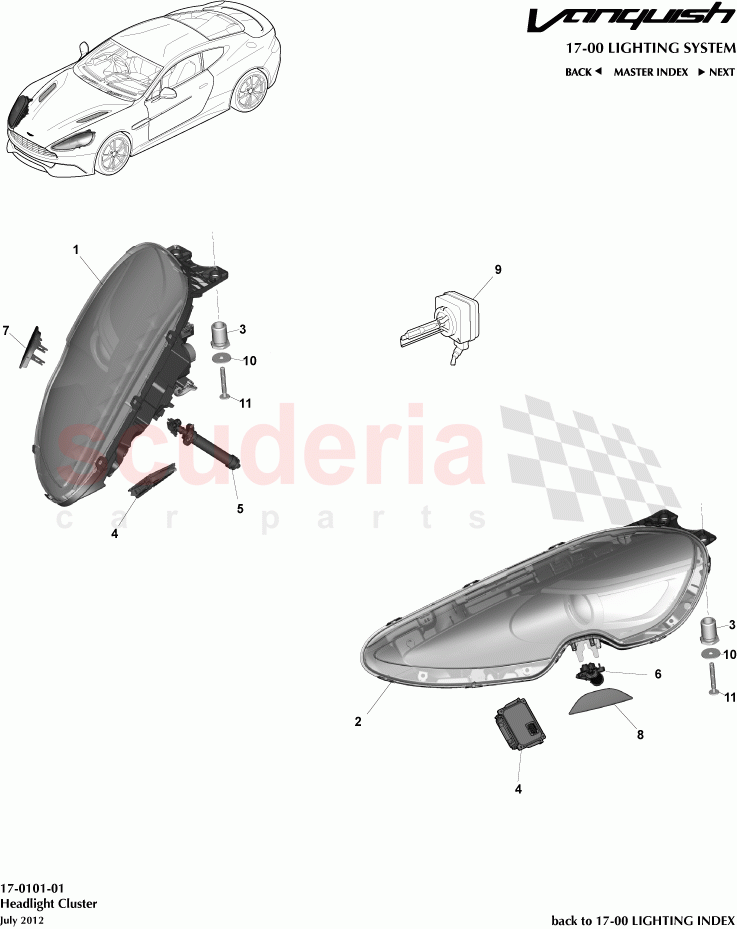

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD3313W029AB	HEADLAMP ASS RH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3313W030AB	HEADLAMP ASS LH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313037AA	Headlamp Adjuster, M20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313C169AA	Ballast Assembly, HID Service Kit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313C024AA	Jet Wash Assembly, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313C025AA	Jet Wash Assembly, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313C026AA	Cover Headlamp Wash, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313C027AA	Cover Headlamp Wash, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710226	Bulb, HID, Dip Beam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3313W029BC	HEADLAMP ASS RH LHD	CD3313W029BC HEADLAMP ASS RH LHD	-	1	Enquire
-	CD3313W029CB	HEADLAMP ASSY RH FED	CD3313W029CB HEADLAMP ASSY RH FED	-	1	Enquire
-	CD3313W030BC	HEADLAMP ASS LH LHD	CD3313W030BC HEADLAMP ASS LH LHD	-	1	Enquire
-	CD3313W030CB	HEADLAMP ASSY LH FED	CD3313W030CB HEADLAMP ASSY LH FED	-	1	Enquire
1	CD3313W029AB	HEADLAMP ASS RH RHD	CD3313W029AB HEADLAMP ASS RH RHD	-	1	Enquire
2	CD3313W030AB	HEADLAMP ASS LH RHD	CD3313W030AB HEADLAMP ASS LH RHD	-	1	Enquire
3	8G4313037AA	Headlamp Adjuster, M20	8G4313037AA Headlamp Adjuster, M20	-	6	Enquire
4	AD4313C169AA	Ballast Assembly, HID Service Kit	AD4313C169AA Ballast Assembly, HID Service Kit	-	2	Enquire
5	AD4313C024AA	Jet Wash Assembly, RH	AD4313C024AA Jet Wash Assembly, RH	-	1	Enquire
6	AD4313C025AA	Jet Wash Assembly, LH	AD4313C025AA Jet Wash Assembly, LH	-	1	Enquire
7	AD4313C026AA	Cover Headlamp Wash, RH	AD4313C026AA Cover Headlamp Wash, RH	-	1	Enquire
8	AD4313C027AA	Cover Headlamp Wash, LH	AD4313C027AA Cover Headlamp Wash, LH	-	1	Enquire
9	4G433710226	Bulb, HID, Dip Beam	4G433710226 Bulb, HID, Dip Beam	-	2	Enquire
10	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	6	Enquire
11	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	-	6	Enquire
