Aston Martin Vanquish (2012+) - Air Distribution Ducts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3304432BD Duct Assembly, Windshield Deflector, RHD $149.98 To Order
Photo Part No Description Price (each) Stock
703156 Screw/Washer M6x18 Chrome Free $0.82 IN STOCK
Photo Part No Description Price (each) Stock
703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP $0.12 To Order
Photo Part No Description Price (each) Stock
707135 SCREW 4.2 X 13 SELF TAPPING $0.11 IN STOCK
Photo Part No Description Price (each) Stock
4G4318C491AJ Grille - Window Defrost $642.89 To Order
Photo Part No Description Price (each) Stock
6G3379231AC Screw, M3.5 x 38, Flat Hd Csk $0.50 IN STOCK
Photo Part No Description Price (each) Stock
4G43C046B80AC SE I/PNL DEF OPG GRL $9.82 To Order
Photo Part No Description Price (each) Stock
4G4319E658AC Hose, A/C Window Demister $59.32 To Order
Photo Part No Description Price (each) Stock
4G4319E680AD Connector, A/C Demister Hose $9.82 To Order
Photo Part No Description Price (each) Stock
CD3319C804AA Duct, Hvac Outer, RH $167.52 To Order
Photo Part No Description Price (each) Stock
CD3319C805AA Duct, Hvac Outer, LH $167.52 To Order
Photo Part No Description Price (each) Stock
CD3318D404BA Duct Assy, Heater Air Distributor, RHD $196.97 To Order
Photo Part No Description Price (each) Stock
6G33RA610123AA Pop Rivet, Aluminium, 4.8 $0.52 To Order
Photo Part No Description Price (each) Stock
DD33014K96BA Duct Assy, Aircon Foot Well, RH, RHD $64.38 To Order
Photo Part No Description Price (each) Stock
DD33014K97BA Duct Assy, Aircon Foot Well, LH, RHD $64.38 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 IN STOCK
Photo Part No Description Price (each) Stock
8D3360302BB Clip, Fir Tree, Flat Head $0.87 To Order
Photo Part No Description Price (each) Stock
7G43014K00AA Plug Assembly, Foot Duct Outlet $13.91 To Order
Photo Part No Description Price (each) Stock
4G4317A873AA RIVET 4.8 x 12 BLND LRG AL $1.94 To Order
View All

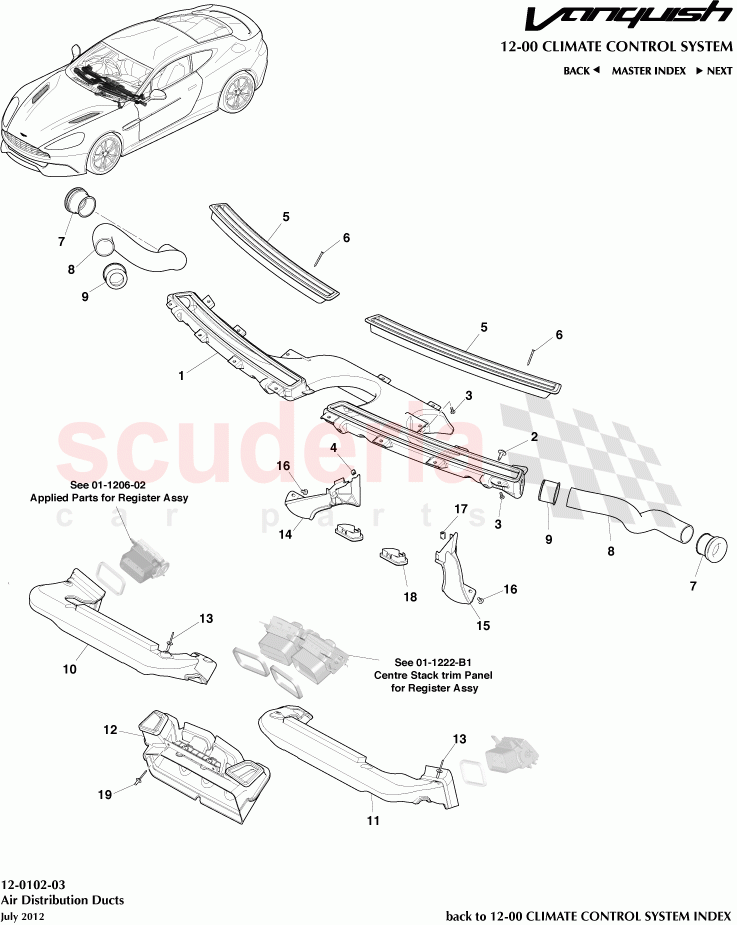

Air Distribution Ducts of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 6G3304432AD
Duct Assembly, Windshield Deflector, LHD 		$149.98 1
- CD3318D404AA
Duct Assy, Heater Air Distributor, LHD 		$196.97 1
- DD33014K96AA
Duct Assy, Aircon Foot Well, RH, LHD 		$64.38 1
- DD33014K97AA
Duct Assy, Aircon Foot Well, LH, LHD 		$64.38 1
1 6G3304432BD
Duct Assembly, Windshield Deflector, RHD 		$149.98 1
2 703156
Screw/Washer M6x18 Chrome Free
IN STOCK 		$0.82 4
3 703068
4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP 		$0.12 8
4 707135
SCREW 4.2 X 13 SELF TAPPING
IN STOCK 		$0.11 8
5 4G4318C491AJ
Grille - Window Defrost 		$642.89 2
6 6G3379231AC
Screw, M3.5 x 38, Flat Hd Csk
IN STOCK 		$0.50 4
7 4G43C046B80AC
SE I/PNL DEF OPG GRL 		$9.82 2
8 4G4319E658AC
Hose, A/C Window Demister 		$59.32 2
9 4G4319E680AD
Connector, A/C Demister Hose 		$9.82 2
10 CD3319C804AA
Duct, Hvac Outer, RH 		$167.52 1
11 CD3319C805AA
Duct, Hvac Outer, LH 		$167.52 1
12 CD3318D404BA
Duct Assy, Heater Air Distributor, RHD 		$196.97 1
13 6G33RA610123AA
Pop Rivet, Aluminium, 4.8 		$0.52 A/R
14 DD33014K96BA
Duct Assy, Aircon Foot Well, RH, RHD 		$64.38 1
15 DD33014K97BA
Duct Assy, Aircon Foot Well, LH, RHD 		$64.38 1
16 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
Pack of 10
IN STOCK 		$2.80 2
17 8D3360302BB
Clip, Fir Tree, Flat Head 		$0.87 2
18 7G43014K00AA
Plug Assembly, Foot Duct Outlet 		$13.91 2
19 4G4317A873AA
RIVET 4.8 x 12 BLND LRG AL 		$1.94 2
