Name: Wiper Linkage
Rating: 5.0 (1 reviews)

Wiper Linkage of Aston Martin Aston Martin Vanquish (2012+)

View All

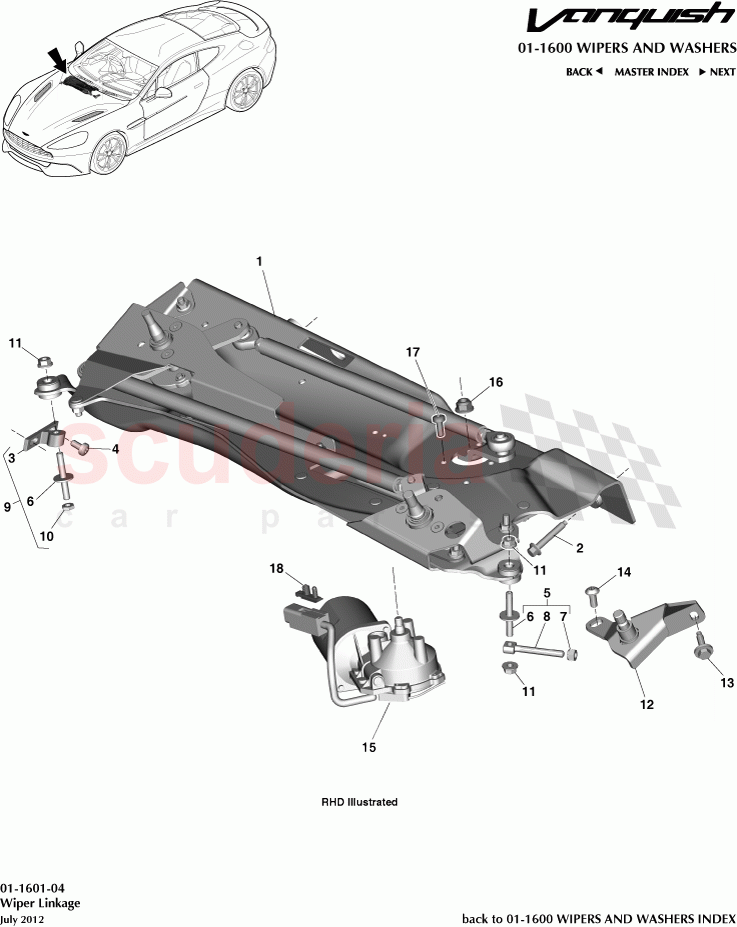

Aston Martin Vanquish (2012+) - Wiper Linkage

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG4317504DB	LINKAGE ASY W/S WPR	$1,770.01	To Order

Photo	Part No	Description	Price (each)	Stock
	702946	Bolt, M6 x 35, Hex Head	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DG4317510AA	Outboard Mount, Wiper Linkage	$39.87	To Order

Photo	Part No	Description	Price (each)	Stock
	702293	Screw, M6 x 12mm, Pan Head	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DG4317506AA	Adjuster Assembly, Inboard	$22.75	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4317508AA	Adjuster	$12.48	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4317505AB	Eyebolt, Wiper Mechanism	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4317507AA	Adjuster Assembly, Outboard	$38.44	To Order

Photo	Part No	Description	Price (each)	Stock
	702994	Nut, M6, Hex Head Thin	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DG4317500DA	Slave Spindle Bracket, RHD	$574.02	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	$5.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AG4367350AA	WIPER MOTOR TRICO	$528.13	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	705133	Screw, Pan Head Torx, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430110042	Retainer, Connector	$0.37	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DG4317504CA	Linkage Assembly, Windscreen Wiper, LHD	DG4317504CA Linkage Assembly, Windscreen Wiper, LHD Includes Wiper Motor	$1,513.72	1
-	DG4317500CA	Slave Spindle Bracket, LHD	DG4317500CA Slave Spindle Bracket, LHD	$574.02	1
1	DG4317504DB	LINKAGE ASY W/S WPR	DG4317504DB LINKAGE ASY W/S WPR Includes Wiper Motor	$1,770.01	1
2	702946	Bolt, M6 x 35, Hex Head IN STOCK	702946 Bolt, M6 x 35, Hex Head IN STOCK	$0.80	2
3	DG4317510AA	Outboard Mount, Wiper Linkage	DG4317510AA Outboard Mount, Wiper Linkage	$39.87	1
4	702293	Screw, M6 x 12mm, Pan Head IN STOCK	702293 Screw, M6 x 12mm, Pan Head IN STOCK	$0.29	2
5	DG4317506AA	Adjuster Assembly, Inboard	DG4317506AA Adjuster Assembly, Inboard	$22.75	1
6	DG4317508AA	Adjuster	DG4317508AA Adjuster	$12.48	2
7	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 5	-	1	Enquire
8	DG4317505AB	Eyebolt, Wiper Mechanism	DG4317505AB Eyebolt, Wiper Mechanism	-	1	Enquire
9	DG4317507AA	Adjuster Assembly, Outboard	DG4317507AA Adjuster Assembly, Outboard	$38.44	1
10	702994	Nut, M6, Hex Head Thin IN STOCK	702994 Nut, M6, Hex Head Thin IN STOCK	$0.50	1
11	703749	Nut, M6, Hex Flange Head IN STOCK	703749 Nut, M6, Hex Flange Head IN STOCK	$0.71	3
12	DG4317500DA	Slave Spindle Bracket, RHD	DG4317500DA Slave Spindle Bracket, RHD	$574.02	1
13	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20) IN STOCK	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10 IN STOCK	$5.88	2
14	703149	SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	703149 SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	$0.75	1
15	AG4367350AA	WIPER MOTOR TRICO	AG4367350AA WIPER MOTOR TRICO	$528.13	1
16	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	$1.25	1
17	705133	Screw, Pan Head Torx, M6 x 16	705133 Screw, Pan Head Torx, M6 x 16	-	3	Enquire
18	6G430110042	Retainer, Connector IN STOCK	6G430110042 Retainer, Connector IN STOCK	$0.37	1
