Radio Antennas, 14.5MY of Aston Martin Aston Martin Vanquish (2012+)

View All

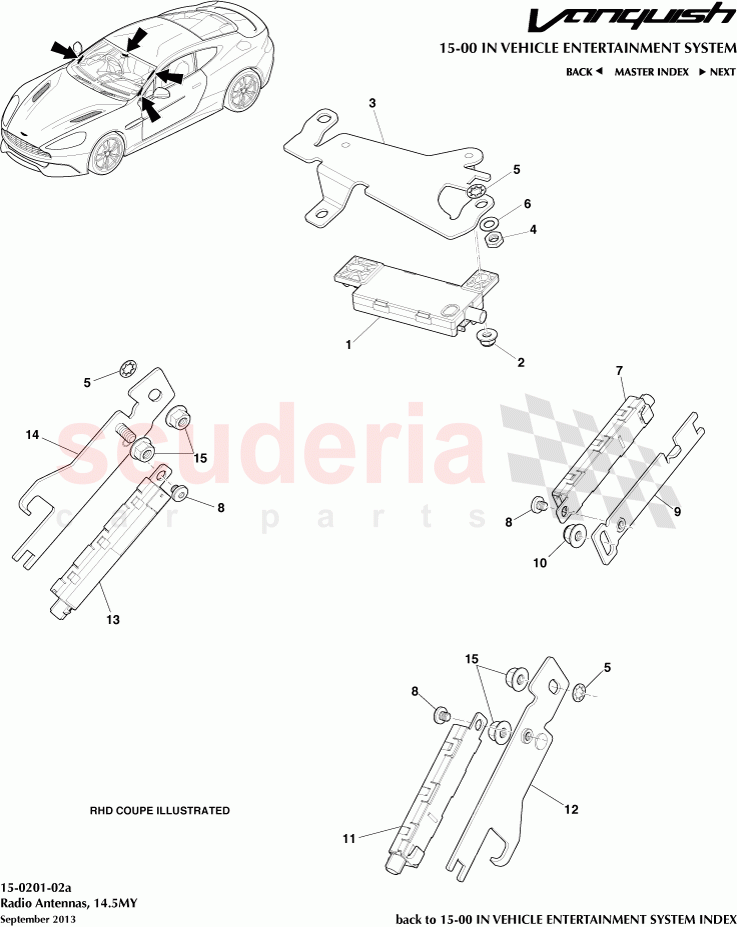

Aston Martin Vanquish (2012+) - Radio Antennas, 14.5MY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4318C847AA	Antenna Amplifier (Am/Fm) (FM2 TMC)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702522	M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3318C987DB	Bracket, Header Pod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702994	Nut, M6, Hex Head Thin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704620	Washer, Internal Shakeproof, M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED3318C847BA	Antenna, DAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43487464AA	Screw and Washer, M5 x 6, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3318C987BB	Bracket, DAB Antenna, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED3318C847AA	Antenna Amplifier, AM/FM1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED3318C987DA	Bracket, Amplifier, A Pillar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED3318C847CA	Antenna Amplifier, FM2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED3318C987CA	Bracket, Amplifier, A Pillar, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DD3318C987AB	Bracket, DAB Antenna, RH	DD3318C987AB Bracket, DAB Antenna, RH LHD Coupe	-	1	Enquire
-	ED3318C987AB	Bracket, DAB Antenna	ED3318C987AB Bracket, DAB Antenna Volante	-	1	Enquire
1	9G4318C847AA	Antenna Amplifier (Am/Fm) (FM2 TMC)	9G4318C847AA Antenna Amplifier (Am/Fm) (FM2 TMC)	-	1	Enquire
2	702522	M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT	702522 M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT	-	2	Enquire
3	CD3318C987DB	Bracket, Header Pod	CD3318C987DB Bracket, Header Pod	-	1	Enquire
4	702994	Nut, M6, Hex Head Thin	702994 Nut, M6, Hex Head Thin	-	2	Enquire
5	704620	Washer, Internal Shakeproof, M6	704620 Washer, Internal Shakeproof, M6	-	4	Enquire
6	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
7	ED3318C847BA	Antenna, DAB	ED3318C847BA Antenna, DAB	-	1	Enquire
8	8G43487464AA	Screw and Washer, M5 x 6, Pan Head	8G43487464AA Screw and Washer, M5 x 6, Pan Head	-	3	Enquire
9	DD3318C987BB	Bracket, DAB Antenna, LH	DD3318C987BB Bracket, DAB Antenna, LH RHD Coupe	-	1	Enquire
10	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	1	Enquire
11	ED3318C847AA	Antenna Amplifier, AM/FM1	ED3318C847AA Antenna Amplifier, AM/FM1	-	1	Enquire
12	ED3318C987DA	Bracket, Amplifier, A Pillar, LH	ED3318C987DA Bracket, Amplifier, A Pillar, LH	-	1	Enquire
13	ED3318C847CA	Antenna Amplifier, FM2	ED3318C847CA Antenna Amplifier, FM2	-	1	Enquire
14	ED3318C987CA	Bracket, Amplifier, A Pillar, RH	ED3318C987CA Bracket, Amplifier, A Pillar, RH	-	1	Enquire
15	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	4	Enquire
