Windscreen Washer System

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Windscreen Washer System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G4317B613BA Reservoir & Motor Assembly $469.42 To Order
Photo Part No Description Price (each) Stock
702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) $5.88 IN STOCK
Photo Part No Description Price (each) Stock
4G430110305 Pump Headlight Wash $115.55 IN STOCK
Photo Part No Description Price (each) Stock
1X4313K188AA Grommet, Sealing Headlamp Pump $7.56 IN STOCK
Photo Part No Description Price (each) Stock
4G433711549 WINDSCREEN WASHER MOTOR/PUMP $316.93 IN STOCK
Photo Part No Description Price (each) Stock
1X4317673AA Grommet, Sealing Windscreen Wash Pump $7.33 IN STOCK
Photo Part No Description Price (each) Stock
4G433710236 Water Low Level Sensor $63.61 IN STOCK
Photo Part No Description Price (each) Stock
4G433710237 Seal, Low Level Sensor $2.12 To Order
Photo Part No Description Price (each) Stock
4G4317614AB Bracket Assembly, Windshield Washer Reservoir Mounting $29.42 To Order
Photo Part No Description Price (each) Stock
4G4313K175BA Washer Reservoir Filler Neck Assembly $100.04 IN STOCK
Photo Part No Description Price (each) Stock
701562 Clamp, Worm Drive 30-45mm $1.39 To Order
Photo Part No Description Price (each) Stock
DG4317C625AD Bracket, Windshield Washer Filler Neck $30.11 To Order
Photo Part No Description Price (each) Stock
703266 Screw M6 x 10 Pan Head Torx $0.91 IN STOCK
Photo Part No Description Price (each) Stock
707147 NUT-M5 HEX FLG GRD 8 $0.45 To Order
Photo Part No Description Price (each) Stock
DG4317Z605AB Tube Assembly, Windscreen Wash $123.98 To Order
Photo Part No Description Price (each) Stock
4G4317666BA Jet Assembly, Windscreen Washer, Non Heated $21.32 IN STOCK
Photo Part No Description Price (each) Stock
701617 Clip, 7.0 x 6.0 x2.0 $0.86 To Order
Photo Part No Description Price (each) Stock
702518 CLIP 8.0X11 PIPE EDGE STL $0.86 To Order
Photo Part No Description Price (each) Stock
4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) $69.55 IN STOCK
View All

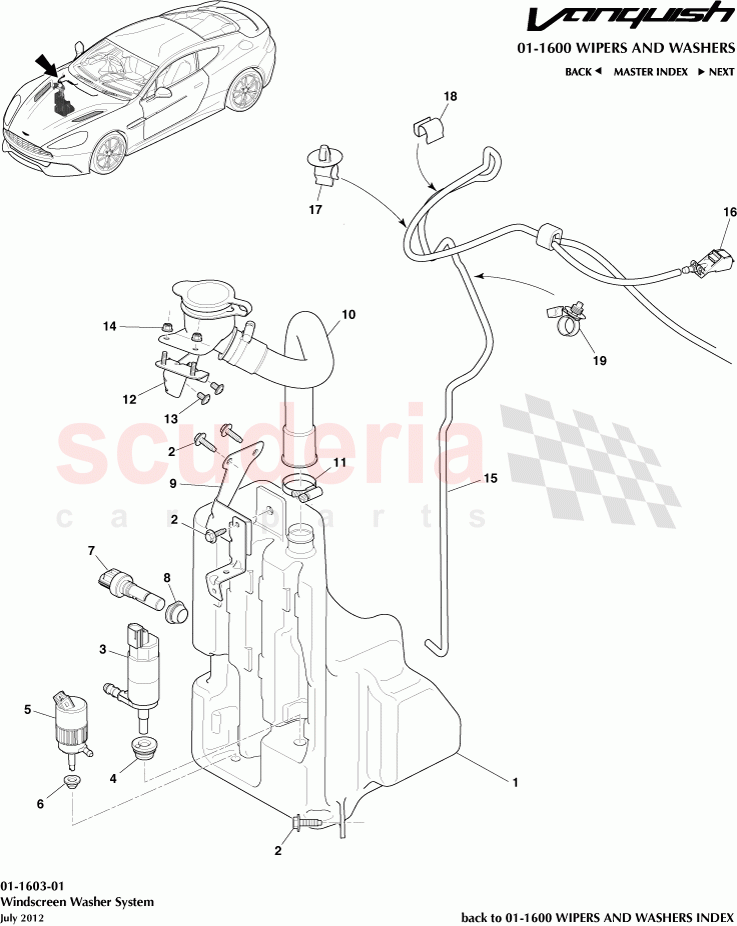

Windscreen Washer System of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G43M8B17BA
Fluid, Windshield Washer, 1.0 Litre 		- A/R Enquire
1 4G4317B613BA
Reservoir & Motor Assembly 		$469.42 1
2 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10
IN STOCK 		$5.88 5
3 4G430110305
Pump Headlight Wash
IN STOCK 		$115.55 1
4 1X4313K188AA
Grommet, Sealing Headlamp Pump
IN STOCK 		$7.56 1
5 4G433711549
WINDSCREEN WASHER MOTOR/PUMP
IN STOCK 		$316.93 1
6 1X4317673AA
Grommet, Sealing Windscreen Wash Pump
IN STOCK 		$7.33 1
7 4G433710236
Water Low Level Sensor
IN STOCK 		$63.61 1
8 4G433710237
Seal, Low Level Sensor 		$2.12 1
9 4G4317614AB
Bracket Assembly, Windshield Washer Reservoir Mounting 		$29.42 1
10 4G4313K175BA
Washer Reservoir Filler Neck Assembly
IN STOCK 		$100.04 1
11 701562
Clamp, Worm Drive 30-45mm 		$1.39 2
12 DG4317C625AD
Bracket, Windshield Washer Filler Neck 		$30.11 1
13 703266
Screw M6 x 10 Pan Head Torx
IN STOCK 		$0.91 2
14 707147
NUT-M5 HEX FLG GRD 8 		$0.45 2
15 DG4317Z605AB
Tube Assembly, Windscreen Wash 		$123.98 1
16 4G4317666BA
Jet Assembly, Windscreen Washer, Non Heated
IN STOCK 		$21.32 2
17 701617
Clip, 7.0 x 6.0 x2.0 		$0.86 1
18 702518
CLIP 8.0X11 PIPE EDGE STL
Qty 3 for 14MY on 		$0.86 4
19 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100)
Pack of 100
IN STOCK 		$69.55 1
