Speakers B&O of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Speakers B&O

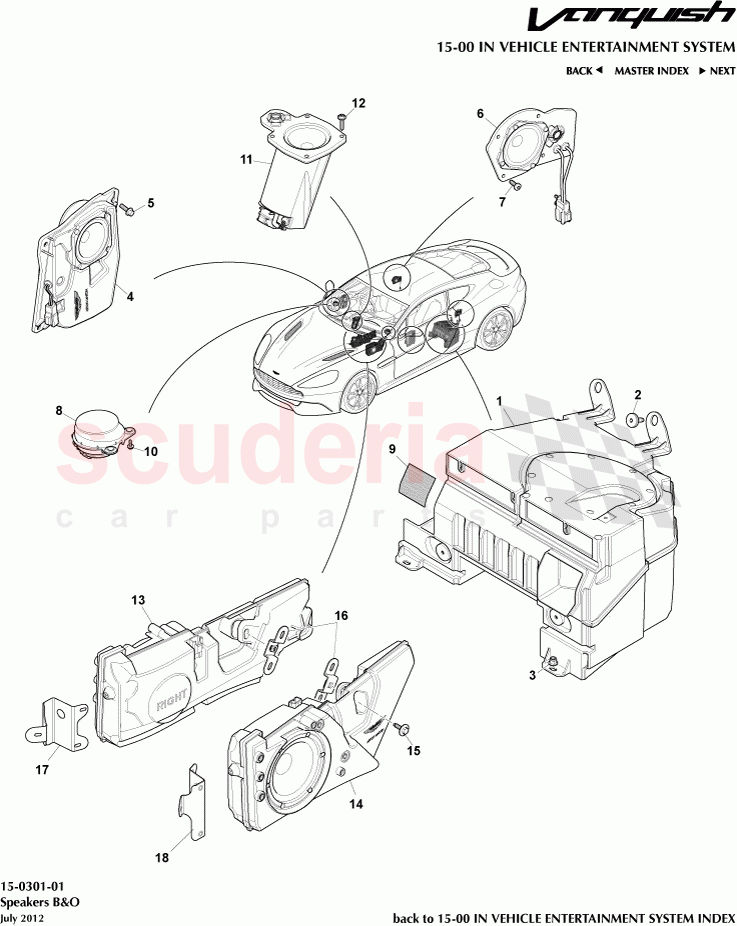

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD3318C956AA	Sub Woofer & Enclosure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D336696XBA	Speaker Box, Front Door, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3346684AA	DB9 COUPE RR SPEAKER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703735	Screw, M5 x 12, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3318D801BC	Acoustic Lens Tweeter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43AWR464CAA	Velcro, Hook, Black 50mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3370451AA	Speaker, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703736	Screw Self Tapping, 4.2 x 19, Washer Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336696XAA	Speaker Box, Foot Well, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336696YAA	Speaker Box, Foot Well, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3319080AA	Mounting Bracket, Loudspeaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D332B100AC	Bracket, Foot Well Speaker Box, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432B099AD	Mounting Bracket, Accelerator Scuff Plate, LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9D336696YBA	Speaker Box, Front Door, LH	9D336696YBA Speaker Box, Front Door, LH	-	1	Enquire
-	9D3346684BA	Speaker, Rear, RH Volante	9D3346684BA Speaker, Rear, RH Volante Volante	-	1	Enquire
-	9D3346685AA	DB9 COUPE RR SPEAKER LH	9D3346685AA DB9 COUPE RR SPEAKER LH Coupe	-	1	Enquire
-	9D3346685BA	Speaker, Rear, LH Volante	9D3346685BA Speaker, Rear, LH Volante Volante	-	1	Enquire
-	CD4318D801AA	Acoustic Lens Tweeter	CD4318D801AA Acoustic Lens Tweeter Iridium	-	2	Enquire
1	CD3318C956AA	Sub Woofer & Enclosure	CD3318C956AA Sub Woofer & Enclosure	-	1	Enquire
2	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	2	Enquire
3	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
4	9D336696XBA	Speaker Box, Front Door, RH	9D336696XBA Speaker Box, Front Door, RH	-	1	Enquire
5	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	8	Enquire
6	9D3346684AA	DB9 COUPE RR SPEAKER RH	9D3346684AA DB9 COUPE RR SPEAKER RH Coupe	-	1	Enquire
7	703735	Screw, M5 x 12, Pan Head	703735 Screw, M5 x 12, Pan Head	-	8	Enquire
8	CD3318D801BC	Acoustic Lens Tweeter	CD3318D801BC Acoustic Lens Tweeter Black	-	2	Enquire
9	4G43AWR464CAA	Velcro, Hook, Black 50mm	4G43AWR464CAA Velcro, Hook, Black 50mm 1 Roll	-	1	Enquire
10	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	705464 Screw, 4.2 x 16, Washer Head, Self Tapping	-	6	Enquire
11	CD3370451AA	Speaker, Centre	CD3370451AA Speaker, Centre	-	1	Enquire
12	703736	Screw Self Tapping, 4.2 x 19, Washer Head	703736 Screw Self Tapping, 4.2 x 19, Washer Head	-	4	Enquire
13	CD336696XAA	Speaker Box, Foot Well, RH	CD336696XAA Speaker Box, Foot Well, RH	-	1	Enquire
14	CD336696YAA	Speaker Box, Foot Well, LH	CD336696YAA Speaker Box, Foot Well, LH	-	1	Enquire
15	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	4	Enquire
16	9D3319080AA	Mounting Bracket, Loudspeaker	9D3319080AA Mounting Bracket, Loudspeaker	-	2	Enquire
17	9D332B100AC	Bracket, Foot Well Speaker Box, RH	9D332B100AC Bracket, Foot Well Speaker Box, RH	-	1	Enquire
18	4G432B099AD	Mounting Bracket, Accelerator Scuff Plate, LH	4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH	-	1	Enquire
