Exhaust System of Aston Martin Aston Martin Vanquish (2001-2007)

View All

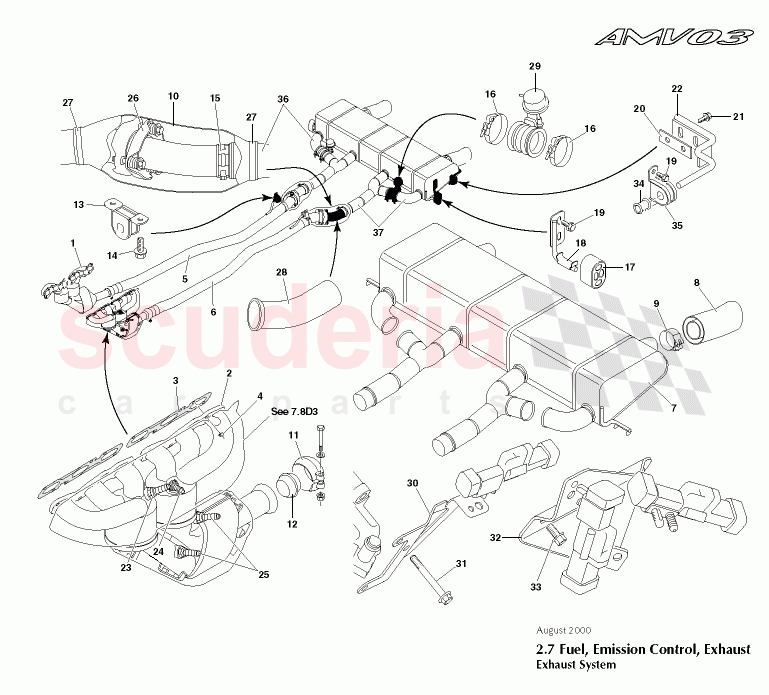

Aston Martin Vanquish (2001-2007) - Exhaust System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91967	EXH MANIFOLD ASSY-LH	Enquire	To Order
	91965	EXH MANIFOLD ASSY-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91968	EXH MANIFOLD ASSY-RH	Enquire	To Order
	91966	EXH MANIFOLD ASSY-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510003	Gasket Exhaust Manifold	Enquire	To Order
	4G433510003	Gasket Exhaust Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697775PK	Nut M8 Hex Flange Head (Pack of 10)	Enquire	To Order
	5R13350692AA	EXHAUST SYSTEM ASSY	Enquire	To Order
	1R12350692AF	EXHAUST SYSTEM ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12352558AB	EXHAUST-INTERMEDIATE PIPE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123510289	Muffler assy, exhaust, rear	Enquire	To Order
	1R12352559AB	EXHAUST-INTERMEDIATE PIPE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13352560AA	EXHAUST- MUFFLER ASSY	Enquire	To Order
	5R13352560AA	EXHAUST- MUFFLER ASSY	Enquire	To Order
	5R13352560AA	EXHAUST- MUFFLER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12353922AB	ASSY TAIL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12354312AA	INSULATION SOCK - DECOUPLER - RH	Enquire	To Order
	1R12353270AA	BAND CLAMP TAIL PIPE 63.5 x 20 WIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12354313AA	INSULATION SOCK - DECOUPLER LH	Enquire	To Order
	1R12352561AB	EXHAUST-FITTING KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704786	BAND CLAMP 63.5 DIA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698906	Olive, spherical, 63.5dia	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12352761AC	ASSY MOUNTING RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12352762AB	BAND CLAMP-EXHAUST 63.9 x 25mm WIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12352763AA	BAND CLAMP - EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12352096AB	REAR HANGER-EXHAUST RH	Enquire	To Order
	3550826	INSULATOR RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12352097AB	REAR HANGER-EXHAUST LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12352767AA	Spacer, ceramic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12354932AA	REAR HANGER - EXHAUST - REAR RH	Enquire	To Order
	703730	Screw, M8 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12354933AA	REAR HANGER EXHAUST REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910173	HEGO SENSOR-FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123510714	EXHAUST DECOUP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12353224AA	BAND CLAMP - INSULATION 70 TO 90	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12353347AA	EXHAUST INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13352560AA	EXHAUST- MUFFLER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R1311225AA	BRACKET HEGO CMS RH	Enquire	To Order
	4R1311225CA	BRACKET REAR HEGO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699131	BOLT M8 x 70 x 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R1311225BA	BRACKET HEGO CMS LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697774	BOLT M8 x 23 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12354923AA	Bush, exhaust rear mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12352761AC	ASSY MOUNTING RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12353754AC	INPUT PIPE INSUL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12353755AC	INPUT PIPE INSUL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91967	EXH MANIFOLD ASSY-LH	91967 EXH MANIFOLD ASSY-LH Vanquish S From (V) 501506	-	1	Enquire
1	91965	EXH MANIFOLD ASSY-LH	91965 EXH MANIFOLD ASSY-LH	-	1	Enquire
2	91968	EXH MANIFOLD ASSY-RH	91968 EXH MANIFOLD ASSY-RH Vanquish S From (V) 501506	-	1	Enquire
2	91966	EXH MANIFOLD ASSY-RH	91966 EXH MANIFOLD ASSY-RH	-	1	Enquire
3	4G433510003	Gasket Exhaust Manifold	4G433510003 Gasket Exhaust Manifold Vanquish S From (V) 501506	-	4	Enquire
3	4G433510003	Gasket Exhaust Manifold	4G433510003 Gasket Exhaust Manifold	-	4	Enquire
4	697775PK	Nut M8 Hex Flange Head (Pack of 10)	697775PK Nut M8 Hex Flange Head (Pack of 10) Exhaust manifolds to cylinder heads	-	24	Enquire
4	5R13350692AA	EXHAUST SYSTEM ASSY	5R13350692AA EXHAUST SYSTEM ASSY Vanquish S From (V) 501506	-	1	Enquire
4	1R12350692AF	EXHAUST SYSTEM ASSY	1R12350692AF EXHAUST SYSTEM ASSY	-	1	Enquire
5	1R12352558AB	EXHAUST-INTERMEDIATE PIPE RH	1R12352558AB EXHAUST-INTERMEDIATE PIPE RH	-	1	Enquire
6	1R123510289	Muffler assy, exhaust, rear	1R123510289 Muffler assy, exhaust, rear Comprises items, 7, 16, & 29	-	1	Enquire
6	1R12352559AB	EXHAUST-INTERMEDIATE PIPE LH	1R12352559AB EXHAUST-INTERMEDIATE PIPE LH	-	1	Enquire
7	5R13352560AA	EXHAUST- MUFFLER ASSY	5R13352560AA EXHAUST- MUFFLER ASSY Vanquish S From (V) 501506	-	1	Enquire
7	5R13352560AA	EXHAUST- MUFFLER ASSY	5R13352560AA EXHAUST- MUFFLER ASSY Up to (V) 501285	-	1	Enquire
7	5R13352560AA	EXHAUST- MUFFLER ASSY	5R13352560AA EXHAUST- MUFFLER ASSY From (V) 501286	-	1	Enquire
8	1R12353922AB	ASSY TAIL PIPE	1R12353922AB ASSY TAIL PIPE	-	2	Enquire
9	1R12354312AA	INSULATION SOCK - DECOUPLER - RH	1R12354312AA INSULATION SOCK - DECOUPLER - RH RHD	-	1	Enquire
9	1R12353270AA	BAND CLAMP TAIL PIPE 63.5 x 20 WIDE	1R12353270AA BAND CLAMP TAIL PIPE 63.5 x 20 WIDE	-	2	Enquire
10	1R12354313AA	INSULATION SOCK - DECOUPLER LH	1R12354313AA INSULATION SOCK - DECOUPLER LH LHD	-	1	Enquire
10	1R12352561AB	EXHAUST-FITTING KIT	1R12352561AB EXHAUST-FITTING KIT	-	1	Enquire
11	704786	BAND CLAMP 63.5 DIA	704786 BAND CLAMP 63.5 DIA	-	2	Enquire
12	698906	Olive, spherical, 63.5dia	698906 Olive, spherical, 63.5dia	-	2	Enquire
13	1R12352761AC	ASSY MOUNTING RUBBER	1R12352761AC ASSY MOUNTING RUBBER	-	4	Enquire
14	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
15	1R12352762AB	BAND CLAMP-EXHAUST 63.9 x 25mm WIDE	1R12352762AB BAND CLAMP-EXHAUST 63.9 x 25mm WIDE	-	4	Enquire
16	1R12352763AA	BAND CLAMP - EXHAUST VALVE	1R12352763AA BAND CLAMP - EXHAUST VALVE	-	4	Enquire
17	1R12352096AB	REAR HANGER-EXHAUST RH	1R12352096AB REAR HANGER-EXHAUST RH	-	1	Enquire
17	3550826	INSULATOR RUBBER	3550826 INSULATOR RUBBER	-	2	Enquire
18	1R12352097AB	REAR HANGER-EXHAUST LH	1R12352097AB REAR HANGER-EXHAUST LH	-	1	Enquire
19	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	-	12	Enquire
20	1R12352767AA	Spacer, ceramic	1R12352767AA Spacer, ceramic	-	4	Enquire
21	1R12354932AA	REAR HANGER - EXHAUST - REAR RH	1R12354932AA REAR HANGER - EXHAUST - REAR RH	-	1	Enquire
21	703730	Screw, M8 x 16, Hex Flange Head	703730 Screw, M8 x 16, Hex Flange Head	-	4	Enquire
22	1R12354933AA	REAR HANGER EXHAUST REAR LH	1R12354933AA REAR HANGER EXHAUST REAR LH	-	1	Enquire
23	1R123910173	HEGO SENSOR-FRONT	1R123910173 HEGO SENSOR-FRONT	-	2	Enquire
24	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear	-	2	Enquire
25	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter	-	4	Enquire
26	1R123510714	EXHAUST DECOUP KIT	1R123510714 EXHAUST DECOUP KIT	-	2	Enquire
27	1R12353224AA	BAND CLAMP - INSULATION 70 TO 90	1R12353224AA BAND CLAMP - INSULATION 70 TO 90	-	4	Enquire
28	1R12353347AA	EXHAUST INTERMEDIATE PIPE	1R12353347AA EXHAUST INTERMEDIATE PIPE	-	2	Enquire
29	5R13352560AA	EXHAUST- MUFFLER ASSY	5R13352560AA EXHAUST- MUFFLER ASSY	-	2	Enquire
30	4R1311225AA	BRACKET HEGO CMS RH	4R1311225AA BRACKET HEGO CMS RH	-	1	Enquire
30	4R1311225CA	BRACKET REAR HEGO	4R1311225CA BRACKET REAR HEGO	-	1	Enquire
31	699131	BOLT M8 x 70 x 1.25	699131 BOLT M8 x 70 x 1.25	-	4	Enquire
32	4R1311225BA	BRACKET HEGO CMS LH	4R1311225BA BRACKET HEGO CMS LH	-	1	Enquire
33	697774	BOLT M8 x 23 FLG	697774 BOLT M8 x 23 FLG	-	4	Enquire
34	1R12354923AA	Bush, exhaust rear mount	1R12354923AA Bush, exhaust rear mount	-	2	Enquire
35	1R12352761AC	ASSY MOUNTING RUBBER	1R12352761AC ASSY MOUNTING RUBBER	-	2	Enquire
36	1R12353754AC	INPUT PIPE INSUL RH	1R12353754AC INPUT PIPE INSUL RH RHD	-	1	Enquire
37	1R12353755AC	INPUT PIPE INSUL	1R12353755AC INPUT PIPE INSUL LHD	-	1	Enquire
