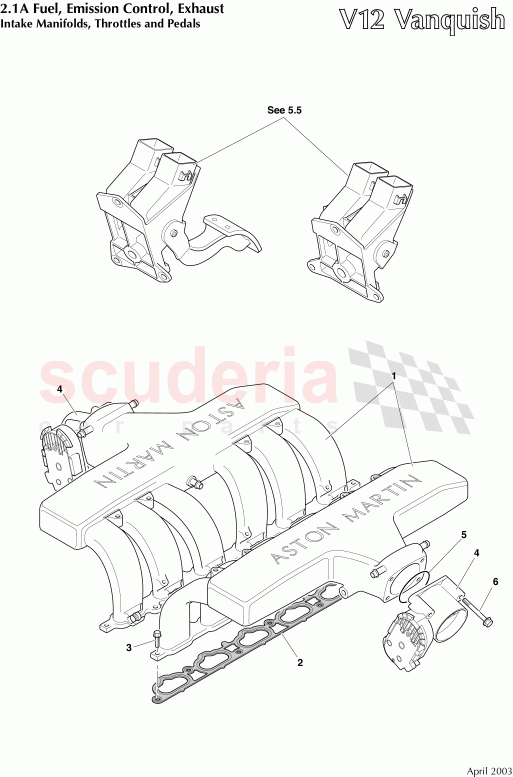

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R20810077PK	Gasket-INL Manifold/HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120810079	Throttle Body 68mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

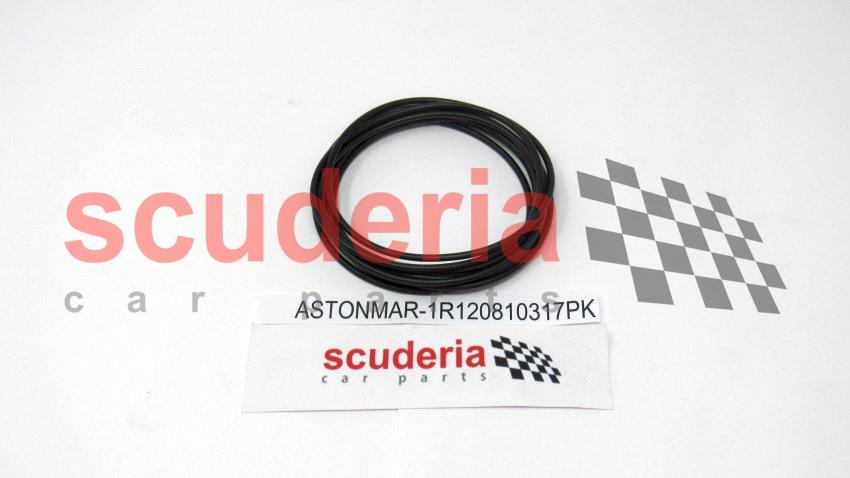

	1R120810317PK	O Ring (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697770	BOLT M6	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	5R139424AA	INTAKE MANIFOLD ASSEMBLY	5R139424AA INTAKE MANIFOLD ASSEMBLY Vanquish S From (V) 501506	-	2	Enquire
1	5R139424AA	INTAKE MANIFOLD ASSEMBLY	5R139424AA INTAKE MANIFOLD ASSEMBLY	-	2	Enquire
2	1R20810077PK	Gasket-INL Manifold/HD	1R20810077PK Gasket-INL Manifold/HD	-	2	Enquire
3	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold Inlet manifolds to cylinder head	-	14	Enquire
3	W701520S437	Bolt, flg, M6 X 47	W701520S437 Bolt, flg, M6 X 47 Inlet manifolds to cylinder head	-	14	Enquire
4	1R120810079	Throttle Body 68mm	1R120810079 Throttle Body 68mm	-	2	Enquire
5	1R120810317PK	O Ring (Pack of 10)	1R120810317PK O Ring (Pack of 10) Throttle body to intake	-	2	Enquire
6	697770	BOLT M6	697770 BOLT M6 Throttle body to intake	-	8	Enquire
