Evaporative Emission System of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Evaporative Emission System

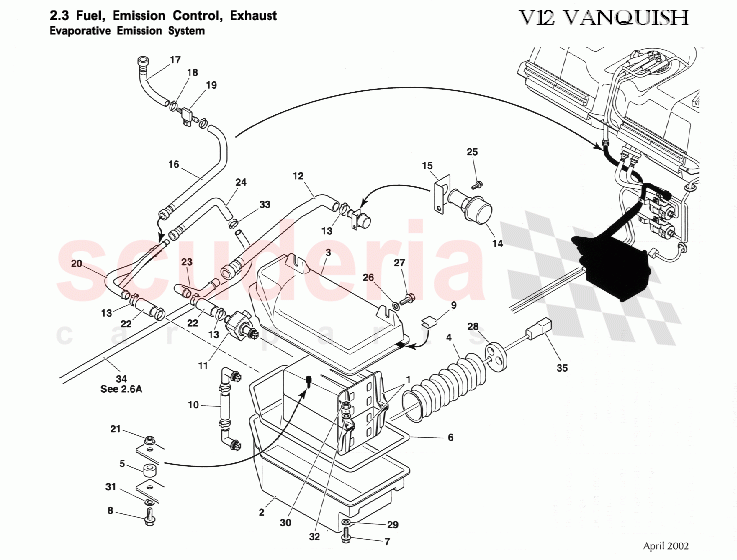

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R123410228	CARBON CANNISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342549AB	ENCLOSURE CARBON CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342550AC	LID - ENCLOSURE CARBON CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342717AB	GAITER - CARBON CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342787AB	SPACER - CARBON CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700009	SEALANT STRIP CANISTER BOX/LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697636	M5 x 20 FLG HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R139C098AB	BRACKET EVAP CANISTER	Enquire	To Order
	6R13346363AA	Quick connector, female	Enquire	To Order
	700008	EDGE CLIP - CANISTER BOX/LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12340696AD	HOSE - PRIMARY TO SECONDARY CANISTER	Enquire	To Order
	6R13340696AA	PIPE - PRIMARY TO SECONDARY CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123410666	VLV-EVAP CANNISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342957AF	HOSE - CANISTER TO PURGE FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342077AA	CLIP - HOSE 20/8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123410010	AIR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342956AD	HOSE-FLVV TO CANNISTER	Enquire	To Order
	6R13342956AA	HOSE - FLVV TO CANISTER	Enquire	To Order
	1R123410335	MTG BRACKET-CCV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485178	SENSOR-FTPT-REMOTE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343803AB	ASSY CONNECTOR CARBON CANISTER	Enquire	To Order
	6R13343803AA	ASSY CONNECTOR CARBON CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343923AA	Hose, close valve to filter pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343313AC	Pipe, filter to valve connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342705AG	PIPE - CAN TO B/HEAD JUMP HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699873	WASHER PLAIN 5.3x13	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697163	WASHER M8 X 20.5 PLAIN FORM C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699844	SCREW M8 x 30 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343584AA	BUNG - CARBON CAN PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699690	SEALING WASHER M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697431	NUT M4 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699762	SEALING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699845	WASHER M5x10x1 PLAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12344562AA	Clip, hose 17/8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12340701AH	PIPE - CONNECTOR TO B/HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343187AA	Hose, carbon canister connector	Enquire	To Order
	1R12372754AA	HARNESS - CARBON CANISTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R123410228	CARBON CANNISTER	1R123410228 CARBON CANNISTER	-	2	Enquire
2	1R12342549AB	ENCLOSURE CARBON CANISTER	1R12342549AB ENCLOSURE CARBON CANISTER	-	1	Enquire
3	1R12342550AC	LID - ENCLOSURE CARBON CANISTER	1R12342550AC LID - ENCLOSURE CARBON CANISTER	-	1	Enquire
4	1R12342717AB	GAITER - CARBON CANISTER	1R12342717AB GAITER - CARBON CANISTER	-	1	Enquire
5	1R12342787AB	SPACER - CARBON CANISTER	1R12342787AB SPACER - CARBON CANISTER	-	1	Enquire
6	700009	SEALANT STRIP CANISTER BOX/LID	700009 SEALANT STRIP CANISTER BOX/LID	-	4	Enquire
7	697636	M5 x 20 FLG HD	697636 M5 x 20 FLG HD	-	2	Enquire
8	695437	BOLT M6 x 35 HEX FLG GRD 8 8 ZINC PLATE	695437 BOLT M6 x 35 HEX FLG GRD 8 8 ZINC PLATE	-	1	Enquire
9	6R139C098AB	BRACKET EVAP CANISTER	6R139C098AB BRACKET EVAP CANISTER From (V) 501949	-	1	Enquire
9	6R13346363AA	Quick connector, female	6R13346363AA Quick connector, female From (V) 501949	-	2	Enquire
9	700008	EDGE CLIP - CANISTER BOX/LID	700008 EDGE CLIP - CANISTER BOX/LID	-	4	Enquire
10	1R12340696AD	HOSE - PRIMARY TO SECONDARY CANISTER	1R12340696AD HOSE - PRIMARY TO SECONDARY CANISTER Up to (V) 501948	-	1	Enquire
10	6R13340696AA	PIPE - PRIMARY TO SECONDARY CANISTER	6R13340696AA PIPE - PRIMARY TO SECONDARY CANISTER From (V) 501949	-	1	Enquire
11	1R123410666	VLV-EVAP CANNISTER	1R123410666 VLV-EVAP CANNISTER	-	1	Enquire
12	1R12342957AF	HOSE - CANISTER TO PURGE FILTER	1R12342957AF HOSE - CANISTER TO PURGE FILTER	-	1	Enquire
13	1R12342077AA	CLIP - HOSE 20/8	1R12342077AA CLIP - HOSE 20/8	-	5	Enquire
14	1R123410010	AIR FILTER	1R123410010 AIR FILTER	-	1	Enquire
15	1R12342956AD	HOSE-FLVV TO CANNISTER	1R12342956AD HOSE-FLVV TO CANNISTER Incl items 16 - 19 Up to (V) 501948	-	1	Enquire
15	6R13342956AA	HOSE - FLVV TO CANISTER	6R13342956AA HOSE - FLVV TO CANISTER From (V) 501949	-	1	Enquire
15	1R123410335	MTG BRACKET-CCV	1R123410335 MTG BRACKET-CCV	-	1	Enquire
18	1R12342077AA	CLIP - HOSE 20/8	1R12342077AA CLIP - HOSE 20/8	-	4	Enquire
19	3485178	SENSOR-FTPT-REMOTE	3485178 SENSOR-FTPT-REMOTE	-	1	Enquire
20	1R12343803AB	ASSY CONNECTOR CARBON CANISTER	1R12343803AB ASSY CONNECTOR CARBON CANISTER Up to (V) 501948	-	1	Enquire
20	6R13343803AA	ASSY CONNECTOR CARBON CANISTER	6R13343803AA ASSY CONNECTOR CARBON CANISTER From (V) 501949	-	1	Enquire
21	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	1	Enquire
22	1R12343923AA	Hose, close valve to filter pipe	1R12343923AA Hose, close valve to filter pipe	-	1	Enquire
23	1R12343313AC	Pipe, filter to valve connector	1R12343313AC Pipe, filter to valve connector	-	1	Enquire
24	1R12342705AG	PIPE - CAN TO B/HEAD JUMP HOSE	1R12342705AG PIPE - CAN TO B/HEAD JUMP HOSE	-	1	Enquire
25	699873	WASHER PLAIN 5.3x13	699873 WASHER PLAIN 5.3x13	-	2	Enquire
26	697163	WASHER M8 X 20.5 PLAIN FORM C	697163 WASHER M8 X 20.5 PLAIN FORM C	-	2	Enquire
27	699844	SCREW M8 x 30 HEX	699844 SCREW M8 x 30 HEX	-	2	Enquire
28	1R12343584AA	BUNG - CARBON CAN PIPES	1R12343584AA BUNG - CARBON CAN PIPES	-	1	Enquire
29	699690	SEALING WASHER M5	699690 SEALING WASHER M5	-	2	Enquire
30	697431	NUT M4 NYLOC	697431 NUT M4 NYLOC	-	2	Enquire
31	699762	SEALING WASHER	699762 SEALING WASHER	-	1	Enquire
32	699845	WASHER M5x10x1 PLAIN	699845 WASHER M5x10x1 PLAIN	-	2	Enquire
33	1R12344562AA	Clip, hose 17/8	1R12344562AA Clip, hose 17/8	-	1	Enquire
34	1R12340701AH	PIPE - CONNECTOR TO B/HEAD	1R12340701AH PIPE - CONNECTOR TO B/HEAD	-	1	Enquire
35	1R12343187AA	Hose, carbon canister connector	1R12343187AA Hose, carbon canister connector From (V) 501949	-	1	Enquire
35	1R12372754AA	HARNESS - CARBON CANISTER	1R12372754AA HARNESS - CARBON CANISTER	-	1	Enquire
