Fuel Filler Pipe of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Fuel Filler Pipe

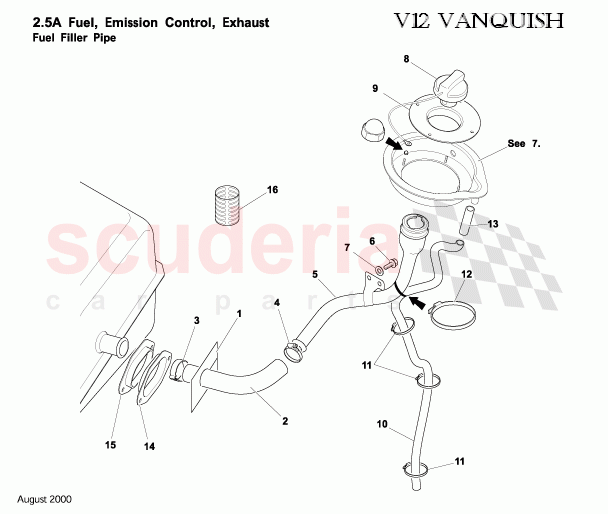

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12341853AC	SEAL - FUEL FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341161AD	HOSE-FILLER TO TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699598	CLAMP - STEPLESS DIA 30-36	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341157AA	CLAMP - HOSE FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12340683AE	FUEL FILLER PIPE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697163	WASHER M8 X 20.5 PLAIN FORM C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342718AE	ASSY CAP FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341054AE	GROMMET - FUEL FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342886AB	HOSE - FUEL GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342667AA	CLIP-FUEL FILLER GROMMET HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699233PK	TIE-STRAP HT RES-100	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342885AB	CONNECTOR ID 7x63	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343261AC	PROTECTOR - OUTER FUEL FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343262AC	PROTECTOR - INNER FUEL FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343982AA	FILTER DRAIN TUBE FUEL FILLER BOWL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	GG339030AA	CAP FUEL TANK	GG339030AA CAP FUEL TANK From (V) 501286 Up to (V) 501433	-	1	Enquire
-	4R12341054AA	GROMMET - FUEL FILLER PIPE	4R12341054AA GROMMET - FUEL FILLER PIPE From (V) 501434	-	1	Enquire
-	4R12340683AC	FUEL FILLER PIPE ASSY	4R12340683AC FUEL FILLER PIPE ASSY From (V) 501434	-	1	Enquire
-	GG339030AA	CAP FUEL TANK	GG339030AA CAP FUEL TANK From (V) 501434	-	1	Enquire
-	1R12341301AA	Grommet, in tank check valve	1R12341301AA Grommet, in tank check valve	-	1	Enquire
-	1R12340688AB	Check valve in filler pipe	1R12340688AB Check valve in filler pipe	-	1	Enquire
-	699598	CLAMP - STEPLESS DIA 30-36	699598 CLAMP - STEPLESS DIA 30-36	-	2	Enquire
1	1R12341853AC	SEAL - FUEL FILLER PIPE	1R12341853AC SEAL - FUEL FILLER PIPE	-	2	Enquire
2	1R12341161AD	HOSE-FILLER TO TANK	1R12341161AD HOSE-FILLER TO TANK	-	1	Enquire
3	699598	CLAMP - STEPLESS DIA 30-36	699598 CLAMP - STEPLESS DIA 30-36	-	1	Enquire
4	1R12341157AA	CLAMP - HOSE FILLER PIPE	1R12341157AA CLAMP - HOSE FILLER PIPE	-	1	Enquire
5	1R12340683AE	FUEL FILLER PIPE ASSY	1R12340683AE FUEL FILLER PIPE ASSY Up to (V) 501433	-	1	Enquire
6	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
7	697163	WASHER M8 X 20.5 PLAIN FORM C	697163 WASHER M8 X 20.5 PLAIN FORM C	-	2	Enquire
8	1R12342718AE	ASSY CAP FUEL FILLER	1R12342718AE ASSY CAP FUEL FILLER Up to (V) 501285	-	1	Enquire
9	1R12341054AE	GROMMET - FUEL FILLER PIPE	1R12341054AE GROMMET - FUEL FILLER PIPE Up to (V) 501433	-	1	Enquire
10	1R12342886AB	HOSE - FUEL GROMMET	1R12342886AB HOSE - FUEL GROMMET	-	1	Enquire
11	1R12342667AA	CLIP-FUEL FILLER GROMMET HOSE	1R12342667AA CLIP-FUEL FILLER GROMMET HOSE	-	2	Enquire
12	699233PK	TIE-STRAP HT RES-100	699233PK TIE-STRAP HT RES-100	-	1	Enquire
13	1R12342885AB	CONNECTOR ID 7x63	1R12342885AB CONNECTOR ID 7x63	-	1	Enquire
14	1R12343261AC	PROTECTOR - OUTER FUEL FILLER PIPE	1R12343261AC PROTECTOR - OUTER FUEL FILLER PIPE	-	1	Enquire
15	1R12343262AC	PROTECTOR - INNER FUEL FILLER PIPE	1R12343262AC PROTECTOR - INNER FUEL FILLER PIPE	-	1	Enquire
16	1R12343982AA	FILTER DRAIN TUBE FUEL FILLER BOWL	1R12343982AA FILTER DRAIN TUBE FUEL FILLER BOWL	-	1	Enquire
