Fuel Pipes 1 of Aston Martin Aston Martin Vanquish (2001-2007)

View All

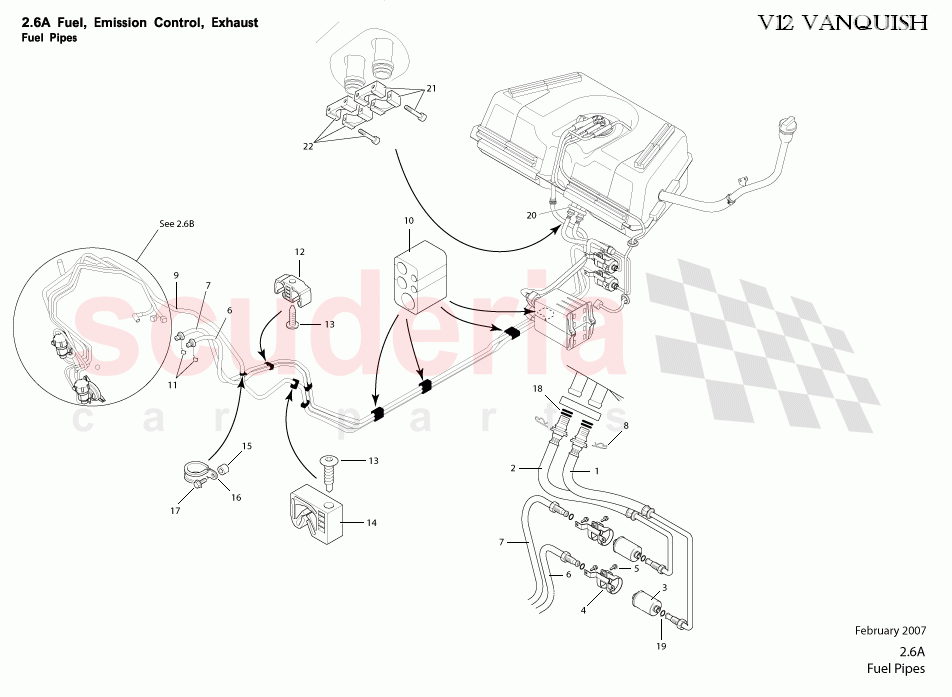

Aston Martin Vanquish (2001-2007) - Fuel Pipes 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12340708AG	FUEL LINE - TANK TO FILTER - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12340709AF	FUEL LINE - TANK TO FILTER - LH	Enquire	To Order
	8680221	INSULATION-FILTER MOUNTING BRACKET	Enquire	To Order
	1R123410014	F/FILTER & BRKT ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

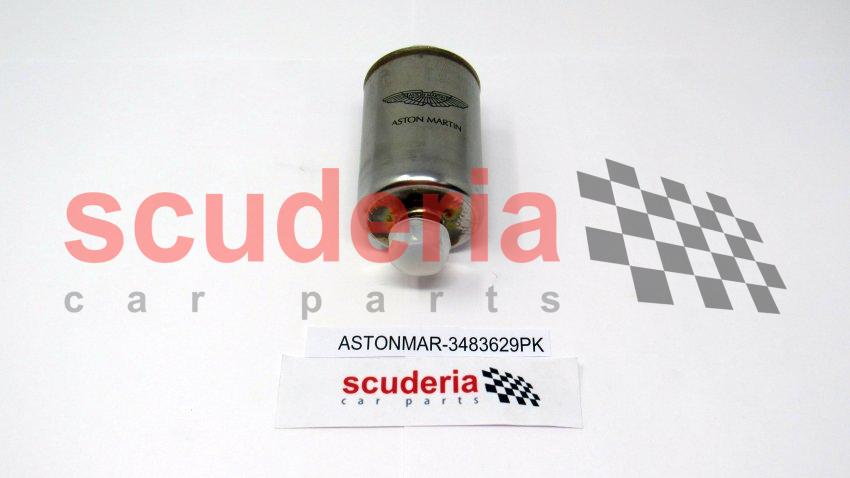

	3483629PK	Fuel Filter (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123410015	Bracket, fuel filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343314AE	PIPE-FUEL LINE FILTER TO BULKHEAD LH RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343315AD	PIPE-FUEL LINE FILTER TO BULKHEAD RH RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481446	CLIP-SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12340701AH	PIPE - CONNECTOR TO B/HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342027AD	MOUNT - FUEL/BRAKE PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123410084	CLIP AND CLAMP-12.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34121063AA	FUEL PIPE CLIP (2x10mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699276	RIVET-THREAD FORMING STEEL M6-DACROMET COATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781862	CLIP HARN STUD MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699675	SPACER - CLIP - FUEL PIPE FRONT BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699630	P CLIP 12x15xM6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700108	SCREW M6 x 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700141	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341852AD	Seal, fuel tank pipe	Enquire	To Order
	1R12342027AD	MOUNT - FUEL/BRAKE PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R1314C188AA	KIT SPRING CLIP ALIGNMENT AID LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R1314C188BA	KIT SPRING CLIP ALIGNMENT AID RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12340708AG	FUEL LINE - TANK TO FILTER - RH	1R12340708AG FUEL LINE - TANK TO FILTER - RH	-	1	Enquire
2	1R12340709AF	FUEL LINE - TANK TO FILTER - LH	1R12340709AF FUEL LINE - TANK TO FILTER - LH	-	1	Enquire
2	8680221	INSULATION-FILTER MOUNTING BRACKET	8680221 INSULATION-FILTER MOUNTING BRACKET	-	2	Enquire
2	1R123410014	F/FILTER & BRKT ASSY	1R123410014 F/FILTER & BRKT ASSY	-	2	Enquire
3	3483629PK	Fuel Filter (Pack of 2)	3483629PK Fuel Filter (Pack of 2)	-	2	Enquire
4	1R123410015	Bracket, fuel filter	1R123410015 Bracket, fuel filter	-	2	Enquire
5	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	4	Enquire
6	1R12343314AE	PIPE-FUEL LINE FILTER TO BULKHEAD LH RAIL	1R12343314AE PIPE-FUEL LINE FILTER TO BULKHEAD LH RAIL	-	1	Enquire
7	1R12343315AD	PIPE-FUEL LINE FILTER TO BULKHEAD RH RAIL	1R12343315AD PIPE-FUEL LINE FILTER TO BULKHEAD RH RAIL	-	1	Enquire
8	3481446	CLIP-SPRING	3481446 CLIP-SPRING	-	2	Enquire
9	1R12340701AH	PIPE - CONNECTOR TO B/HEAD	1R12340701AH PIPE - CONNECTOR TO B/HEAD	-	1	Enquire
10	1R12342027AD	MOUNT - FUEL/BRAKE PIPES	1R12342027AD MOUNT - FUEL/BRAKE PIPES	-	4	Enquire
11	1R123410084	CLIP AND CLAMP-12.5	1R123410084 CLIP AND CLAMP-12.5	-	2	Enquire
12	34121063AA	FUEL PIPE CLIP (2x10mm)	34121063AA FUEL PIPE CLIP (2x10mm)	-	2	Enquire
13	699276	RIVET-THREAD FORMING STEEL M6-DACROMET COATED	699276 RIVET-THREAD FORMING STEEL M6-DACROMET COATED	-	5	Enquire
14	3781862	CLIP HARN STUD MOUNT	3781862 CLIP HARN STUD MOUNT	-	3	Enquire
15	699675	SPACER - CLIP - FUEL PIPE FRONT BULKHEAD	699675 SPACER - CLIP - FUEL PIPE FRONT BULKHEAD	-	1	Enquire
16	699630	P CLIP 12x15xM6	699630 P CLIP 12x15xM6	-	1	Enquire
17	700108	SCREW M6 x 25	700108 SCREW M6 x 25	-	1	Enquire
18	700125	O ring	700125 O ring	-	4	Enquire
19	700141	O RING	700141 O RING	-	2	Enquire
20	1R12341852AD	Seal, fuel tank pipe	1R12341852AD Seal, fuel tank pipe	-	1	Enquire
20	1R12342027AD	MOUNT - FUEL/BRAKE PIPES	1R12342027AD MOUNT - FUEL/BRAKE PIPES	-	2	Enquire
21	6R1314C188AA	KIT SPRING CLIP ALIGNMENT AID LH	6R1314C188AA KIT SPRING CLIP ALIGNMENT AID LH	-	1	Enquire
22	6R1314C188BA	KIT SPRING CLIP ALIGNMENT AID RH	6R1314C188BA KIT SPRING CLIP ALIGNMENT AID RH	-	1	Enquire
