Fuel Tank of Aston Martin Aston Martin Vanquish (2001-2007)

View All

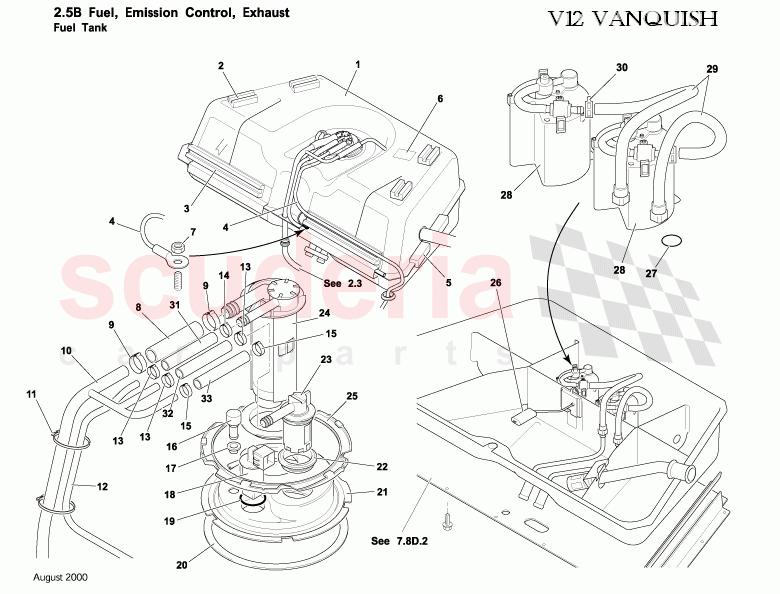

Aston Martin Vanquish (2001-2007) - Fuel Tank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12340132AG	Fuel tank body	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343219AA	Support, fuel tank, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342296AA	SUPPORT FUEL TANK TOP & FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370527AE	LEAD-FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342497AB	Support, fuel tank, side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9781468	LABEL-CLEANLINESS- FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700116	NUT M6 HEX FLG NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12340700AC	Hose, FLVV to 4 way	Enquire	To Order
	6R13340700AA	Hose, FLVV to 4 way	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342077AA	CLIP - HOSE 20/8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341147AD	Pipe, 4 way connector assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699209	Tie-wrap, heat proof	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12340698AA	HOSE - FLVV PORT TO VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342075AA	CLIP - HOSE 15/8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342074AA	CLIP - HOSE 13/8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341797AA	Clip, hose -12/8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343342AA	Blanking plug, elf flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123410012	Seal, tank pressure sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123410406	ASSY-CONNECTOR & O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123410013	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

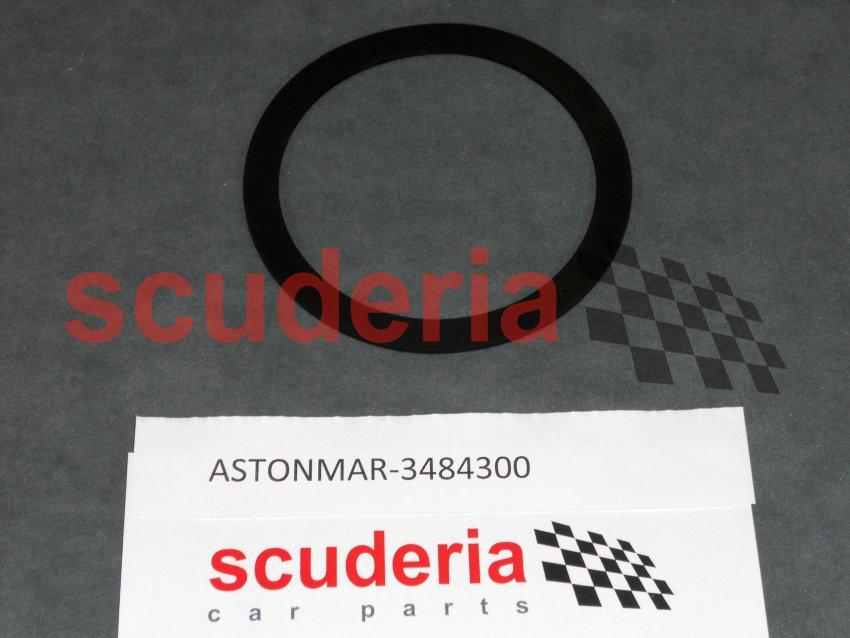

	3484300	EVAPOURATIVE LOSS FLANGE SEALING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341792AD	ELF ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485149	SEAL-ROLL OVER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485150	ROLL OVER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341146AA	VALVE-FUEL FLVV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481413	RING - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12341159AD	SENDER FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3485141	O RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

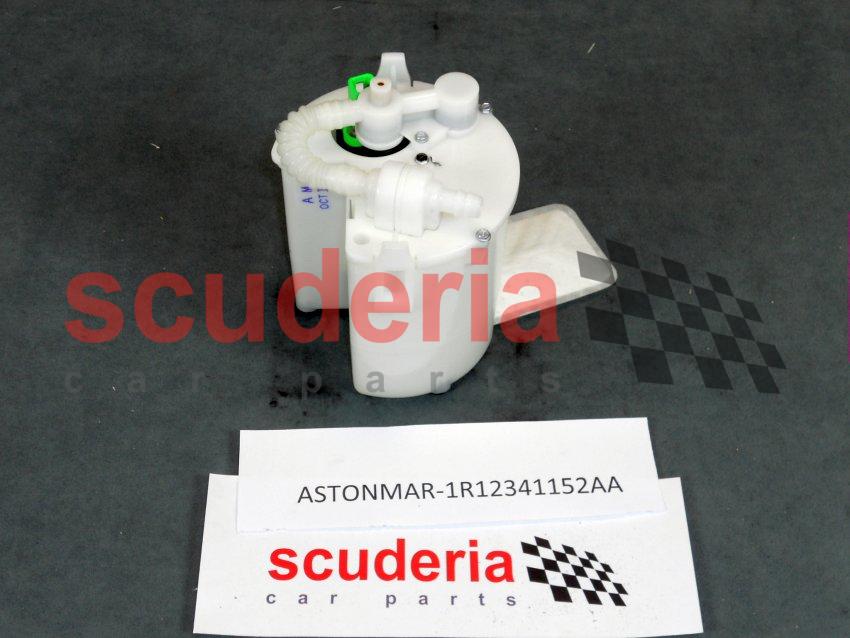

	1R12341152AA	Fuel Pump Module	Enquire	To Order
	1R12341152AA	Fuel Pump Module	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

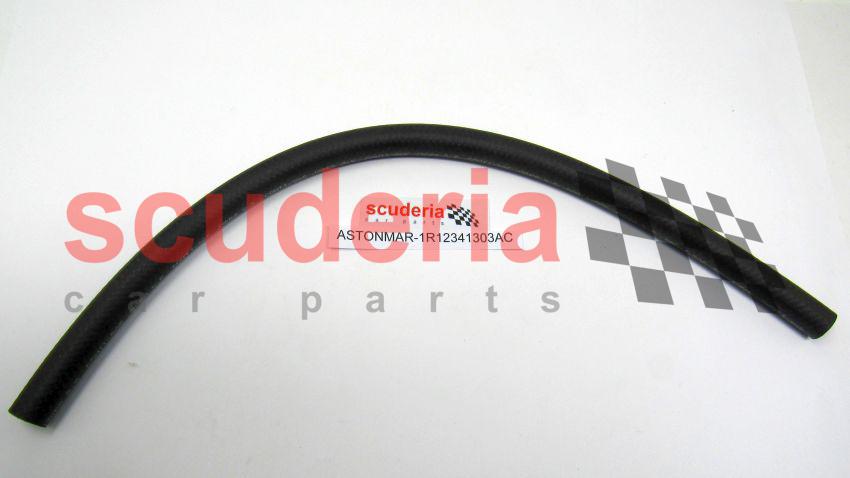

	1R12341303AC	HOSE - IN TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342075AA	CLIP - HOSE 15/8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12342095AA	HOSE-FLVV BREATHER CONNECTION	Enquire	To Order
	6R13342095AA	Hose, FLVV breather connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12340697AA	Hose, grade valve to 4 way conn	Enquire	To Order
	6R13340697AA	Hose, grade valve to 4 way conn	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13343187AA	Hose, carbon canister connector	Enquire	To Order
	1R12341796AB	Hose, vent to 4 way pipe	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1R123410699	FUEL TANK ASSY- WITHOUT FUEL PUMPS	1R123410699 FUEL TANK ASSY- WITHOUT FUEL PUMPS Up to (V) 501948	-	1	Enquire
-	6R13340682AA	FUEL TANK ASSY	6R13340682AA FUEL TANK ASSY Up to (V) 501948	-	1	Enquire
-	6R133410700	FUEL TANK ASSY- WITHOUT FUEL PUMPS	6R133410700 FUEL TANK ASSY- WITHOUT FUEL PUMPS From (V) 501949	-	1	Enquire
-	6R13340682AA	FUEL TANK ASSY	6R13340682AA FUEL TANK ASSY From (V) 501949	-	1	Enquire
-	1R12371298AD	HARNESS-FUEL TANK (INTERNAL)	1R12371298AD HARNESS-FUEL TANK (INTERNAL)	-	1	Enquire
-	1R12341346AA	O ring, fuel sender connector	1R12341346AA O ring, fuel sender connector	-	1	Enquire
-	1R12342074AA	CLIP - HOSE 13/8	1R12342074AA CLIP - HOSE 13/8	-	1	Enquire
-	1R123410406	ASSY-CONNECTOR & O RING	1R123410406 ASSY-CONNECTOR & O RING	-	1	Enquire
-	1R12341347AA	Clip, fuel sender connector	1R12341347AA Clip, fuel sender connector	-	1	Enquire
-	1R123410012	Seal, tank pressure sensor	1R123410012 Seal, tank pressure sensor	-	1	Enquire
-	LNG1624AA	Sensor, fuel tank pressure	LNG1624AA Sensor, fuel tank pressure	-	1	Enquire
-	1R12341793AA	Valve, inner tank vent	1R12341793AA Valve, inner tank vent	-	1	Enquire
-	699598	CLAMP - STEPLESS DIA 30-36	699598 CLAMP - STEPLESS DIA 30-36	-	2	Enquire
-	1R12341306AA	FITTING RAYMOND 10MM	1R12341306AA FITTING RAYMOND 10MM	-	2	Enquire
-	3481446	CLIP-SPRING	3481446 CLIP-SPRING	-	2	Enquire
-	699546	HOSE CLAMP	699546 HOSE CLAMP	-	2	Enquire
1	1R12340132AG	Fuel tank body	1R12340132AG Fuel tank body	-	1	Enquire
2	1R12343219AA	Support, fuel tank, top	1R12343219AA Support, fuel tank, top	-	4	Enquire
3	1R12342296AA	SUPPORT FUEL TANK TOP & FRONT	1R12342296AA SUPPORT FUEL TANK TOP & FRONT	-	2	Enquire
4	1R12370527AE	LEAD-FUEL TANK	1R12370527AE LEAD-FUEL TANK	-	1	Enquire
5	1R12342497AB	Support, fuel tank, side	1R12342497AB Support, fuel tank, side	-	2	Enquire
6	9781468	LABEL-CLEANLINESS- FUEL TANK	9781468 LABEL-CLEANLINESS- FUEL TANK	-	1	Enquire
7	700116	NUT M6 HEX FLG NYLOC	700116 NUT M6 HEX FLG NYLOC	-	1	Enquire
8	1R12340700AC	Hose, FLVV to 4 way	1R12340700AC Hose, FLVV to 4 way Up to (V) 501948	-	2	Enquire
8	6R13340700AA	Hose, FLVV to 4 way	6R13340700AA Hose, FLVV to 4 way From (V) 501949	-	2	Enquire
9	1R12342077AA	CLIP - HOSE 20/8	1R12342077AA CLIP - HOSE 20/8	-	2	Enquire
10	1R12341147AD	Pipe, 4 way connector assy	1R12341147AD Pipe, 4 way connector assy	-	1	Enquire
11	699209	Tie-wrap, heat proof	699209 Tie-wrap, heat proof	-	2	Enquire
12	1R12340698AA	HOSE - FLVV PORT TO VENT	1R12340698AA HOSE - FLVV PORT TO VENT	-	1	Enquire
13	1R12342075AA	CLIP - HOSE 15/8	1R12342075AA CLIP - HOSE 15/8	-	3	Enquire
14	1R12342074AA	CLIP - HOSE 13/8	1R12342074AA CLIP - HOSE 13/8	-	1	Enquire
15	1R12341797AA	Clip, hose -12/8	1R12341797AA Clip, hose -12/8	-	2	Enquire
16	1R12343342AA	Blanking plug, elf flange	1R12343342AA Blanking plug, elf flange	-	1	Enquire
17	1R123410012	Seal, tank pressure sensor	1R123410012 Seal, tank pressure sensor	-	1	Enquire
18	1R123410406	ASSY-CONNECTOR & O RING	1R123410406 ASSY-CONNECTOR & O RING NSS	-	1	Enquire
19	1R123410013	O RING	1R123410013 O RING NSS	-	1	Enquire
20	3484300	EVAPOURATIVE LOSS FLANGE SEALING RING	3484300 EVAPOURATIVE LOSS FLANGE SEALING RING	-	1	Enquire
21	1R12341792AD	ELF ASSY	1R12341792AD ELF ASSY	-	1	Enquire
22	3485149	SEAL-ROLL OVER VALVE	3485149 SEAL-ROLL OVER VALVE	-	1	Enquire
23	3485150	ROLL OVER VALVE	3485150 ROLL OVER VALVE	-	1	Enquire
24	1R12341146AA	VALVE-FUEL FLVV	1R12341146AA VALVE-FUEL FLVV	-	1	Enquire
25	3481413	RING - LOCKING	3481413 RING - LOCKING	-	1	Enquire
26	1R12341159AD	SENDER FUEL TANK	1R12341159AD SENDER FUEL TANK	-	1	Enquire
27	3485141	O RING	3485141 O RING	-	2	Enquire
28	1R12341152AA	Fuel Pump Module	1R12341152AA Fuel Pump Module Fuel pump without plastic housing	-	2	Enquire
28	1R12341152AA	Fuel Pump Module	1R12341152AA Fuel Pump Module	-	2	Enquire
29	1R12341303AC	HOSE - IN TANK	1R12341303AC HOSE - IN TANK	-	2	Enquire
30	1R12342075AA	CLIP - HOSE 15/8	1R12342075AA CLIP - HOSE 15/8	-	2	Enquire
31	1R12342095AA	HOSE-FLVV BREATHER CONNECTION	1R12342095AA HOSE-FLVV BREATHER CONNECTION Up to (V) 501948	-	1	Enquire
31	6R13342095AA	Hose, FLVV breather connection	6R13342095AA Hose, FLVV breather connection From (V) 501949	-	1	Enquire
32	1R12340697AA	Hose, grade valve to 4 way conn	1R12340697AA Hose, grade valve to 4 way conn Up to (V) 501948	-	1	Enquire
32	6R13340697AA	Hose, grade valve to 4 way conn	6R13340697AA Hose, grade valve to 4 way conn From (V) 501949	-	1	Enquire
33	6R13343187AA	Hose, carbon canister connector	6R13343187AA Hose, carbon canister connector From (V) 501949	-	1	Enquire
33	1R12341796AB	Hose, vent to 4 way pipe	1R12341796AB Hose, vent to 4 way pipe	-	1	Enquire
