Fuel Rails And Injectors

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Fuel Rails and Injectors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
5R139F593AB FUEL INJECTOR 22LBS/ HR $109.06 To Order
3785921 FUEL INJECTOR HOUSING HARNESS $3.55 IN STOCK
1R120810080 FUEL INJECTOR $121.75 To Order
Photo Part No Description Price (each) Stock
5R139S441AA FUEL RAIL ASSY-RH $1,574.66 To Order
Photo Part No Description Price (each) Stock
5R139S441BA FUEL RAIL ASSY-LH $1,574.66 To Order
Photo Part No Description Price (each) Stock
1R120810541 SENSOR-FUEL PRESSURE $467.81 To Order
Photo Part No Description Price (each) Stock
699110 SCREW &WASHER HEX HD M5x0.8x12 ZPLT OLIVE PIL 9 $3.33 To Order
Photo Part No Description Price (each) Stock
91894 SENSOR-FUEL TEMP $237.75 To Order
Photo Part No Description Price (each) Stock
697769 SCREW M6 x 23 W/WASR $0.94 To Order
Photo Part No Description Price (each) Stock
5R139J444AB Intake support bracket Enquire To Order
4G43001B46BB MANIFOLD BADGE $117.19 To Order
1R120810078 SUPPORT BRKT-INLET $957.50 To Order
Photo Part No Description Price (each) Stock
702847 SCREW-M6x25 PAN INT LOB 8 $1.46 IN STOCK
View All

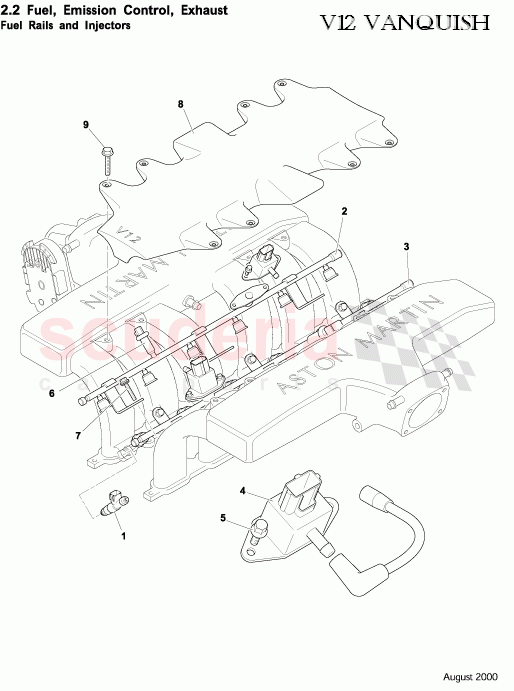

Fuel Rails and Injectors of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 5R139F593AB
FUEL INJECTOR 22LBS/ HR
Vanquish S From (V) 501506 		$109.06 12
1 3785921
FUEL INJECTOR HOUSING HARNESS
IN STOCK 		$3.55 12
1 1R120810080
FUEL INJECTOR 		$121.75 12
2 5R139S441AA
FUEL RAIL ASSY-RH 		$1,574.66 1
3 5R139S441BA
FUEL RAIL ASSY-LH 		$1,574.66 1
4 1R120810541
SENSOR-FUEL PRESSURE 		$467.81 2
5 699110
SCREW &WASHER HEX HD M5x0.8x12 ZPLT OLIVE PIL 9 		$3.33 4
6 91894
SENSOR-FUEL TEMP 		$237.75 2
7 697769
SCREW M6 x 23 W/WASR
Fuel rails to inlet manifolds 		$0.94 6
8 5R139J444AB
Intake support bracket
Vanquish S From (V) 501506 		- 1 Enquire
8 4G43001B46BB
MANIFOLD BADGE
Vanquish S From (V) 501506 		$117.19 1
8 1R120810078
SUPPORT BRKT-INLET 		$957.50 1
9 702847
SCREW-M6x25 PAN INT LOB 8
IN STOCK 		$1.46 8
