Occupant Restraining Device

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Occupant Restraining Device

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

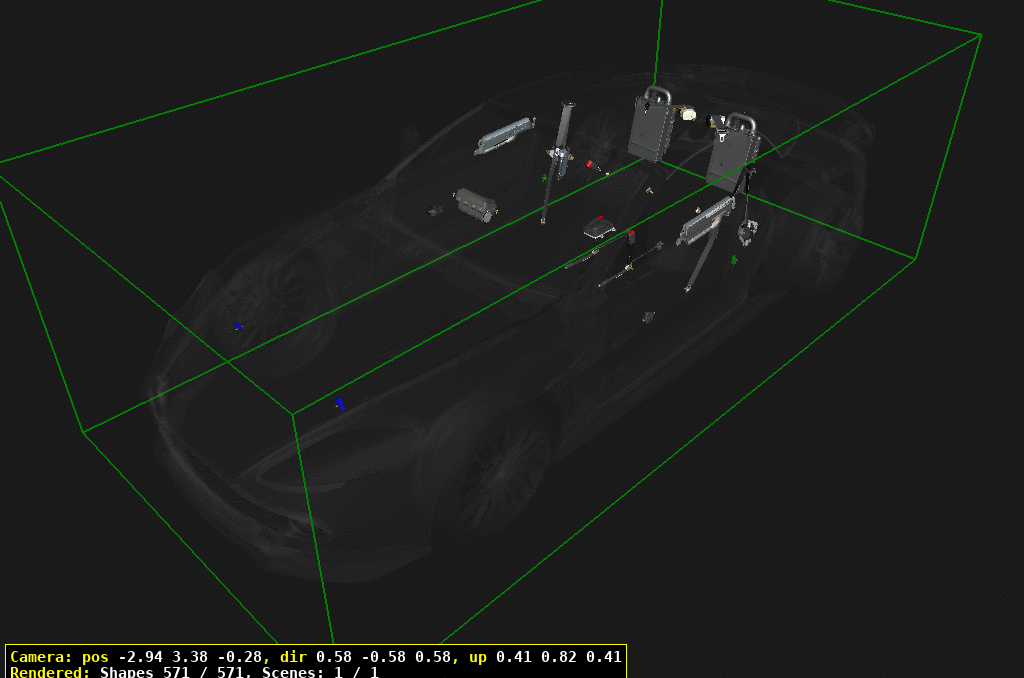

Occupant Restraining Device of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- - Enquire
20 CD33611B70ACW
BLT RETR ASY FRT ST 		- 1 Enquire
30 CD33611B69ACW
BELT RETR ASY FRT ST 		- 1 Enquire
40 703121
Screw, M8 x 25, Hex Flange Head 		- 12 Enquire
50 DG4360259BB
Bracket, Front Seat Belt Mounting, LH 		- 1 Enquire
60 DG4360258BC
REINF FRT BELT RETR 		- 1 Enquire
70 DG43V248A66AA
Plate, Cage Nut 		- 2 Enquire
80 DD33610E55AA
Buckle, Pretensioner Seat Belt, LH 		- 1 Enquire
90 DD33610E54AA
Buckle, Pretensioner Seat Belt, RH 		- 1 Enquire
100 4G43611B68CFW
REAR SEATBELT ASSEMBLY (WARM CHARCOAL) 		- 2 Enquire
110 4G43613K21BD
Buckle Assy, Rear Seat Belt, LH 		- 1 Enquire
120 4G43613K23BD
Buckle Assy, Rear Seat Belt, RH 		- 1 Enquire
200 4G43044H31AA
Airbag Assy, Passenger 		- 1 Enquire
210 702637
SCREW M6X20 SKT HD 		- 4 Enquire
220 6G3314B268AA
Switch, Passenger Air Bag Deactivation 		- 1 Enquire
230 FD43B14K158AE
SD AR BG DR LH FR 		- 1 Enquire
240 FD43B14K159AE
SD AR BG DR 		- 2 Enquire
250 FD4310512FAA
M5X20 FLNC PN HD 		- - Enquire
260 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		- 4 Enquire
270 8G438979AA
WASHER M5 x 20 x 1.5 THK ST/STEEL BLK 		- 4 Enquire
290 ED3312A965AB
FRT DR UPR DMIC 		- 1 Enquire
300 ED3312A964AB
FRT DR UPR DMIC 		- 1 Enquire
310 FD33611D10AC
FRT ST SD A/B LH 		- 1 Enquire
320 FD33611D11AC
FRT ST SD A/B RH 		- 1 Enquire
330 15AC862CP
DOOR LATCH - SOFT CLOSE - LH 		- 1 Enquire
350 703149
SCREW M6x16 PAN FLG TORX CHROME FRE 		- 2 Enquire
360 6G3346058AA
Screw, M5 x 10 Pan Head Flange Torx 		- 4 Enquire
400 DD3314C246AA
Module, Restraints Control 		- 2 Enquire
410 702840
Nut & Washer, M6, Hex Flange Head 		- 2 Enquire
420 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20) 		- 2 Enquire
430 4G433710932
Sensor Occupant Restraint System UPR Front 		- 2 Enquire
440 4G433710931
Sensor, Occupant Restraint, Side Impact 		- 2 Enquire
450 703199
Bolt M6x30 HEX FLG Chrome Free 		- 4 Enquire
460 6G433710240
Sensor, Restraint System Side Impact Pressure Sensor 		- 2 Enquire
500 6W83518C42AC
Rollover Protection System 		- 2 Enquire
510 703153
BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE 		- 12 Enquire
530 7G43L3981XBA
Spacer Plate, Rollbar, Left 		- 1 Enquire
540 7G43L3981XCA
Spacer Plate, Rollbar, Right 		- 1 Enquire
