Convertible Roof of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

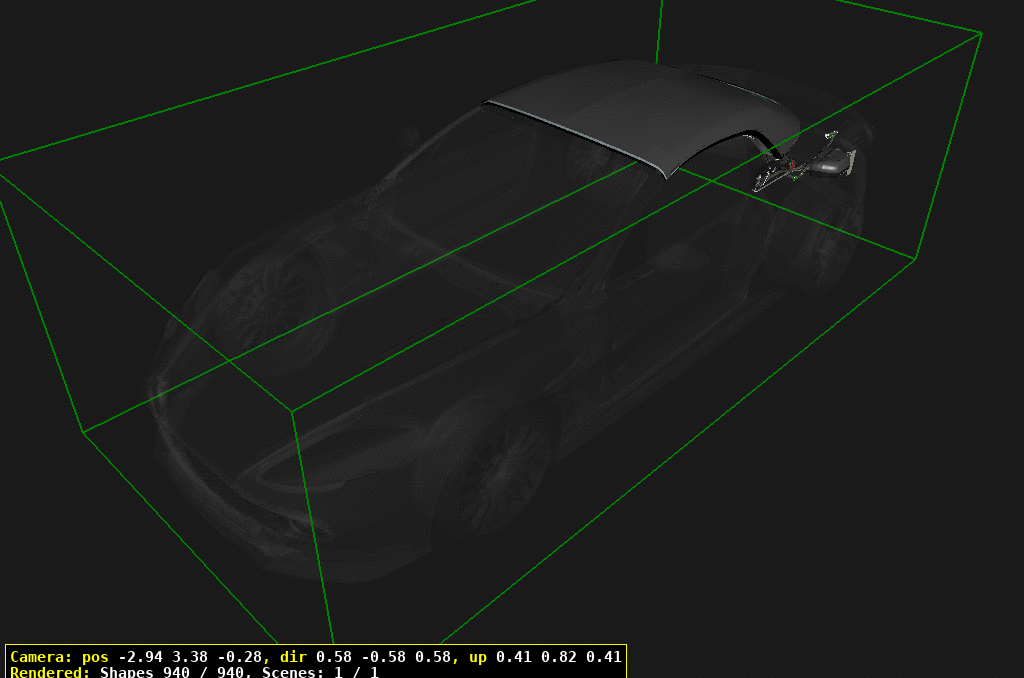

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Convertible Roof

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	ED3376501B00CA	TOP ASSY FOLDING	ED3376501B00CA TOP ASSY FOLDING Standard	-	1	Enquire
11	ED3376501B10CA	TOP ASSY FOLDING	ED3376501B10CA TOP ASSY FOLDING Special	-	1	Enquire
20	9G4370351AA	CANOPY COVER CG BLACK KIT	9G4370351AA CANOPY COVER CG BLACK KIT Black	-	1	Enquire
21	9G4370351BA	Canopy Cover Kit, Atlantic Blue	9G4370351BA Canopy Cover Kit, Atlantic Blue Blue	-	1	Enquire
22	9G4370351CA	CANOPY COVER CG JAVA KIT	9G4370351CA CANOPY COVER CG JAVA KIT Java	-	1	Enquire
23	9G4370351DA	CANOPY COVER CG WESTMINSTER GREEN KIT	9G4370351DA CANOPY COVER CG WESTMINSTER GREEN KIT Westminster Green	-	1	Enquire
24	9G4370351EA	CANOPY COVER CG TITAN GREY KIT	9G4370351EA CANOPY COVER CG TITAN GREY KIT Titan Grey	-	1	Enquire
25	9G4370351FA	CANOPY COVER CG BURGUNDY KIT	9G4370351FA CANOPY COVER CG BURGUNDY KIT Burgundy	-	1	Enquire
26	9G4370351GA	CANOPY COVER CG SINGED BROWN KIT	9G4370351GA CANOPY COVER CG SINGED BROWN KIT Singed Brown	-	1	Enquire
29	4G431005038AAPK	SPRING CLIP-PK OF 4	4G431005038AAPK SPRING CLIP-PK OF 4 Pack of 4	-	4	Enquire
30	9G4370352AB	Inner Lining, Obsidian Black	9G4370352AB Inner Lining, Obsidian Black Obsidian Black	-	1	Enquire
31	9G4370352BB	INNER LINING CG IVORY	9G4370352BB INNER LINING CG IVORY Ivory	-	1	Enquire
32	9G4370352CB	INNER LINING CG MOON SHADOW	9G4370352CB INNER LINING CG MOON SHADOW Moon Shadow	-	1	Enquire
33	9G4370352DB	INNER LINING CG TAILORS GREY	9G4370352DB INNER LINING CG TAILORS GREY Tailors grey	-	1	Enquire
34	9G4370352EB	Inner Lining, New Light Tan	9G4370352EB Inner Lining, New Light Tan Tan	-	1	Enquire
40	4G43L51210AB	FRT SL SPR PRT ASY K	4G43L51210AB FRT SL SPR PRT ASY K	-	1	Enquire
50	4G43L51220AA	MIDDLE SEAL SPARE PART LH ASSY KIT	4G43L51220AA MIDDLE SEAL SPARE PART LH ASSY KIT	-	1	Enquire
60	4G43L51221AA	MIDDLE SEAL SPARE PART RH ASSY KID	4G43L51221AA MIDDLE SEAL SPARE PART RH ASSY KID	-	1	Enquire
70	4G43L51230AB	RR SL SPR PRT ASY KT	4G43L51230AB RR SL SPR PRT ASY KT	-	1	Enquire
80	9G439G803AA	Hydraulic Pump Assy, Includes All Cylinders & Hoses	9G439G803AA Hydraulic Pump Assy, Includes All Cylinders & Hoses Incl items 90-120	-	1	Enquire
90	4G4350639AC	MAIN HYDRAULIC CYLINDER LEFT HAND	4G4350639AC MAIN HYDRAULIC CYLINDER LEFT HAND	-	1	Enquire
100	4G4350638AB	MAIN HYDRAULIC CYLINDER RIGHT HAND	4G4350638AB MAIN HYDRAULIC CYLINDER RIGHT HAND	-	1	Enquire
110	4G43539A79AA	Cylinder, Tension Bow, LH	4G43539A79AA Cylinder, Tension Bow, LH	-	1	Enquire
120	4G43539A78AA	Cylinder, Tension Bow, RH	4G43539A78AA Cylinder, Tension Bow, RH	-	1	Enquire
130	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH	-	1	Enquire
140	4G433710685	Harness, Roof Hydraulics, LH	4G433710685 Harness, Roof Hydraulics, LH	-	1	Enquire
141	4G433710686	Harness, Roof Hydraulics, RH	4G433710686 Harness, Roof Hydraulics, RH	-	1	Enquire
150	4G43L51240AA	CONVERTIBLE ROOF LATCH MOTOR KIT	4G43L51240AA CONVERTIBLE ROOF LATCH MOTOR KIT	-	1	Enquire
160	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5	-	4	Enquire
170	4G43L51260AA	FULLY AUTOMATIC LATCHING LH KIT	4G43L51260AA FULLY AUTOMATIC LATCHING LH KIT	-	1	Enquire
180	4G43L51270AA	FULLY AUTOMOTIVE LATCHING RH KIT	4G43L51270AA FULLY AUTOMOTIVE LATCHING RH KIT	-	1	Enquire
220	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
230	4G431012525AA	Flex Shaft, LH	4G431012525AA Flex Shaft, LH	-	1	Enquire
240	4G431012524AA	Flex Shaft, RH	4G431012524AA Flex Shaft, RH	-	1	Enquire
250	4G439310617	HEADER TRIM KIT DB9 VOLANTE-BLACK	4G439310617 HEADER TRIM KIT DB9 VOLANTE-BLACK Obsidian Black	-	1	Enquire
251	4G439310614	HEADER TRIM KIT DB9 VOLANTE-IVORY	4G439310614 HEADER TRIM KIT DB9 VOLANTE-IVORY Ivory	-	1	Enquire
252	4G439310615	HEADER TRIM KIT DB9 VOLANTE MOONSHADOW	4G439310615 HEADER TRIM KIT DB9 VOLANTE MOONSHADOW Moon Shadow	-	1	Enquire
253	4G439310616	HEADER TRIM KIT DB9 VOLANTE TAILORS GREY	4G439310616 HEADER TRIM KIT DB9 VOLANTE TAILORS GREY Tailors Grey	-	1	Enquire
290	4G431013271AA	SCREW PIVOT HOOK	4G431013271AA SCREW PIVOT HOOK	-	2	Enquire
320	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	2	Enquire
330	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	1	Enquire
340	00RA081	SCREW - TORX - PAN - M6X16-8.8	00RA081 SCREW - TORX - PAN - M6X16-8.8	-	1	Enquire
350	00RB211	CLIP - PIPE - WINDSCREEN WASHER	00RB211 CLIP - PIPE - WINDSCREEN WASHER	-	1	Enquire
380	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	1	Enquire
400	4G439310506	ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	4G439310506 ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	-	A/R	Enquire
450	ED3313B524AA	Module, Convertible Roof	ED3313B524AA Module, Convertible Roof	-	1	Enquire
