Interior Trim - Doors of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Doors

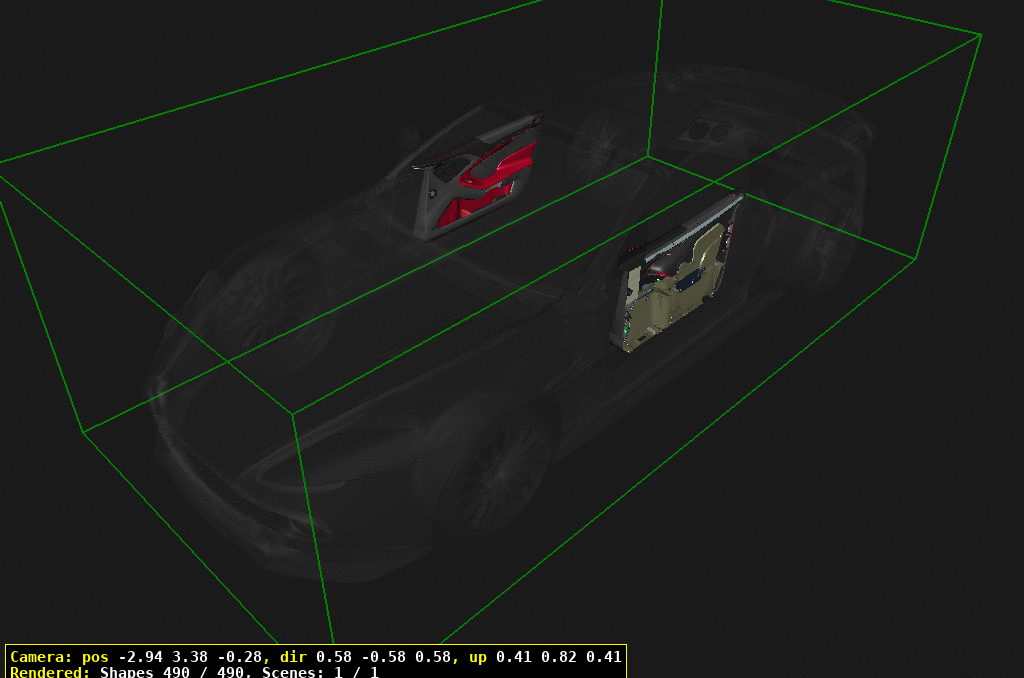

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
10	JD3Y23943AAW	QLT PNL ASY FT DR TR	JD3Y23943AAW QLT PNL ASY FT DR TR Standard	-	1	Enquire
11	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 'Villa D'Este'	-	1	Enquire
12	JD3Y23942AAW	QLT PNL ASY FT DR TR	JD3Y23942AAW QLT PNL ASY FT DR TR Standard	-	1	Enquire
13	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH 'Villa D'Este'	-	1	Enquire
20	JD3Y20160AAW	QLT DR ASY TR RH	JD3Y20160AAW QLT DR ASY TR RH Standard	-	1	Enquire
21	JD3Y20160BAW	QLT DR ASY TR RH	JD3Y20160BAW QLT DR ASY TR RH 'Villa D'Este'	-	1	Enquire
22	JD3Y20161AAW	QLT DR ASY TR LH	JD3Y20161AAW QLT DR ASY TR LH Standard	-	1	Enquire
23	JD3Y20161BAW	QLT DR ASY TR LH	JD3Y20161BAW QLT DR ASY TR LH 'Villa D'Este'	-	1	Enquire
30	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head	-	6	Enquire
50	CD3310398AB	Mat, Pocket Front, RH	CD3310398AB Mat, Pocket Front, RH	-	1	Enquire
51	CD3310397AB	Mat, Pocket Front, LH	CD3310397AB Mat, Pocket Front, LH	-	1	Enquire
60	CD3310398BB	Mat, Pocket Rear, RH	CD3310398BB Mat, Pocket Rear, RH	-	1	Enquire
61	CD3310397BB	Mat, Pocket Rear, LH	CD3310397BB Mat, Pocket Rear, LH	-	1	Enquire
70	22AB357GP	BODYSIDE RR LWR CAP FIXING	22AB357GP BODYSIDE RR LWR CAP FIXING	-	1	Enquire
80	CD33434A30ACW	Door Pocket Strap Assembly, RH	CD33434A30ACW Door Pocket Strap Assembly, RH	-	1	Enquire
81	CD33434A31ACW	Door Pocket Strap Assembly, LH	CD33434A31ACW Door Pocket Strap Assembly, LH	-	1	Enquire
90	CD3323747AAW	Insert, Wings Logo	CD3323747AAW Insert, Wings Logo	-	1	Enquire
110	4G43104081BA	Screw, M6 x 55, Cap Head Countersunk, Black	4G43104081BA Screw, M6 x 55, Cap Head Countersunk, Black RH Door	-	1	Enquire
111	1R12834616AA	Screw M6x50 Stainless Steel Socket Head Cap Screw	1R12834616AA Screw M6x50 Stainless Steel Socket Head Cap Screw LH Door	-	1	Enquire
120	699733	WASHER M6 ST STL	699733 WASHER M6 ST STL	-	1	Enquire
130	DD3324228AB	Bracket Clamp, Front Armrest	DD3324228AB Bracket Clamp, Front Armrest	-	1	Enquire
140	ED3323928AEW	PNL ASY DR TR APLQ R	ED3323928AEW PNL ASY DR TR APLQ R	-	1	Enquire
141	ED3323929AEW	PNL ASY DR TR APL L	ED3323929AEW PNL ASY DR TR APL L	-	1	Enquire
150	CD3324104ACW	Finisher, Door Pull, Trimmed, RH	CD3324104ACW Finisher, Door Pull, Trimmed, RH	-	1	Enquire
151	CD3324105ACW	Finisher, Door Pull, Trimmed, LH	CD3324105ACW Finisher, Door Pull, Trimmed, LH	-	1	Enquire
160	CD33E804159AB	Stud, M6 x 1.0 x M6 x 1.0	CD33E804159AB Stud, M6 x 1.0 x M6 x 1.0	-	1	Enquire
170	CD33E804537AB	Stud, M4 x 1.0 x M6 x 1.0	CD33E804537AB Stud, M4 x 1.0 x M6 x 1.0	-	1	Enquire
200	AD4318978AB	Speaker Grille, Door Trim, RH, Iridium	AD4318978AB Speaker Grille, Door Trim, RH, Iridium Iridium	-	1	Enquire
201	CD3318978AA	Speaker Grille, Door Trim, RH, Black	CD3318978AA Speaker Grille, Door Trim, RH, Black Black	-	1	Enquire
210	AD4318979AB	Speaker Grille, Door Trim, LH, Iridium	AD4318979AB Speaker Grille, Door Trim, LH, Iridium Iridium	-	1	Enquire
211	CD3318979AA	Speaker Grille, Door Trim, LH, Black	CD3318979AA Speaker Grille, Door Trim, LH, Black Black	-	1	Enquire
220	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
230	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	1	Enquire
240	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	4G4302275AB Seal Venair Outlet Duct Door Lower RH	-	1	Enquire
260	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	1	Enquire
270	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	1	Enquire
280	9G4320272AA	Seal, Door Inside Panel	9G4320272AA Seal, Door Inside Panel	-	2	Enquire
290	ED3320838AB	Retainer, Door Trim Upper	ED3320838AB Retainer, Door Trim Upper	-	1	Enquire
310	701655	Rivet, 4.8 x 6.3-12.7	701655 Rivet, 4.8 x 6.3-12.7	-	2	Enquire
320	AD4310137501AA	Screw, M4x8, Countersunk	AD4310137501AA Screw, M4x8, Countersunk	-	2	Enquire
330	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	3	Enquire
350	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) Pack of 20	-	1	Enquire
400	FD3324002AAW	DR ARMREST TR RH	FD3324002AAW DR ARMREST TR RH LHD	-	1	Enquire
401	FD3324002BAW	DR ARMRST TR RH	FD3324002BAW DR ARMRST TR RH RHD	-	1	Enquire
410	FD3324003AAW	ASSY PAD ARMREST LH	FD3324003AAW ASSY PAD ARMREST LH LHD	-	1	Enquire
411	22AA531GP	ASSY PNL RR FENDER SUPPORT RH	22AA531GP ASSY PNL RR FENDER SUPPORT RH RHD	-	1	Enquire
