Handles and Lock Mechanisms of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Handles and Lock Mechanisms

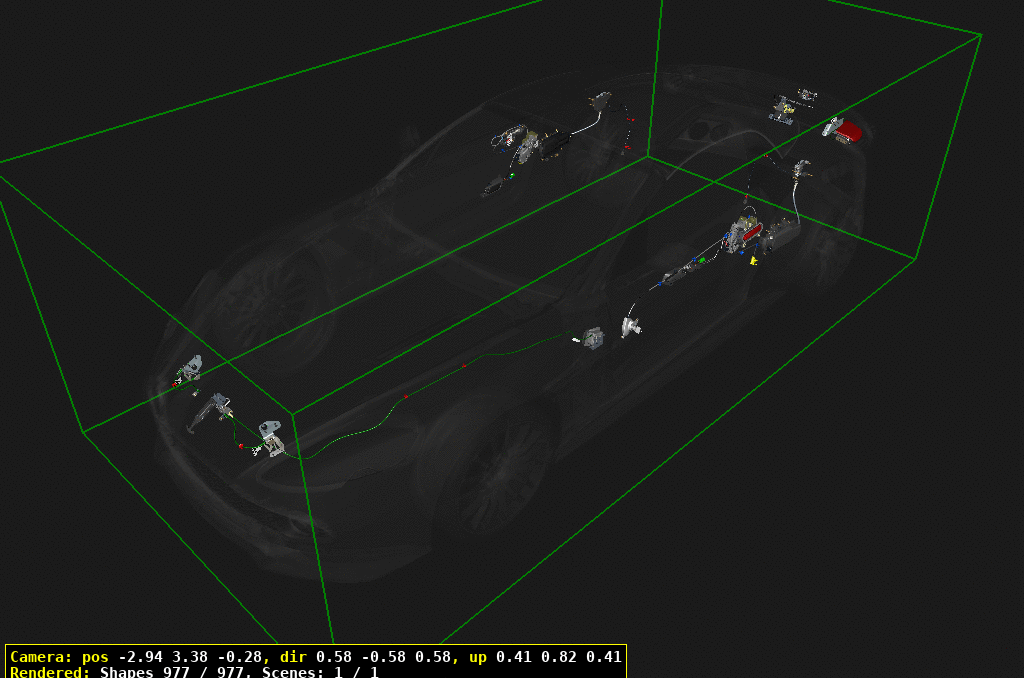

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	CD3316K662AB	Cable Abutment, Hood Secondary Release	CD3316K662AB Cable Abutment, Hood Secondary Release	-	2	Enquire
30	DD4316B768AD	LATCH ASY HOD SEC LH	DD4316B768AD LATCH ASY HOD SEC LH	-	1	Enquire
40	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100) IN STOCK	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) Pack of 100 IN STOCK	-	2	Enquire
50	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE	-	2	Enquire
60	9G436411062	Lever, Bonnet Release	9G436411062 Lever, Bonnet Release	-	1	Enquire
70	701553	Screw, M6 x 16, Pan Head IN STOCK	701553 Screw, M6 x 16, Pan Head IN STOCK	-	1	Enquire
80	DD4316B769AD	LATCH ASY HOOD SE RH IN STOCK	DD4316B769AD LATCH ASY HOOD SE RH IN STOCK	-	1	Enquire
90	DD43915A01AA	Label, Hood Latch Warning	DD43915A01AA Label, Hood Latch Warning	-	2	Enquire
100	CD3316C730AA	Bracket, Hood Release Handle Mounting	CD3316C730AA Bracket, Hood Release Handle Mounting	-	1	Enquire
110	DD4316A945AA	Striker Bar, Secondary Latch, RH	DD4316A945AA Striker Bar, Secondary Latch, RH	-	1	Enquire
120	DD4316A944AA	Striker Bar, Secondary Latch, LH	DD4316A944AA Striker Bar, Secondary Latch, LH	-	1	Enquire
130	DD43405C45AD	Cable, Secondary Latch Release IN STOCK	DD43405C45AD Cable, Secondary Latch Release IN STOCK	-	1	Enquire
140	11A3663CP	BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT	11A3663CP BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT	-	1	Enquire
150	4G436410063	Bonnet Latch IN STOCK	4G436410063 Bonnet Latch IN STOCK	-	1	Enquire
160	AD4316C656AC	CABLE ASSY HOOD LATC	AD4316C656AC CABLE ASSY HOOD LATC	-	1	Enquire
170	704443	Clip, Plastic, 5 x 6.5 x 2 IN STOCK	704443 Clip, Plastic, 5 x 6.5 x 2 IN STOCK	-	2	Enquire
180	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	705464 Screw, 4.2 x 16, Washer Head, Self Tapping	-	2	Enquire
190	701448	Spring Nut, U Type, 4.2 x 2.1 IN STOCK	701448 Spring Nut, U Type, 4.2 x 2.1 IN STOCK	-	2	Enquire
200	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	-	2	Enquire
210	CD33A15K610AA	TORX CAP T X 30	CD33A15K610AA TORX CAP T X 30	-	2	Enquire
220	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20) IN STOCK	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20 IN STOCK	-	10	Enquire
300	CD33F218A01AA	Cable Assy, Front Inside Door Handle	CD33F218A01AA Cable Assy, Front Inside Door Handle	-	2	Enquire
310	CD3322615AG	ASY INSIDE RLSE HNDL	CD3322615AG ASY INSIDE RLSE HNDL	-	1	Enquire
320	CD3322614AE	ASY INSIDE RLSE HNDL	CD3322614AE ASY INSIDE RLSE HNDL	-	1	Enquire
330	AD433710064	SWITCH ASSEMBLY- INNER DOOR	AD433710064 SWITCH ASSEMBLY- INNER DOOR	-	2	Enquire
350	CD33F22050AB	Lockset	CD33F22050AB Lockset	-	1	Enquire
360	8D33654024AAN	KEY ASSY-TO NMBR CHR	8D33654024AAN KEY ASSY-TO NMBR CHR	-	1	Enquire
370	704443	Clip, Plastic, 5 x 6.5 x 2 IN STOCK	704443 Clip, Plastic, 5 x 6.5 x 2 IN STOCK	-	3	Enquire
380	SY9Y9142DA	HTS BRKT	SY9Y9142DA HTS BRKT	-	2	Enquire
381	CD3322405AC	Handle Blade Assy, LH	CD3322405AC Handle Blade Assy, LH Carbon	-	1	Enquire
382	CD3322404AC	Handle Blade Assy, RH	CD3322404AC Handle Blade Assy, RH Carbon	-	1	Enquire
400	CD33221A00AA	Cable Assy, Front Door Outside Handle	CD33221A00AA Cable Assy, Front Door Outside Handle	-	2	Enquire
410	CD33226A28AB	Handle, Door, Exterior, Front	CD33226A28AB Handle, Door, Exterior, Front	-	2	Enquire
420	ED3321813AB	Latch Front Door LH IN STOCK	ED3321813AB Latch Front Door LH IN STOCK	-	1	Enquire
430	ED3321814AB	Latch Assy, Front Door, RH	ED3321814AB Latch Assy, Front Door, RH	-	1	Enquire
440	3790075	Cable Tie, 290mm IN STOCK	3790075 Cable Tie, 290mm IN STOCK	-	1	Enquire
450	4G43224A72AH	DUMMY LIGHT LENS IN STOCK	4G43224A72AH DUMMY LIGHT LENS IN STOCK	-	2	Enquire
460	4G43224A68AA	Pivot Pin, Outside Handle IN STOCK	4G43224A68AA Pivot Pin, Outside Handle IN STOCK	-	2	Enquire
470	703612	Nut & Washer, M6, HVAC to XCB IN STOCK	703612 Nut & Washer, M6, HVAC to XCB IN STOCK	-	6	Enquire
480	GG43AA0231AA	SCW M8X34 CSK FLAT	GG43AA0231AA SCW M8X34 CSK FLAT	-	4	Enquire
500	703073	Screw, M6 x 16, Countersunk, Black	703073 Screw, M6 x 16, Countersunk, Black	-	2	Enquire
510	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK	-	4	Enquire
520	703128	WASHER LOCK M6 IN STOCK	703128 WASHER LOCK M6 IN STOCK	-	2	Enquire
530	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	4	Enquire
540	703746	SCREW-M6x16 PAN TORX	703746 SCREW-M6x16 PAN TORX	-	6	Enquire
550	707147	NUT-M5 HEX FLG GRD 8	707147 NUT-M5 HEX FLG GRD 8	-	2	Enquire
560	ED43226A28AA	BUMP STOP	ED43226A28AA BUMP STOP	-	2	Enquire
600	6G436710237	Handle, Emergency Release, Deck Lid Latch	6G436710237 Handle, Emergency Release, Deck Lid Latch	-	1	Enquire
610	DD4314B529AD	ACTUATOR	DD4314B529AD ACTUATOR	-	1	Enquire
620	6G436710235	Striker, Deck Lid Latch	6G436710235 Striker, Deck Lid Latch	-	1	Enquire
630	DD43F442A66AA	LATCH TAILGATE	DD43F442A66AA LATCH TAILGATE Includes item 640	-	1	Enquire
640	6G436710236	Bezel, Deck Lid Latch IN STOCK	6G436710236 Bezel, Deck Lid Latch IN STOCK	-	1	Enquire
650	707956	SCREW-S/TAP 4.8 x 16	707956 SCREW-S/TAP 4.8 x 16	-	3	Enquire
660	701556PK	Screw M5 x 16 Pan Head (Pack of 10) IN STOCK	701556PK Screw M5 x 16 Pan Head (Pack of 10) Pack of 10 IN STOCK	-	3	Enquire
670	702517	BOLT M8 x 14 PC T1 PIL 10	702517 BOLT M8 x 14 PC T1 PIL 10	-	3	Enquire
680	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20) IN STOCK	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20 IN STOCK	-	2	Enquire
690	4G4346662AAPK	WSHR SPACING 2mm(10) IN STOCK	4G4346662AAPK WSHR SPACING 2mm(10) Pack of 10 IN STOCK	-	4	Enquire
710	22AA722GP	MLDG BASE DOOR MIRROR COVER LWR LH	22AA722GP MLDG BASE DOOR MIRROR COVER LWR LH	-	1	Enquire
800	13A7264CP	OVERMOULD - DOOR STRIKER - RH	13A7264CP OVERMOULD - DOOR STRIKER - RH	-	1	Enquire
830	6G33F9C070AA	ACTUATOR FUEL FILLER	6G33F9C070AA ACTUATOR FUEL FILLER	-	1	Enquire
840	JD3YL405B96AB	ASY-FU/FILL DR LAT C	JD3YL405B96AB ASY-FU/FILL DR LAT C	-	1	Enquire
850	HD3Y405B46AA	ACT ASY FU/FILL BRKT	HD3Y405B46AA ACT ASY FU/FILL BRKT	-	1	Enquire
860	6G3340180BA	Cable, Fuel Filler Flap Release IN STOCK	6G3340180BA Cable, Fuel Filler Flap Release IN STOCK	-	1	Enquire
870	13A2049CP	COVER - DOOR MIRROR BASE - LOWER - LH	13A2049CP COVER - DOOR MIRROR BASE - LOWER - LH	-	1	Enquire
890	703149	SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	703149 SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	-	2	Enquire
900	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	-	2	Enquire
910	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	2	Enquire
1000	4G439611272	Enclosure, Tonneau Latch Motor Assy	4G439611272 Enclosure, Tonneau Latch Motor Assy Includes item 1020	-	1	Enquire
1010	4G439611273	TON LTCH ENCLSR RH	4G439611273 TON LTCH ENCLSR RH Includes item 1020	-	1	Enquire
1020	13AA332CP	STRIKER - DOOR	13AA332CP STRIKER - DOOR	-	2	Enquire
1030	4G4353548AC	Lid, Tonneau Latch Motor Assy IN STOCK	4G4353548AC Lid, Tonneau Latch Motor Assy IN STOCK	-	2	Enquire
1050	4G436C691AD	Grommet Sleeve, Cable	4G436C691AD Grommet Sleeve, Cable	-	2	Enquire
1060	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free IN STOCK	-	6	Enquire
1070	4G43301347AA	BLACK TPR BODY PLUG 20mm	4G43301347AA BLACK TPR BODY PLUG 20mm	-	2	Enquire
1080	ED33L43161AA	Mounting Plate, Tonneau Latch, LH	ED33L43161AA Mounting Plate, Tonneau Latch, LH	-	1	Enquire
1090	ED33L43160AA	Mounting Plate, Tonneau Latch, RH	ED33L43160AA Mounting Plate, Tonneau Latch, RH	-	1	Enquire
1100	GD3354797AA	TON LTCH ASY-LH-VANQ	GD3354797AA TON LTCH ASY-LH-VANQ Stamped "R"	-	1	Enquire
1110	GD3354796AA	TON LTCH ASY-RH-VANQ	GD3354796AA TON LTCH ASY-RH-VANQ Stamped "L"	-	1	Enquire
1120	4G433710477	Motor Tonneau Latch IN STOCK	4G433710477 Motor Tonneau Latch IN STOCK	-	2	Enquire
1130	4G43239600AA	Tonneau Motor Cable Guide Clip IN STOCK	4G43239600AA Tonneau Motor Cable Guide Clip Order with Motor IN STOCK	-	2	Enquire
1150	4G4353922AB	Tonneau Latch Motor Drive Cable IN STOCK	4G4353922AB Tonneau Latch Motor Drive Cable IN STOCK	-	2	Enquire
1170	702290	Screw, M06 x 20, Thread Forming	702290 Screw, M06 x 20, Thread Forming	-	14	Enquire
1180	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	2	Enquire
1190	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	6	Enquire
1200	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20) IN STOCK	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10 IN STOCK	-	6	Enquire
1210	702946	Bolt, M6 x 35, Hex Head IN STOCK	702946 Bolt, M6 x 35, Hex Head IN STOCK	-	8	Enquire
1230	ED33L43165AA	Spacer, Tonneau Latch Mounting Plate	ED33L43165AA Spacer, Tonneau Latch Mounting Plate	-	2	Enquire
1240	6G3325919AA	Rubber Plug, 12mm, Black Thermoplastic	6G3325919AA Rubber Plug, 12mm, Black Thermoplastic	-	A/R	Enquire
