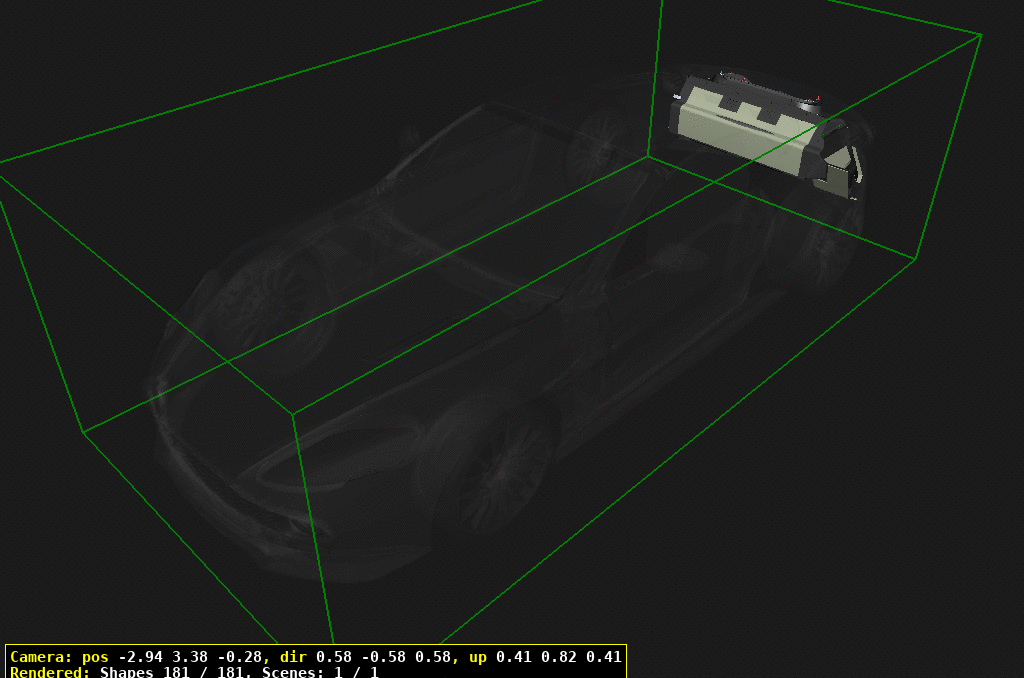

Interior Trim - Luggage Compartment of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Luggage Compartment

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	11A4538CP	ADHESIVE - STRUCTURAL - SA9820 - 400CC	11A4538CP ADHESIVE - STRUCTURAL - SA9820 - 400CC	-	1	Enquire
30	703742	Fastener, Push In, 6.5 x 6.0	703742 Fastener, Push In, 6.5 x 6.0	-	11	Enquire
40	13A4911CP	INTERNAL ARM - DOOR MIRROR - RH	13A4911CP INTERNAL ARM - DOOR MIRROR - RH	-	1	Enquire
50	00RA130	SCREW - NR8X13 - FLANGE	00RA130 SCREW - NR8X13 - FLANGE	-	1	Enquire
60	AG43608073AA	SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	AG43608073AA SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	-	2	Enquire
70	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	2	Enquire
80	00RB196	CLIP - NUT STRAP - 4.2X0.8	00RB196 CLIP - NUT STRAP - 4.2X0.8 Includes item 90	-	1	Enquire
90	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	4	Enquire
100	DD33045L27AB	MLDG L/C AUX PWR	DD33045L27AB MLDG L/C AUX PWR	-	1	Enquire
110	13A5601CP	CHEATER PANEL - LH	13A5601CP CHEATER PANEL - LH	-	1	Enquire
120	14A3463CP	SCALP - DOOR MIRROR - RH	14A3463CP SCALP - DOOR MIRROR - RH	-	1	Enquire
130	13AA455CP	SHIM 1MM - CHEATER PANEL	13AA455CP SHIM 1MM - CHEATER PANEL	-	1	Enquire
140	14AB091CP	SCALP - DOOR MIRROR - CARBON - LH	14AB091CP SCALP - DOOR MIRROR - CARBON - LH	-	1	Enquire
150	JD3Y130A60AAW	PNL ASY LOAD COMP FR	JD3Y130A60AAW PNL ASY LOAD COMP FR	-	1	Enquire
160	AG43608073AA	SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	AG43608073AA SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	-	5	Enquire
170	13A5603CP	CHEATER PANEL - RH	13A5603CP CHEATER PANEL - RH	-	1	Enquire
180	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
190	7G43700712BC	ASTON MARTIN BLACK UMBRELLA	7G43700712BC ASTON MARTIN BLACK UMBRELLA	-	1	Enquire
200	13A5606CP	CLIP - CHEATER PANEL - RH	13A5606CP CLIP - CHEATER PANEL - RH	-	1	Enquire
210	CD3340168AAW	Bracket, Pull Down Retention, Luggage Compartment	CD3340168AAW Bracket, Pull Down Retention, Luggage Compartment	-	1	Enquire
220	ED330440AA	Screw, M8 x 30 Csk Torx	ED330440AA Screw, M8 x 30 Csk Torx	-	1	Enquire
230	13A0376CP	DOOR - GLASS - RH	13A0376CP DOOR - GLASS - RH Includes item 240, 250	-	1	Enquire
240	JD3YMWC1474AA	FIR TREE CLIP	JD3YMWC1474AA FIR TREE CLIP	-	7	Enquire
260	ED33423A35AB	Bracket Assembly, Angle, RH	ED33423A35AB Bracket Assembly, Angle, RH	-	2	Enquire
270	ED330936AAW	Retainer, Umbrella	ED330936AAW Retainer, Umbrella	-	2	Enquire
280	AD4319G329AA	WARNING TRIANGLE ASSY	AD4319G329AA WARNING TRIANGLE ASSY	-	1	Enquire
290	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439	-	1	Enquire
