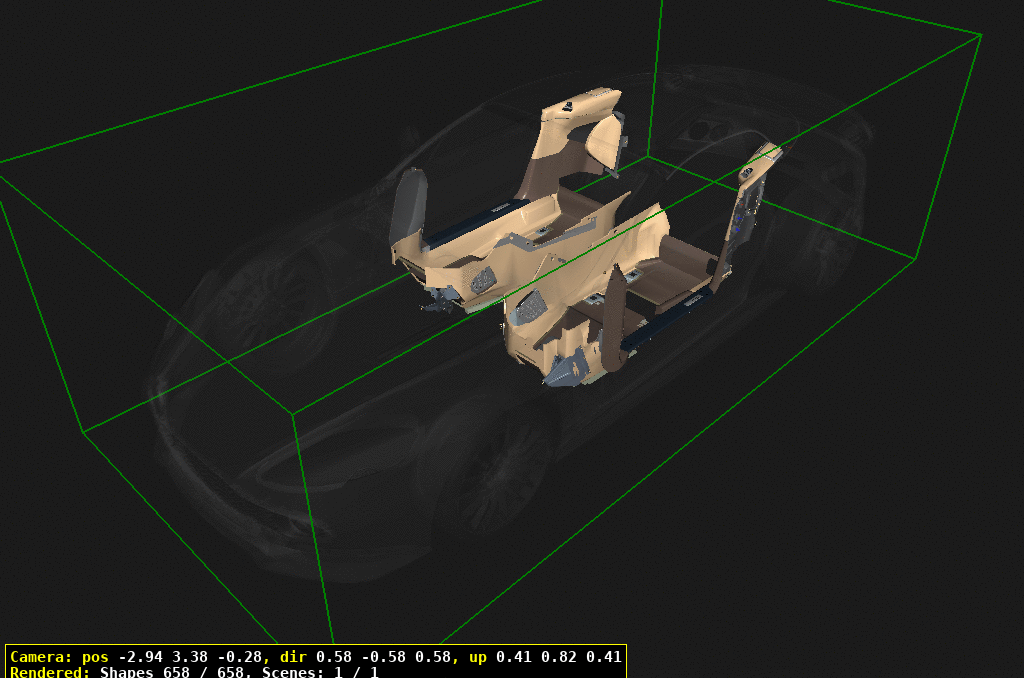

Interior Trim - Lower of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Lower

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	ED3302349ADW	A-POST LWR ASSY LH	ED3302349ADW A-POST LWR ASSY LH	-	1	Enquire
30	ED3302348ADW	A-POST LWR ASY RH	ED3302348ADW A-POST LWR ASY RH	-	1	Enquire
40	701157PK	Screw & Washer 4.2 x 16 (Pack of 10) IN STOCK	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10 IN STOCK	-	2	Enquire
50	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	2	Enquire
60	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided	-	A/R	Enquire
70	FD33100A90AA	RH RR FLR SPRT PNL	FD33100A90AA RH RR FLR SPRT PNL	-	1	Enquire
80	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter	-	1	Enquire
90	703747	SCREW &WASHER-M6x25	703747 SCREW &WASHER-M6x25	-	2	Enquire
100	DD3319L525AA	Scuff Plate, Accelerator, Upper	DD3319L525AA Scuff Plate, Accelerator, Upper LHD only	-	1	Enquire
110	FD33100A91AA	LH RR SUPT PANEL	FD33100A91AA LH RR SUPT PANEL	-	1	Enquire
120	CD338310016	Kit, Floor Carpets, LHD	CD338310016 Kit, Floor Carpets, LHD LHD, Heavyweight	-	1	Enquire
121	CD338310017	Kit, Floor Carpets, LHD	CD338310017 Kit, Floor Carpets, LHD LHD, Lightweight	-	1	Enquire
122	CD338310014	Kit, Floor Carpets, RHD	CD338310014 Kit, Floor Carpets, RHD RHD, Heavyweight	-	1	Enquire
123	CD338310015	Kit, Floor Carpets, RHD	CD338310015 Kit, Floor Carpets, RHD RHD, Lightweight	-	1	Enquire
130	CD33044J09AA	Energy Absorber, Foot Rest	CD33044J09AA Energy Absorber, Foot Rest LHD	-	1	Enquire
140	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY LHD, Silver Pedals	-	1	Enquire
141	CD3312020CA	Cover Plate, Foot Rest	CD3312020CA Cover Plate, Foot Rest LHD, Black Pedals	-	1	Enquire
150	CD333N328BB	FOOTREST BRKT	CD333N328BB FOOTREST BRKT LHD	-	1	Enquire
160	DD33130B53BB	Support, Floor Carpet, LH	DD33130B53BB Support, Floor Carpet, LH LHD	-	1	Enquire
161	DD33130B53AB	Support, Floor Carpet, LH	DD33130B53AB Support, Floor Carpet, LH RHD	-	1	Enquire
170	DD33130B52BB	Support, Floor Carpet, RH	DD33130B52BB Support, Floor Carpet, RH LHD	-	1	Enquire
171	DD33130B52AB	Support, Floor Carpet, RH	DD33130B52AB Support, Floor Carpet, RH RHD	-	1	Enquire
180	DD33311A76AA	Speaker Grille, Footwell, RH, Black	DD33311A76AA Speaker Grille, Footwell, RH, Black Black	-	1	Enquire
181	DD33311A76BA	Speaker Grille, Footwell, RH, Iridium	DD33311A76BA Speaker Grille, Footwell, RH, Iridium Iridium	-	1	Enquire
210	CD3310K973AEW	HLBRD ASSY LH	CD3310K973AEW HLBRD ASSY LH	-	1	Enquire
220	DD33311A77AA	Speaker Grille, Footwell, LH, Black	DD33311A77AA Speaker Grille, Footwell, LH, Black Black	-	1	Enquire
221	DD33311A77BA	Speaker Grille, Footwell, LH, Iridium	DD33311A77BA Speaker Grille, Footwell, LH, Iridium Iridium	-	1	Enquire
240	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8	-	1	Enquire
270	22AB628GP	ASSY FENDER MNTG BRKT OUTER LH	22AB628GP ASSY FENDER MNTG BRKT OUTER LH	-	2	Enquire
280	FD33281B11ABW	KIT ASSY SD CRPT LHD	FD33281B11ABW KIT ASSY SD CRPT LHD LHD	-	1	Enquire
281	FD33281B10ABW	KIT ASSY SD CRPT RHD	FD33281B10ABW KIT ASSY SD CRPT RHD RHD	-	1	Enquire
290	4G43831237ABW	HANDBRAKE GAITER ASSY LHD	4G43831237ABW HANDBRAKE GAITER ASSY LHD LHD	-	1	Enquire
291	4G43831236ABW	HANDBRAKE GAITER ASSY RHD	4G43831236ABW HANDBRAKE GAITER ASSY RHD RHD	-	1	Enquire
300	GD33201A49AA	SHLD SPKR GRL PR LH	GD33201A49AA SHLD SPKR GRL PR LH	-	1	Enquire
310	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	-	3	Enquire
320	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK	-	3	Enquire
330	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	-	2	Enquire
340	697564	Retainer, Push On	697564 Retainer, Push On	-	3	Enquire
350	706711	SCREW-M5x16 CSK BLK	706711 SCREW-M5x16 CSK BLK	-	4	Enquire
360	22AB631GP	ASSY FENDER MNTG BRKT OUTER RH	22AB631GP ASSY FENDER MNTG BRKT OUTER RH	-	2	Enquire
370	DD33130B14AB	Bracket, Carpet Support	DD33130B14AB Bracket, Carpet Support	-	2	Enquire
380	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	-	2	Enquire
390	AD43666A40AB	CARPET FINISHER RHS COMMON	AD43666A40AB CARPET FINISHER RHS COMMON	-	2	Enquire
400	AD43666A41AB	CARPET FINISHER LHS COMMON	AD43666A41AB CARPET FINISHER LHS COMMON	-	2	Enquire
420	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head	-	4	Enquire
430	6G3368D11BA	Screw, M5 x 20, Cap Head IN STOCK	6G3368D11BA Screw, M5 x 20, Cap Head IN STOCK	-	4	Enquire
440	6G3379231AC	Screw, M3.5 x 38, Flat Hd Csk IN STOCK	6G3379231AC Screw, M3.5 x 38, Flat Hd Csk IN STOCK	-	1	Enquire
500	DD3313242AGW	KIT DOOR PLT SCF	DD3313242AGW KIT DOOR PLT SCF	-	1	Enquire
511	6G33SS106209AAPK	BOLT-M6x20 SKT HD(2)	6G33SS106209AAPK BOLT-M6x20 SKT HD(2) Bright. Pack of 2	-	8	Enquire
520	HD3Y132A50AA	NM PLT FRT SILL SCF	HD3Y132A50AA NM PLT FRT SILL SCF 'Zagato'	-	2	Enquire
521	22AB634GP	BRKT FNDR REINF LONGI RR LH	22AB634GP BRKT FNDR REINF LONGI RR LH 'Villa D'Este'	-	2	Enquire
530	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	-	4	Enquire
540	CD333N234AA	Bracket, Foot Rest	CD333N234AA Bracket, Foot Rest RHD	-	1	Enquire
550	CD33044J08AA	Energy Absorber, Foot Rest	CD33044J08AA Energy Absorber, Foot Rest RHD	-	1	Enquire
560	22AB636GP	BRKT FNDR REINF LONGI RR RH	22AB636GP BRKT FNDR REINF LONGI RR RH RHD, Silver Pedals	-	1	Enquire
561	6G3312021AA	RH F/R COVER PLATE	6G3312021AA RH F/R COVER PLATE RHD, Black Pedals	-	1	Enquire
630	ED33L31113ACW	Trim Panel, Rear Quarter Upper, LH	ED33L31113ACW Trim Panel, Rear Quarter Upper, LH Includes items 820 & 840	-	1	Enquire
640	ED33L31112ACW	Trim Panel, Rear Quarter Upper, RH	ED33L31112ACW Trim Panel, Rear Quarter Upper, RH Includes items 830 & 850	-	1	Enquire
650	JD3YL31487AAW	MDL QTR PNL ASY LHS	JD3YL31487AAW MDL QTR PNL ASY LHS	-	1	Enquire
660	JD3YL31486AAW	MDL QTR PNL ASY RHS	JD3YL31486AAW MDL QTR PNL ASY RHS	-	1	Enquire
670	ED33L312A07AAW	Trim Panel, Rear Quarter Lower, LH	ED33L312A07AAW Trim Panel, Rear Quarter Lower, LH	-	1	Enquire
680	ED33L312A06AAW	Trim Panel, Rear Quarter Lower, RH	ED33L312A06AAW Trim Panel, Rear Quarter Lower, RH	-	1	Enquire
690	ED33L60595ABW	Panel Assembly, Rear Seat Back, LH	ED33L60595ABW Panel Assembly, Rear Seat Back, LH	-	1	Enquire
700	ED33L60594ABW	Panel Assembly, Rear Seat Back, RH	ED33L60594ABW Panel Assembly, Rear Seat Back, RH	-	1	Enquire
710	22AB133GP	POWER GAS STRUT	22AB133GP POWER GAS STRUT	-	1	Enquire
720	ED33L24858AC	BZL ASY S/BELT BC	ED33L24858AC BZL ASY S/BELT BC	-	1	Enquire
740	DD3361236AA	Bezel, Seat Belt Gap Hider Moulding	DD3361236AA Bezel, Seat Belt Gap Hider Moulding	-	2	Enquire
750	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	-	17	Enquire
760	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	-	4	Enquire
770	703732	Screw, M5 x 20, Hex Flange Head	703732 Screw, M5 x 20, Hex Flange Head	-	17	Enquire
780	W500002S440	Screw, M5 X 12, Hex Flange Head	W500002S440 Screw, M5 X 12, Hex Flange Head	-	12	Enquire
820	ED33LB605H21AA	Frame and Finisher Assembly, C-Flap, LH	ED33LB605H21AA Frame and Finisher Assembly, C-Flap, LH	-	1	Enquire
830	ED33LB605H20AA	Frame and Finisher Assembly, C-Flap, RH	ED33LB605H20AA Frame and Finisher Assembly, C-Flap, RH	-	1	Enquire
840	ED33539A37ABW	Flap Assembly, Flip Top, LH IN STOCK	ED33539A37ABW Flap Assembly, Flip Top, LH Includes items 860-900 IN STOCK	-	1	Enquire
850	ED33539A36ABW	Flap Assembly, Flip Top, RH	ED33539A36ABW Flap Assembly, Flip Top, RH Includes items 870-910	-	1	Enquire
890	4G43338013AA	PLUG BLANKING (M6) IN STOCK	4G43338013AA PLUG BLANKING (M6) IN STOCK	-	2	Enquire
900	4G43103021AB	Fix, Push On IN STOCK	4G43103021AB Fix, Push On IN STOCK	-	2	Enquire
920	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	6G3346058AA Screw, M5 x 10 Pan Head Flange Torx	-	4	Enquire
930	701440	Screw Self Tapping Washer Head 4.2 x 9.5 IN STOCK	701440 Screw Self Tapping Washer Head 4.2 x 9.5 IN STOCK	-	2	Enquire
940	701653	Spring Nut, U Type, 4.2 x 0.7-2 IN STOCK	701653 Spring Nut, U Type, 4.2 x 0.7-2 IN STOCK	-	2	Enquire
950	702211	SCREW M5x8.0x0.80 PAN HEAD IN STOCK	702211 SCREW M5x8.0x0.80 PAN HEAD IN STOCK	-	2	Enquire
