Sealing of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Sealing

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

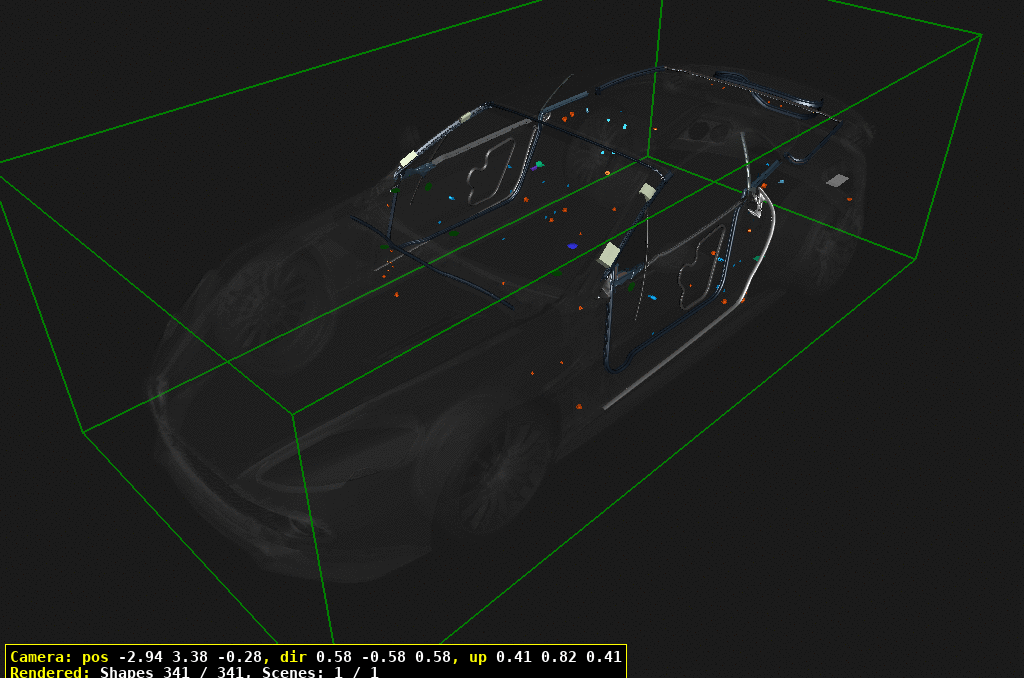

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	1	Enquire
20	6G33N804263AA	Rubber Plug, 22mm, Black Thermoplastic	6G33N804263AA Rubber Plug, 22mm, Black Thermoplastic	-	1	Enquire
30	4G43L20222AA	Small Seal Patch for Door Mod	4G43L20222AA Small Seal Patch for Door Mod	-	28	Enquire
40	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic	-	7	Enquire
50	4G43N805935AA	Flangeless Plug, Black PVC, 17mm	4G43N805935AA Flangeless Plug, Black PVC, 17mm	-	4	Enquire
60	6G33N806457AA	Rubber Plug, 20mm, Black Thermoplastic	6G33N806457AA Rubber Plug, 20mm, Black Thermoplastic	-	2	Enquire
70	6G33N804814AA	Rubber Plug, 24mm, Black Thermoplastic	6G33N804814AA Rubber Plug, 24mm, Black Thermoplastic	-	10	Enquire
80	4G43N808070AA	Rubber Plug, 19mm, Black Thermoplastic	4G43N808070AA Rubber Plug, 19mm, Black Thermoplastic	-	6	Enquire
90	4G43N811191AA	Rubber Plug, 7mm, Black Thermoplastic	4G43N811191AA Rubber Plug, 7mm, Black Thermoplastic	-	11	Enquire
100	4G43F280C09AA	A PILLAR SEALING PRISEAL FOAM BLOCK	4G43F280C09AA A PILLAR SEALING PRISEAL FOAM BLOCK	-	2	Enquire
110	7G33114C00AA	Damper Pad	7G33114C00AA Damper Pad	-	1	Enquire
120	4G43026A30AB	Baffle, Front Body Pillar	4G43026A30AB Baffle, Front Body Pillar	-	2	Enquire
130	4G43L20220AA	Seal Patch, Large 50mm	4G43L20220AA Seal Patch, Large 50mm	-	6	Enquire
140	6G3325919AA	Rubber Plug, 12mm, Black Thermoplastic	6G3325919AA Rubber Plug, 12mm, Black Thermoplastic	-	1	Enquire
150	CD337N280AA	Blanking Plug, 52mm	CD337N280AA Blanking Plug, 52mm	-	1	Enquire
180	22AA093GP	ASSY FNDR RR RH GT	22AA093GP ASSY FNDR RR RH GT	-	2	Enquire
190	00RA263	SCREW - M6X20 - BUTTON	00RA263 SCREW - M6X20 - BUTTON	-	1	Enquire
200	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	2	Enquire
210	4G43301347AA	BLACK TPR BODY PLUG 20mm	4G43301347AA BLACK TPR BODY PLUG 20mm	-	2	Enquire
220	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	702804 Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	-	3	Enquire
300	ED3329123AA	Rear Quarter Seal Extn LH	ED3329123AA Rear Quarter Seal Extn LH	-	1	Enquire
310	4G43F20921AC	Moulding Assembly, Front Door Trim Rear, LH	4G43F20921AC Moulding Assembly, Front Door Trim Rear, LH	-	1	Enquire
320	4G43L29731AD	Weatherstrip, Quarter Window Inner, LH	4G43L29731AD Weatherstrip, Quarter Window Inner, LH	-	1	Enquire
330	JD3YL25325AA	MARGIN SEAL ASSY LH	JD3YL25325AA MARGIN SEAL ASSY LH Includes item 350	-	1	Enquire
340	JD3YL25324AA	MARGIN SEAL ASSY RH	JD3YL25324AA MARGIN SEAL ASSY RH Includes item 350	-	1	Enquire
350	4G43L25324BA	Clip, Weather Strip Retention	4G43L25324BA Clip, Weather Strip Retention	-	2	Enquire
360	ED33C21510AA	WSTRIP GLS RUN RH	ED33C21510AA WSTRIP GLS RUN RH	-	1	Enquire
370	CD33C20921BB	Moulding, Front Door Trim, LH	CD33C20921BB Moulding, Front Door Trim, LH	-	1	Enquire
380	CD33C20920BB	Moulding, Front Door Trim, RH	CD33C20920BB Moulding, Front Door Trim, RH	-	1	Enquire
390	4G43F20920AC	Moulding Assembly, Front Door Trim Rear, RH	4G43F20920AC Moulding Assembly, Front Door Trim Rear, RH	-	1	Enquire
400	4G43L29730AD	Weather Strip, Quarter Window Inner, RH	4G43L29730AD Weather Strip, Quarter Window Inner, RH	-	1	Enquire
410	ED3329122AA	Rear Quarter Seal Extn RH	ED3329122AA Rear Quarter Seal Extn RH	-	1	Enquire
420	4G43L20708BC	Weatherstrip Assy, B Post, RH	4G43L20708BC Weatherstrip Assy, B Post, RH	-	1	Enquire
440	ED33F20571AA	Weather Strip, Door Inner Panel, LH	ED33F20571AA Weather Strip, Door Inner Panel, LH	-	1	Enquire
450	ED33F20570AA	Weather Strip, Door Inner Panel, RH	ED33F20570AA Weather Strip, Door Inner Panel, RH	-	1	Enquire
460	4G43L20709BC	Weatherstrip Assy, B Post, LH	4G43L20709BC Weatherstrip Assy, B Post, LH	-	1	Enquire
470	ED33C21511AA	WSTRIP GLS RUN LH	ED33C21511AA WSTRIP GLS RUN LH	-	1	Enquire
480	4G4354237A04AC	WEATHER STRIP DOOR INNER PANEL - DOOR TRIM	4G4354237A04AC WEATHER STRIP DOOR INNER PANEL - DOOR TRIM	-	2	Enquire
490	ED33F20708AD	DR PRIM SEAL CONV	ED33F20708AD DR PRIM SEAL CONV	-	1	Enquire
500	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head	-	4	Enquire
510	HD3YC02565AA	W/STRIP RET FRT BDY	HD3YC02565AA W/STRIP RET FRT BDY	-	1	Enquire
520	HD3YC02564AA	W/STRIP RET FRT BDY	HD3YC02564AA W/STRIP RET FRT BDY	-	1	Enquire
530	13A6385CP	HANDLE - BONNET RELEASE	13A6385CP HANDLE - BONNET RELEASE	-	1	Enquire
540	CD3316K816AA	Weatherstrip Extrusion, Bonnet Rear	CD3316K816AA Weatherstrip Extrusion, Bonnet Rear	-	1	Enquire
550	ED3303827AC	Weatherstrip, Body Side / Tonneau, LH	ED3303827AC Weatherstrip, Body Side / Tonneau, LH	-	1	Enquire
560	6G33L02564BA	FIR TREE FIX 4.0 X 0.76 - 5.94	6G33L02564BA FIR TREE FIX 4.0 X 0.76 - 5.94	-	1	Enquire
570	00RA588	BOLT - M8X1.25X14	00RA588 BOLT - M8X1.25X14	-	1	Enquire
580	13A6301CP	STRIKER - BONNET LATCH	13A6301CP STRIKER - BONNET LATCH	-	1	Enquire
590	ED33L51452AB	Weatherstrip Assy, Tonneau	ED33L51452AB Weatherstrip Assy, Tonneau	-	1	Enquire
600	ED3353784AA	Retainer, Weatherstrip	ED3353784AA Retainer, Weatherstrip	-	1	Enquire
610	707147	NUT-M5 HEX FLG GRD 8	707147 NUT-M5 HEX FLG GRD 8	-	7	Enquire
620	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	7	Enquire
