Occupant Restraining Device

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Occupant Restraining Device

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

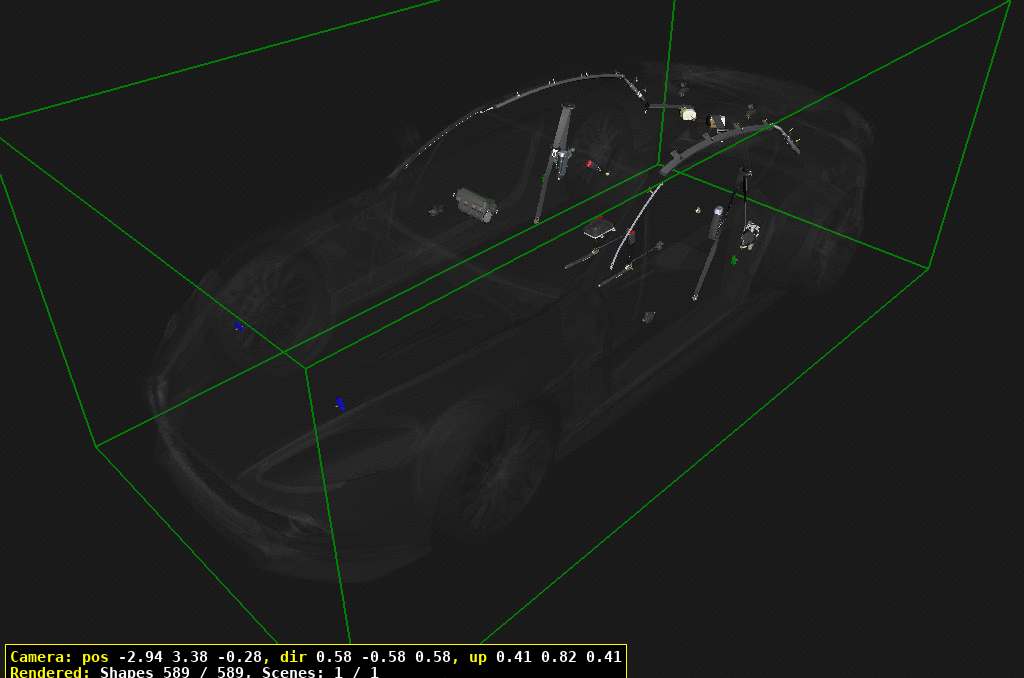

Occupant Restraining Device of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- - Enquire
20 CD33611B70ACW
BLT RETR ASY FRT ST 		- 1 Enquire
30 CD33611B69ACW
BELT RETR ASY FRT ST 		- 1 Enquire
40 703121
Screw, M8 x 25, Hex Flange Head 		- 12 Enquire
50 CD3360259AB
Bracket, Front Seat Belt Reinforcement, LH 		- 1 Enquire
60 CD3360258AB
Bracket, Front Seat Belt Reinforcement, RH 		- 1 Enquire
70 DG43V248A66AA
Plate, Cage Nut 		- 2 Enquire
80 DD33610E55AA
Buckle, Pretensioner Seat Belt, LH 		- 1 Enquire
90 DD33610E54AA
Buckle, Pretensioner Seat Belt, RH 		- 1 Enquire
100 4G43611B68CFW
REAR SEATBELT ASSEMBLY (WARM CHARCOAL) 		- 2 Enquire
110 4G43613K21BD
Buckle Assy, Rear Seat Belt, LH 		- 1 Enquire
120 4G43613K23BD
Buckle Assy, Rear Seat Belt, RH 		- 1 Enquire
150 4G43044H31AA
Airbag Assy, Passenger 		- 1 Enquire
160 702637
SCREW M6X20 SKT HD 		- 4 Enquire
170 6G3314B268AA
Switch, Passenger Air Bag Deactivation 		- 1 Enquire
180 CD33A14K159AE
Module Assy, Side Curtain, LHS 		- 1 Enquire
190 CD33A14K158AE
Module Assy, Side Curtain, RHS 		- 2 Enquire
200 6G3351756AAPK
Screw M5 x 13 Pan Head Pack (10)
Pack of 10 		- 2 Enquire
210 FD33611D10AC
FRT ST SD A/B LH 		- 1 Enquire
220 FD33611D11AC
FRT ST SD A/B RH 		- 1 Enquire
230 15AC862CP
DOOR LATCH - SOFT CLOSE - LH 		- 1 Enquire
240 FD3314K156AB
ST MNT SIDE AIRBAG R 		- 1 Enquire
250 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		- 4 Enquire
300 DD3314C246AA
Module, Restraints Control 		- 2 Enquire
310 702840
Nut & Washer, M6, Hex Flange Head 		- 2 Enquire
320 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20) 		- 2 Enquire
330 4G433710932
Sensor Occupant Restraint System UPR Front 		- 2 Enquire
340 4G433710931
Sensor, Occupant Restraint, Side Impact 		- 2 Enquire
350 703199
Bolt M6x30 HEX FLG Chrome Free 		- 4 Enquire
360 6G433710240
Sensor, Restraint System Side Impact Pressure Sensor 		- 2 Enquire
400 4G438010958
Bracket Assembly, Child Seat Belt Anchorage 		- 2 Enquire
410 702847
SCREW-M6x25 PAN INT LOB 8 		- 4 Enquire
420 4G43600B32AB
Adaptor Bracket, Rear Child Seat Tether Anchor 		- 2 Enquire
