Seating of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

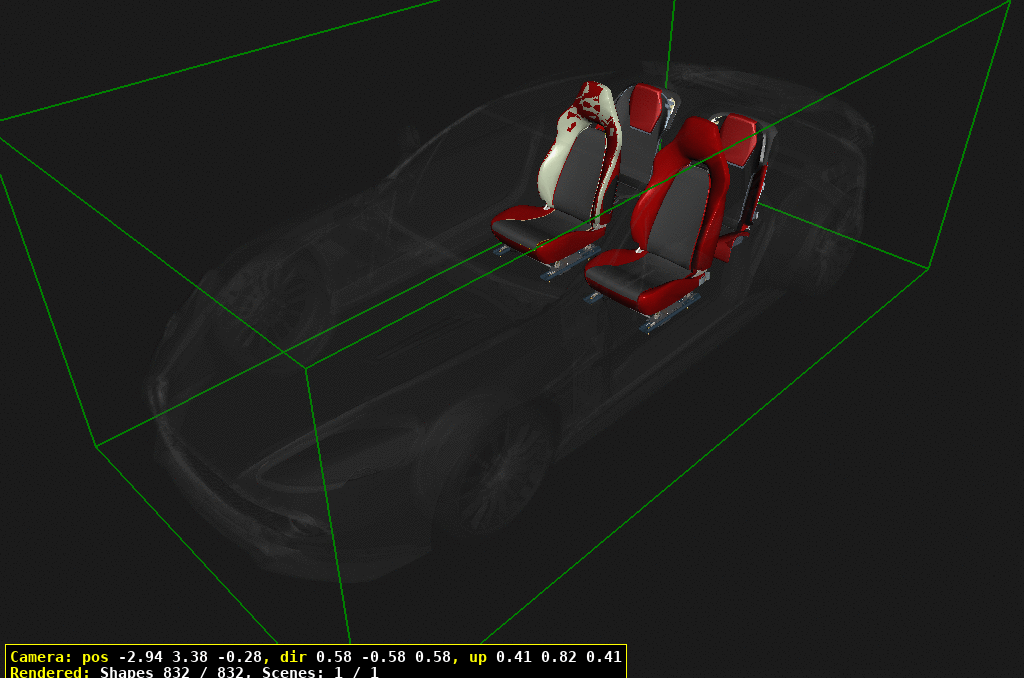

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Seating

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	FD3360009ADW	ASSY FRONT SEAT LHS	FD3360009ADW ASSY FRONT SEAT LHS	-	1	Enquire
21	FD3360008ADW	ASSY FRONT SEAT RHS	FD3360008ADW ASSY FRONT SEAT RHS	-	1	Enquire
30	706423	SCREW-M8 x 25 HF PI	706423 SCREW-M8 x 25 HF PI	-	8	Enquire
40	FD3360051ABW	ASSY FRT ST CSHN	FD3360051ABW ASSY FRT ST CSHN	-	1	Enquire
41	FD3360050ABW	ASSY FRT ST CSHN	FD3360050ABW ASSY FRT ST CSHN	-	1	Enquire
50	FD3360137ACW	ASY FRT ST SQB LH	FD3360137ACW ASY FRT ST SQB LH	-	1	Enquire
51	FD3360136ACW	ASY FRT ST SQB RH	FD3360136ACW ASY FRT ST SQB RH	-	1	Enquire
60	AD43L60344AC	FRONT SEAT CUSHION FRAME HEIGHT ADJ	AD43L60344AC FRONT SEAT CUSHION FRAME HEIGHT ADJ	-	1	Enquire
61	AD43L60344BC	ASSY FRONT SEAT CUSHION FRAME NON HEIGHT	AD43L60344BC ASSY FRONT SEAT CUSHION FRAME NON HEIGHT OCS	-	1	Enquire
62	CD33V604K40AB	Frame, Front Seat Cushion	CD33V604K40AB Frame, Front Seat Cushion ISOfix	-	2	Enquire
70	CD3362900ABW	Cover Assy, Front Seat Cushion	CD3362900ABW Cover Assy, Front Seat Cushion	-	2	Enquire
80	CD339515DA	FRT ST CSHN FOAM	CD339515DA FRT ST CSHN FOAM	-	2	Enquire
81	22AA804GP	ASSY BRKT RR FENDER RR LH	22AA804GP ASSY BRKT RR FENDER RR LH Climate	-	2	Enquire
90	FD3364573ABW	ASSY FRT ST SQB CVR	FD3364573ABW ASSY FRT ST SQB CVR	-	1	Enquire
91	FD3364572ABW	ASSY FRT ST SQB CVR	FD3364572ABW ASSY FRT ST SQB CVR	-	1	Enquire
100	AD434D9513AA	Foam, Squab	AD434D9513AA Foam, Squab	-	2	Enquire
101	AD434D9513BA	FRONT SEAT SQUAB FOAM CLIMATE	AD434D9513BA FRONT SEAT SQUAB FOAM CLIMATE Climate	-	2	Enquire
110	CD33600B68AB	Heating Element, Cushion	CD33600B68AB Heating Element, Cushion	-	2	Enquire
120	AD4314D696AB	Heating Element, Squab	AD4314D696AB Heating Element, Squab	-	2	Enquire
140	22AA805GP	ASSY BRKT RR FENDER RR RH	22AA805GP ASSY BRKT RR FENDER RR RH	-	1	Enquire
141	CD3364800AG	FRT ST SQB FRAM MEM	CD3364800AG FRT ST SQB FRAM MEM	-	1	Enquire
150	CD33110002AB	Panel, Seat Back Extension Side, Outboard, RH	CD33110002AB Panel, Seat Back Extension Side, Outboard, RH	-	1	Enquire
151	CD33110003AB	Panel, Seat Back Extension Side, Outboard, LH	CD33110003AB Panel, Seat Back Extension Side, Outboard, LH	-	1	Enquire
160	CD33110002BA	Panel, Seat Back Extension Side, Inboard, RH	CD33110002BA Panel, Seat Back Extension Side, Inboard, RH	-	1	Enquire
161	CD33110003BA	Panel, Seat Back Extension Side, Inboard, LH	CD33110003BA Panel, Seat Back Extension Side, Inboard, LH	-	1	Enquire
170	AD43600B66AA	ST CLMT ECU	AD43600B66AA ST CLMT ECU	-	2	Enquire
180	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	20	Enquire
190	W502670S442	Screw, 4.2 x 16, Self Tapping	W502670S442 Screw, 4.2 x 16, Self Tapping	-	8	Enquire
200	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	8	Enquire
210	CD33600E68AAW	Panel, Seat Back Finisher, Inner	CD33600E68AAW Panel, Seat Back Finisher, Inner	-	2	Enquire
220	22AA813GP	ASSY BRKT RR FENDER INR LH	22AA813GP ASSY BRKT RR FENDER INR LH	-	2	Enquire
230	CD33605W00AC	ST REL STRAP	CD33605W00AC ST REL STRAP	-	2	Enquire
240	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic	-	4	Enquire
250	CD33M2D455AA	Vac Form, Seat Airbag, RH	CD33M2D455AA Vac Form, Seat Airbag, RH	-	1	Enquire
251	CD33M2D456AA	FRT ST SAB VAC FORM	CD33M2D456AA FRT ST SAB VAC FORM	-	1	Enquire
270	703177	M5 TORX SCREW CHROME FREE	703177 M5 TORX SCREW CHROME FREE	-	2	Enquire
280	AD4314C288BB	SNS FRT ST BELT RMDR	AD4314C288BB SNS FRT ST BELT RMDR	-	2	Enquire
290	22AA815GP	ASSY BRKT RR FENDER INR RH	22AA815GP ASSY BRKT RR FENDER INR RH	-	2	Enquire
310	AD4361538AA	BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO	AD4361538AA BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO	-	8	Enquire
400	CD3360595AAW	Bolster Panel Assy, Rear Seat, LH	CD3360595AAW Bolster Panel Assy, Rear Seat, LH	-	1	Enquire
410	CD3360594AAW	Bolster Panel Assy, Rear Seat, RH	CD3360594AAW Bolster Panel Assy, Rear Seat, RH	-	1	Enquire
420	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
430	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	2	Enquire
440	703076	Screw, M4 x 20, Flat Socket Countersunk	703076 Screw, M4 x 20, Flat Socket Countersunk	-	4	Enquire
450	22AA679GP	BRKT RR FENDER UPR LH	22AA679GP BRKT RR FENDER UPR LH Bronze	-	1	Enquire
451	CD33611B91ABW	Bezel, Rear Seatbelt, LH	CD33611B91ABW Bezel, Rear Seatbelt, LH	-	1	Enquire
460	22AA680GP	BRKT RR FENDER UPR RH	22AA680GP BRKT RR FENDER UPR RH Bronze	-	1	Enquire
461	CD33611B90ABW	Bezel, Rear Seatbelt, RH	CD33611B90ABW Bezel, Rear Seatbelt, RH	-	1	Enquire
470	HD3Y60033AAW	RR ST BK ASY LH CPE	HD3Y60033AAW RR ST BK ASY LH CPE Includes item 570, 590	-	1	Enquire
480	HD3Y60032AAW	RR ST BK ASY RH CPE	HD3Y60032AAW RR ST BK ASY RH CPE Includes item 570, 590	-	1	Enquire
490	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	4	Enquire
500	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	4	Enquire
510	CD3363847AAW	Lumbar Pad, Rear Seat, LH	CD3363847AAW Lumbar Pad, Rear Seat, LH Includes item 570, 580	-	1	Enquire
520	CD3363846AAW	Lumbar Pad, Rear Seat, RH	CD3363846AAW Lumbar Pad, Rear Seat, RH Includes item 570, 580	-	1	Enquire
530	HD3Y60081AAW	REAR SEAT CUSHION	HD3Y60081AAW REAR SEAT CUSHION	-	1	Enquire
540	HD3Y60080AAW	REAR SEAT CUSHION	HD3Y60080AAW REAR SEAT CUSHION	-	1	Enquire
550	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	4	Enquire
560	4G4341171AB	Bracket, Squab Rear Fixing	4G4341171AB Bracket, Squab Rear Fixing	-	2	Enquire
570	4G43C045F70AB	RETAINER PASSENGER AIRBAG COVER PAD	4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD	-	16	Enquire
580	701561	RIVET 4.0x6.4-9.5	701561 RIVET 4.0x6.4-9.5	-	8	Enquire
590	701356	Rivet, Blind, M4x10	701356 Rivet, Blind, M4x10	-	8	Enquire
600	ED33L60032AFW	BK ASY RR ST TR RH	ED33L60032AFW BK ASY RR ST TR RH Includes item 680, 730	-	1	Enquire
610	ED33L60033AFW	BK ASY RR ST LH	ED33L60033AFW BK ASY RR ST LH Includes item 680, 730	-	1	Enquire
630	7G43L64216AC	Bracket, Rear Squab Support, RH	7G43L64216AC Bracket, Rear Squab Support, RH	-	1	Enquire
640	4G43L672A21ABW	Panel Assembly, Rear Seat Side Lower, LH	4G43L672A21ABW Panel Assembly, Rear Seat Side Lower, LH	-	1	Enquire
650	4G43L672A20ABW	Panel Assembly, Rear Seat Side Lower, RH	4G43L672A20ABW Panel Assembly, Rear Seat Side Lower, RH	-	1	Enquire
660	ED33L63847AAW	Pad Assembly, Rear Cushion Lower, LH	ED33L63847AAW Pad Assembly, Rear Cushion Lower, LH Includes item 680	-	1	Enquire
670	ED33L63846AAW	Pad Assembly, Rear Cushion Lower, RH	ED33L63846AAW Pad Assembly, Rear Cushion Lower, RH Includes item 680	-	1	Enquire
680	4G43C045F70AB	RETAINER PASSENGER AIRBAG COVER PAD	4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD	-	8	Enquire
690	ED3360081ABW	Cushion Assembly, Rear Seat, LH	ED3360081ABW Cushion Assembly, Rear Seat, LH	-	1	Enquire
700	ED3360080ABW	Cushion Assembly, Rear Seat, RH	ED3360080ABW Cushion Assembly, Rear Seat, RH	-	1	Enquire
710	ED33465T10ABW	Head Rest, Rear Seat	ED33465T10ABW Head Rest, Rear Seat	-	2	Enquire
720	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	12	Enquire
730	701561	RIVET 4.0x6.4-9.5	701561 RIVET 4.0x6.4-9.5	-	4	Enquire
740	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	8	Enquire
