Wipers and Washers of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

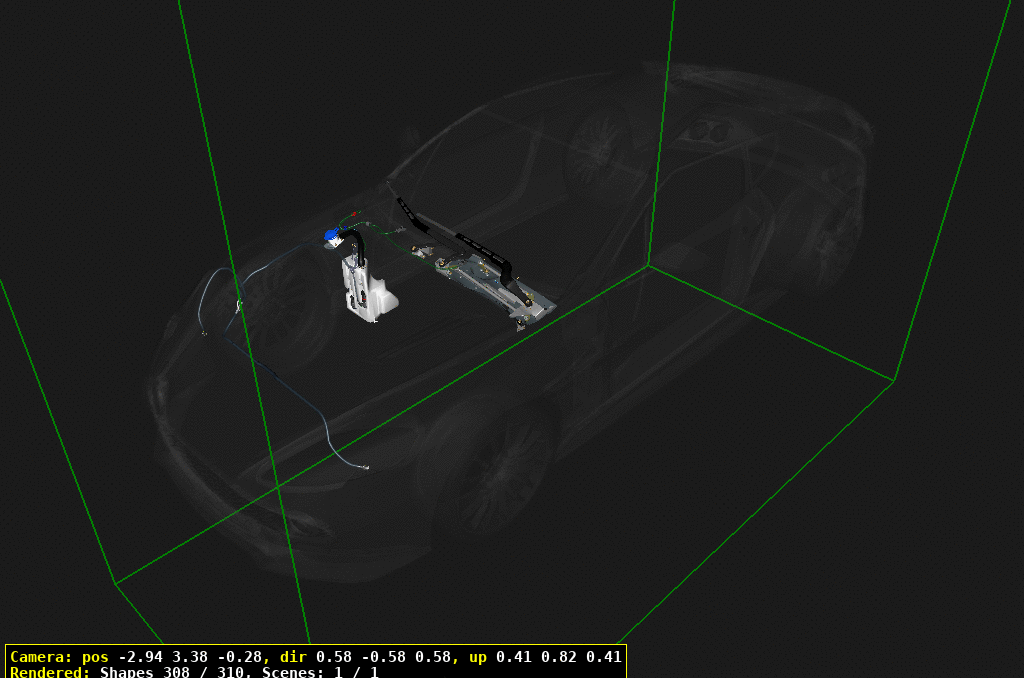

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Wipers and Washers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	CG4317B437AA	W/S WIPER BLADE - DRIVER LHD	CG4317B437AA W/S WIPER BLADE - DRIVER LHD LHD	-	1	Enquire
21	CG4317528BA	W/S WIPER BLADE - DRIVER RHD	CG4317528BA W/S WIPER BLADE - DRIVER RHD RHD	-	1	Enquire
30	CG4317528AA	W/S wiper Blade - Passenger LHD	CG4317528AA W/S wiper Blade - Passenger LHD LHD	-	1	Enquire
31	CG4317B437BA	WINDSCREEN WIPER BLADE - PASSENGER RHD	CG4317B437BA WINDSCREEN WIPER BLADE - PASSENGER RHD RHD	-	1	Enquire
40	CG4317527CA	Arm Assy, Wiper, LHS, LHD	CG4317527CA Arm Assy, Wiper, LHS, LHD LHD	-	1	Enquire
41	CG4317526DA	Arm Assy, Wiper, RHS, RHD	CG4317526DA Arm Assy, Wiper, RHS, RHD RHD	-	1	Enquire
50	DG4317526CA	Arm Assy Wiper, RHS, LHD	DG4317526CA Arm Assy Wiper, RHS, LHD LHD	-	1	Enquire
51	DG4317527DA	Arm Assy Wiper, LHS, RHD	DG4317527DA Arm Assy Wiper, LHS, RHD RHD	-	1	Enquire
60	700230	NUT M8 HEX FLG	700230 NUT M8 HEX FLG	-	1	Enquire
70	703160PK	Nut M10 HEX Flange (Pack of 10)	703160PK Nut M10 HEX Flange (Pack of 10) Pack of 10	-	2	Enquire
80	4G4317D559BA	Seal, Windshield Wiper Spindle	4G4317D559BA Seal, Windshield Wiper Spindle	-	3	Enquire
90	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	2	Enquire
100	702946	Bolt, M6 x 35, Hex Head	702946 Bolt, M6 x 35, Hex Head	-	2	Enquire
110	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	2	Enquire
120	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head	-	2	Enquire
130	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	1	Enquire
140	DG4317506AA	Adjuster Assembly, Inboard	DG4317506AA Adjuster Assembly, Inboard Includes items 150-170	-	1	Enquire
160	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right	-	1	Enquire
180	DG4317507AA	Adjuster Assembly, Outboard	DG4317507AA Adjuster Assembly, Outboard Includes items 190-210	-	1	Enquire
190	DG4317510AA	Outboard Mount, Wiper Linkage	DG4317510AA Outboard Mount, Wiper Linkage	-	1	Enquire
210	702994	Nut, M6, Hex Head Thin	702994 Nut, M6, Hex Head Thin	-	1	Enquire
220	DG4317504CA	Linkage Assembly, Windscreen Wiper, LHD	DG4317504CA Linkage Assembly, Windscreen Wiper, LHD LHD, Includes items230-240	-	1	Enquire
221	DG4317504DB	LINKAGE ASY W/S WPR	DG4317504DB LINKAGE ASY W/S WPR RHD, Includes items230-240	-	1	Enquire
230	AG4367350AA	WIPER MOTOR TRICO	AG4367350AA WIPER MOTOR TRICO	-	1	Enquire
250	4G43277B34AA	CAP STUD	4G43277B34AA CAP STUD	-	1	Enquire
260	DG4317500CA	Slave Spindle Bracket, LHD	DG4317500CA Slave Spindle Bracket, LHD LHD	-	1	Enquire
261	DG4317500DA	Slave Spindle Bracket, RHD	DG4317500DA Slave Spindle Bracket, RHD RHD	-	1	Enquire
300	22AA403GP	GAS STRUT BONNET	22AA403GP GAS STRUT BONNET Locally Sourced	-	A/R	Enquire
310	ED33FA0115AA	SCREW M6x20 TORX HD	ED33FA0115AA SCREW M6x20 TORX HD	-	3	Enquire
320	4G4317B613BA	Reservoir & Motor Assembly	4G4317B613BA Reservoir & Motor Assembly Includes items 330-400	-	1	Enquire
340	4G430110304	Motor & Pump, Windscreen Washer	4G430110304 Motor & Pump, Windscreen Washer	-	1	Enquire
350	1X4317673AA	Grommet, Sealing Windscreen Wash Pump	1X4317673AA Grommet, Sealing Windscreen Wash Pump	-	1	Enquire
370	4G4313K175AC	ASY FILL NECK	4G4313K175AC ASY FILL NECK	-	1	Enquire
380	701562	Clamp, Worm Drive 30-45mm	701562 Clamp, Worm Drive 30-45mm	-	2	Enquire
390	4G430110305	Pump Headlight Wash	4G430110305 Pump Headlight Wash	-	1	Enquire
400	1X4313K188AA	Grommet, Sealing Headlamp Pump	1X4313K188AA Grommet, Sealing Headlamp Pump	-	1	Enquire
410	DG4317Z605AB	Tube Assembly, Windscreen Wash	DG4317Z605AB Tube Assembly, Windscreen Wash	-	1	Enquire
420	4G4317666BA	Jet Assembly, Windscreen Washer, Non Heated	4G4317666BA Jet Assembly, Windscreen Washer, Non Heated	-	2	Enquire
430	6G3313K175BA	Filler Neck Assembly	6G3313K175BA Filler Neck Assembly	-	1	Enquire
440	702518	CLIP 8.0X11 PIPE EDGE STL	702518 CLIP 8.0X11 PIPE EDGE STL	-	3	Enquire
450	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) Pack of 100	-	1	Enquire
460	703266	Screw M6 x 10 Pan Head Torx	703266 Screw M6 x 10 Pan Head Torx	-	2	Enquire
470	701617	Clip, 7.0 x 6.0 x2.0	701617 Clip, 7.0 x 6.0 x2.0	-	1	Enquire
480	707147	NUT-M5 HEX FLG GRD 8	707147 NUT-M5 HEX FLG GRD 8	-	2	Enquire
500	4G4317614AB	Bracket Assembly, Windshield Washer Reservoir Mounting	4G4317614AB Bracket Assembly, Windshield Washer Reservoir Mounting	-	1	Enquire
510	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	2	Enquire
520	6G333710501	STRAP & CLIP 5.45 x 6 x 0.9	6G333710501 STRAP & CLIP 5.45 x 6 x 0.9	-	1	Enquire
550	AD4313C100AB	Hose Assembly, Headlamp Power Wash	AD4313C100AB Hose Assembly, Headlamp Power Wash	-	1	Enquire
