Rear View Mirrors

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Rear View Mirrors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

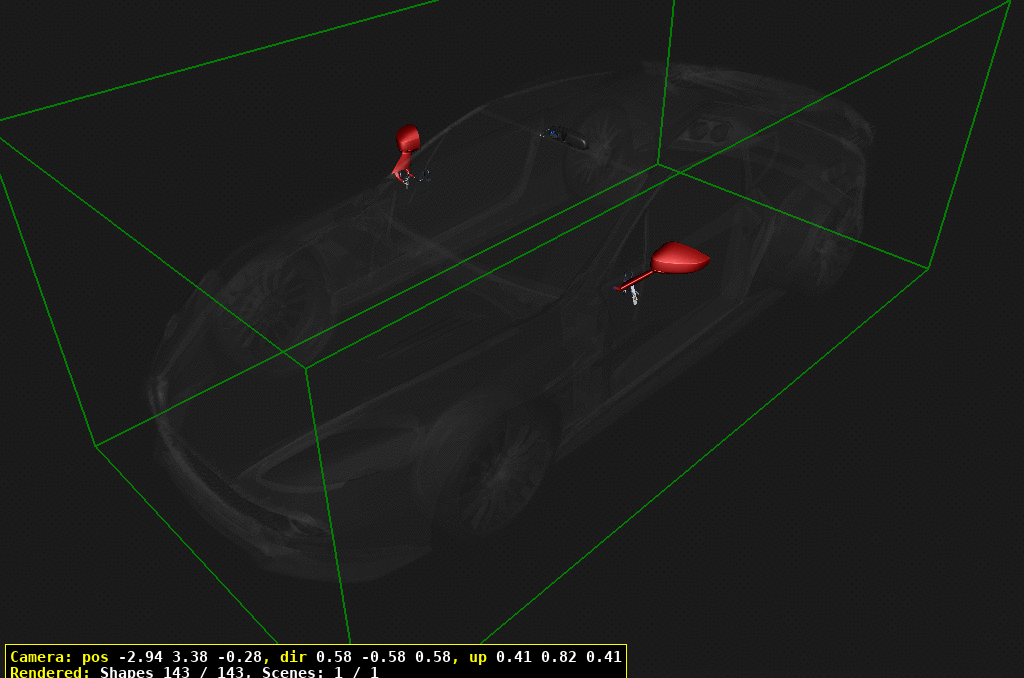

Rear View Mirrors of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
20 7G4317700AD
Interior Rear View Mirror Auto Dimming 		- 1 Enquire

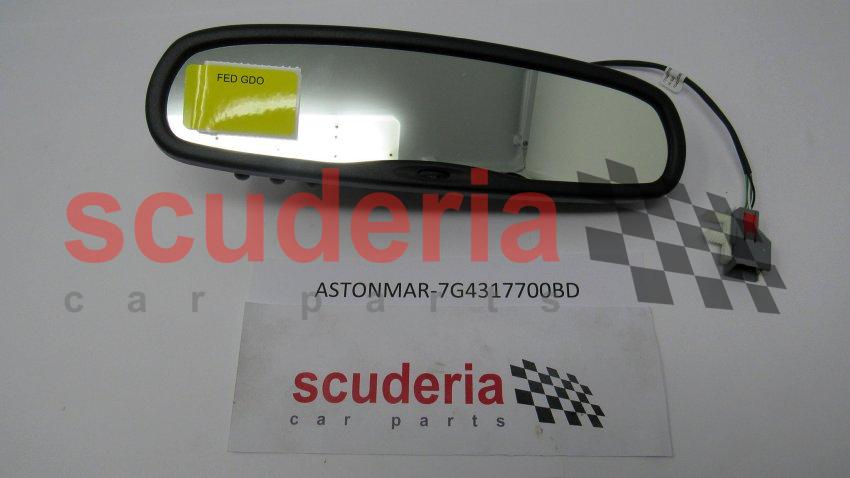

21 7G4317700BD
Mirror, Interior Rear View, Auto Dimming, Garage Door Opener
Federal 		- 1 Enquire
22 7G4317700CD
Mirror, Interior Rear View, Auto Dimming, Garage Door Opener
UK, Europe 		- 1 Enquire
100 HD3Y17K695AB
MIRROR KIT ASSY LH 		- 1 Enquire
110 HD3Y17K694AB
MIRROR KIT ASSY RH 		- 1 Enquire
120 FD4Y39979063AA
MIRROR CAP ASSY LH 		- 1 Enquire
130 FD4Y39979062AA
MIRROR CAP ASSY RH 		- 1 Enquire
140 FD4Y14K161AA
EXT MIRROR BEZEL LH 		- 1 Enquire
150 FD4Y14K162AA
EXT MIR BEZEL RH 		- 1 Enquire
160 FD4Y9184AB
GSKT - MIRROR BASE 		- 2 Enquire
170 AD4351756AA
SCREW M4 X 12 S/T
2 per Assembly 		- 4 Enquire
180 AD4327960AA
SCREW M8 X 20 CSK HEAD HEX DRIVE ERD 8.8 		- 2 Enquire
190 22AA797GP
ASSY BRKT RR FENDER FRT RH 		- - Enquire
200 HD3Y3710005
MIRROR REP KIT-LH-GC
GCC 		- 1 Enquire
201 HD3Y3710007
MIRROR REP KT-LH-EU
Europe 		- 1 Enquire
202 HD3Y3710009
MIRROR REP KT-LH-NAS
Federal 		- 1 Enquire
210 HD3Y3710004
MIRROR REP KIT-RH-GC
GCC 		- 1 Enquire
211 HD3Y3710006
MIRROR REP KT-RH-EU
Europe 		- 1 Enquire
212 HD3Y3710008
MIRROR REP KT-RH-NAS
Federal 		- 1 Enquire
220 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		- 4 Enquire

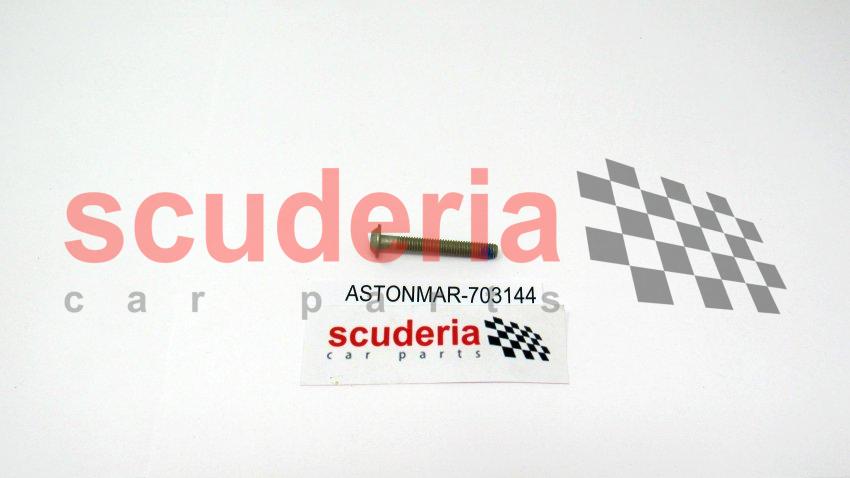

230 703144
Bolt M6 x 45 Pan Flange Torx 8 Chrome Free 		- 4 Enquire
240 CD3327951AC
STRUT MIRROR LH 		- 1 Enquire
250 CD3327950AC
STRUT MIRROR RH 		- 1 Enquire
260 HD3Y17E943AB
MIRROR BASE LH 		- 1 Enquire
270 HD3Y17E942AB
MIRROR BASE RH 		- 1 Enquire
