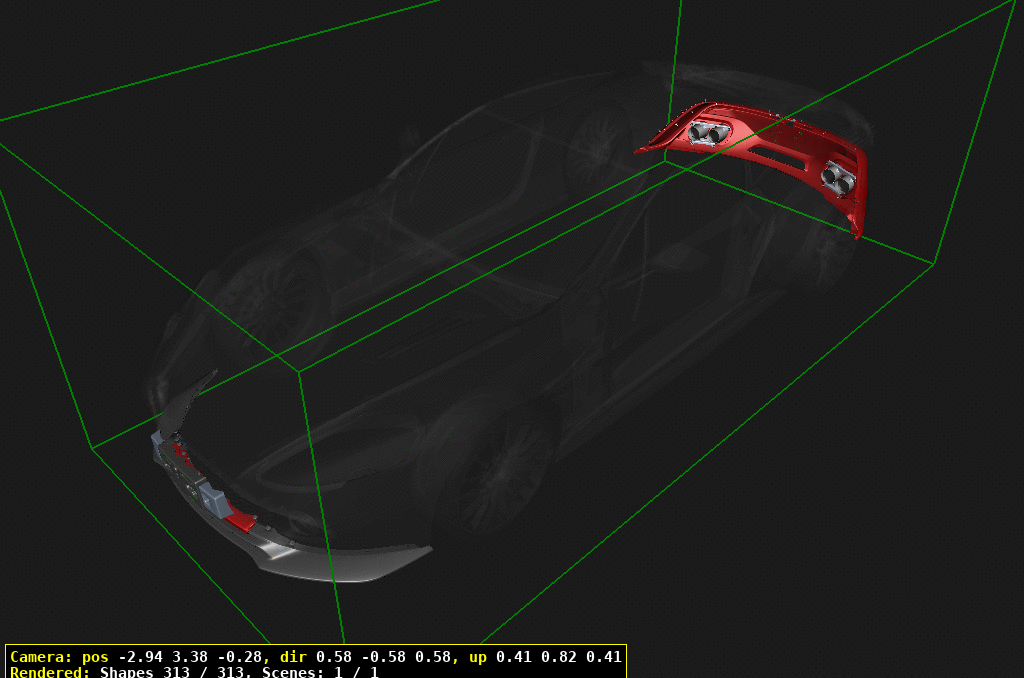

Bumpers of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Bumpers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	22AA421GP	ASSY DOOR RH	22AA421GP ASSY DOOR RH	-	1	Enquire
30	HD3Y17B968AB	FRT SPLTR CRBN GLOSS	HD3Y17B968AB FRT SPLTR CRBN GLOSS Carbon Gloss	-	1	Enquire
31	HD3Y17B968BB	FRT SPLTR SATIN	HD3Y17B968BB FRT SPLTR SATIN Satin	-	1	Enquire
32	22AA407GP	ASSY DOOR LH	22AA407GP ASSY DOOR LH Natural	-	1	Enquire
40	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	4	Enquire
50	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	14	Enquire
60	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	8	Enquire
70	HD3Y5E206AA	FRONT LOWER GURNEY	HD3Y5E206AA FRONT LOWER GURNEY	-	1	Enquire
100	HD3Y17E955AE	DIFF RR BMPR CBN GLS	HD3Y17E955AE DIFF RR BMPR CBN GLS Carbon Gloss	-	1	Enquire
101	22AD320GP	FRT DOOR STONE CHIP PROTECTOR LH	22AD320GP FRT DOOR STONE CHIP PROTECTOR LH Satin	-	1	Enquire
102	22AD321GP	FRT DOOR STONE CHIP PROTECTOR RH	22AD321GP FRT DOOR STONE CHIP PROTECTOR RH Natural	-	1	Enquire
110	HD335K239AB	TAIL PIPE FINSHR LH	HD335K239AB TAIL PIPE FINSHR LH Stainless	-	1	Enquire
111	HD335K239BB	TAILPIPE FINISHER LH	HD335K239BB TAILPIPE FINISHER LH Zircotec	-	1	Enquire
120	HD335K238AB	TL PP FNSHR RH STNLS	HD335K238AB TL PP FNSHR RH STNLS Stainless	-	1	Enquire
121	HD335K238BB	TAIL PIPE FINISHER R	HD335K238BB TAIL PIPE FINISHER R Zircotec	-	1	Enquire
130	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	8	Enquire
140	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	8	Enquire
150	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10) Pack of 10	-	8	Enquire
160	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10) Pack of 10	-	8	Enquire
170	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	10	Enquire
180	14AB009CP	EXTERIOR DOOR OPEN SWITCH	14AB009CP EXTERIOR DOOR OPEN SWITCH	-	2	Enquire
200	HD3Y16E146BA	STRUCT FRT END BOLST	HD3Y16E146BA STRUCT FRT END BOLST	-	1	Enquire
210	HD3Y17A835AA	NMBR PLT PLINTH ASSY	HD3Y17A835AA NMBR PLT PLINTH ASSY Federal, GCC, Canada	-	1	Enquire
220	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	4	Enquire
230	HD3Y17K853AA	FED PLINTH PSHR PLTE	HD3Y17K853AA FED PLINTH PSHR PLTE	-	1	Enquire
240	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	4	Enquire
250	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	3	Enquire
260	HD3Y17A835DA	FRT PLT PLINTH ROW	HD3Y17A835DA FRT PLT PLINTH ROW RoW	-	1	Enquire
270	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
280	HD3Y16E146DA	FRONT END BOLSTER	HD3Y16E146DA FRONT END BOLSTER RoW	-	1	Enquire
290	HD3Y17A835EA	NMBR PLT PLINTH ASSY	HD3Y17A835EA NMBR PLT PLINTH ASSY Switzerland	-	1	Enquire
300	HD3Y17K853AA	FED PLINTH PSHR PLTE	HD3Y17K853AA FED PLINTH PSHR PLTE	-	1	Enquire
310	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	2	Enquire
360	702510PK	Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	702510PK Screw & Washer 4.8 x 19 Pan Head (Pack of 5) Pack of 5	-	4	Enquire
370	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	4	Enquire
