Centre Console

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Centre Console

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

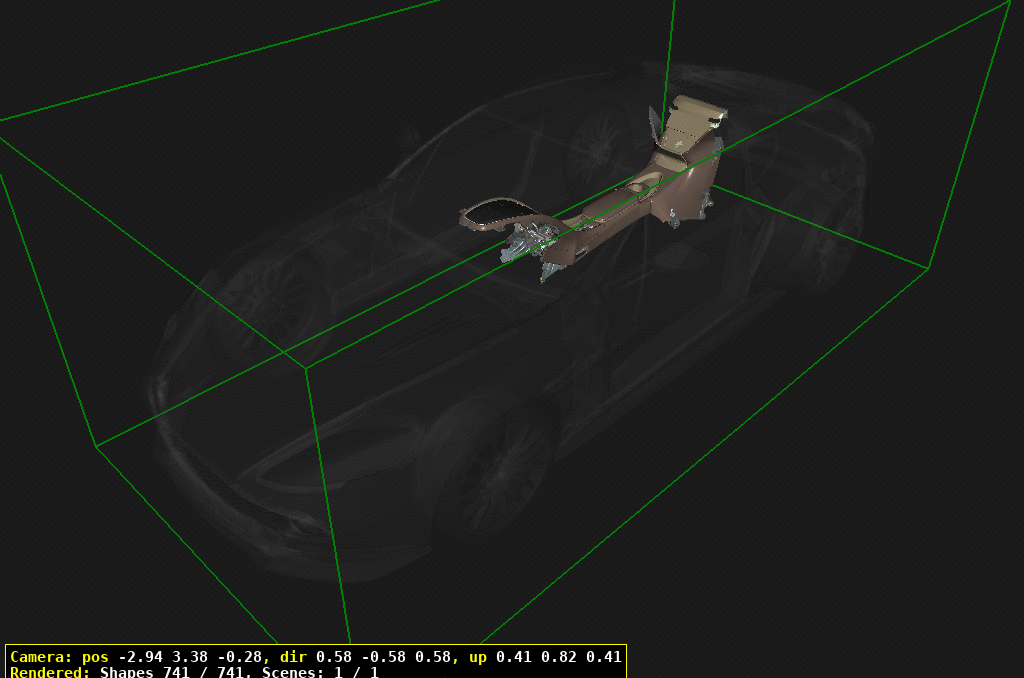

Centre Console of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
1 - 7 ED33-043C38-AA Bezel, Outer Air Register, RH 1 Satin Chrome - ED33-043C38-BA Bezel, Outer Air Register, RH 1 Dark Chrome 8 ED33-043C39-AA Bezel, Outer Air Register, LH 1 Satin Chrome - ED33-043C39-BA Bezel, Outer Air Register, LH 1 Dark Chrome 9 4G43 1 - 7 ED33-043C38-AA Bezel, Outer Air Register, RH 1 Satin Chrome - ED33-043C38-BA Bezel, Outer Air Register, RH 1 Dark Chrome 8 ED33-043C39-AA Bezel, Outer Air Register, LH 1 Satin Chrome - ED33-043C39-BA Bezel, Outer Air Register, LH 1 Dark Chrome 9 4G43
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
20 703264
SCREW-M6 x 14 HEX HD 		- 8 Enquire
30 705464
Screw, 4.2 x 16, Washer Head, Self Tapping 		- 2 Enquire
40 701573
Screw and Washer, M4 x 16, Pan Head 		- 4 Enquire
50 703085
Screw M6x12 PC TI8 		- 2 Enquire
60 DD3355210AHW
PNL ASSY INSTR CTR 		- 1 Enquire
70 DD3304568AC
IP GTR SUB CNSL BRKT 		- 1 Enquire
80 DD3304567AC
IP CTR SUB CNSL BRKT 		- 1 Enquire
90 701171
SCREW M4x16 THREAD FORMING 		- 4 Enquire
100 707141
SCREW-M5 x 20 PAN HD 		- 4 Enquire
110 DD3304559DA
LHS CTR STK SUPP BRK 		- 1 Enquire
120 DD3304559CA
RHS CTR STK SUPP BRK 		- 1 Enquire
130 703177
M5 TORX SCREW CHROME FREE 		- 2 Enquire
140 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		- 2 Enquire
150 CD3314853AE
CENTRE STACK VNR
Black 		- 1 Enquire
151 CD3314853CD
CTR STACK VNR FIN
Iridium 		- 1 Enquire
160 703746
SCREW-M6x16 PAN TORX 		- 2 Enquire
170 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)
Pack of 20 		- 6 Enquire
180 707137
SCREW-M4 x 12 PAN HD 		- 2 Enquire
190 DD338C813AA
Bumper, Rubber 		- 2 Enquire
200 DD3388420AA
Striker Catch, Centre Speaker 		- 2 Enquire
210 DD33MRC1980AA
Washer, Nylon, 4.3x8.0x0.5 		- 4 Enquire
220 702959
SCREW M4x12 PAN HEAD 6 LOBE TORX 		- 6 Enquire
230 703178
M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE 		- 12 Enquire
240 DD330863AA
Screw, M4 x12, Pan Hd, Patch Lock 		- 14 Enquire
250 DD3311A090AB
Compression Spring, Centre Stack Veneer 		- 18 Enquire
260 DD330816AA
Screw, M4 x 20, Pan Hd, Patch Lock 		- 2 Enquire
270 DD330838AA
Screw, M4 x 16, Pan Hd, Patch Lock 		- 2 Enquire
280 22AB120GP
MTG BRKT QTR GLASS LH
Zagato Bronze 		- 1 Enquire
281 CD3319F648AE
CTR STK AIR REG BZL
Pearl Gloss 		- 1 Enquire
282 CD3319F648BD
Bezel, Air Register, Centre Stack
Shadow Bronze 		- 1 Enquire
290 CD33C046A26AA
Speaker Grille, Centre
Black 		- 1 Enquire
300 DD3314A462AB
Switch Carrier, PRND & Starter Button 		- 1 Enquire
320
CD33046B31AB
Register Assembly, IP Air Con, LH
- 1 Enquire
330 CD33046B30AB
Register Assembly, IP, Air Con, RH 		- 1 Enquire
340 HD3Y045J10AA
VNR ASY ST NV AUTO
Graduated Bronze 		- 1 Enquire
341 CD33045J10FC
VNR ASY SAT NAV AUTO
Carbon Fibre Fishbone 		- 1 Enquire
350 22AB123GP
MTG BRKT QTR GLASS RH 		- 1 Enquire
360 4G4318D404CA
FOAM SEAL - AIR DISTRIBUTION DUCTS 		- 2 Enquire
400 CD33F04704AB
Mat, Front Console Stowage 		- 1 Enquire
410 CD33045K07ADW
Armrest Stowage Assembly
RoW 		- 1 Enquire
411 22AA675GP
ASSY BRKT RR FENDER ADJUSTMENT
Federal 		- 1 Enquire
430 DD33519F22AB
Centre Console Main Carrier 		- 1 Enquire
440 707137
SCREW-M4 x 12 PAN HD 		- 2 Enquire
450 702847
SCREW-M6x25 PAN INT LOB 8 		- 5 Enquire
460 701448
Spring Nut, U Type, 4.2 x 2.1 		- 2 Enquire
470 705464
Screw, 4.2 x 16, Washer Head, Self Tapping 		- 2 Enquire
480 701445
SCREW 4x8 PAN T/H 		- 4 Enquire
490 703143
BUTTON TORX WASHER CHROME FREE 		- 4 Enquire
500 702289
SCREW M4x16 THREAD FORMING 		- 2 Enquire
510 W714509S442
Screw, M4 x 30 		- 2 Enquire
520 DD33487013AA
Cover Finisher 		- 2 Enquire
530 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		- 2 Enquire
540 DD33045H74ABW
Stowage Console Assembly, Rear
RoW 		- 1 Enquire
541 DD33045H74BAW
Stowage Console Assembly, Rear
Federal 		- 1 Enquire
550 DD33044H60AEW
RR STOW TRAY ASSY 		- 1 Enquire
560 DD33044G38ABW
Cup Holder Assembly, Front
Satin Chrome 		- 1 Enquire
561 DD33044G38BBW
Cup Holder Assembly, Front
Shadow Bronze 		- 1 Enquire
570 CD33045M19AB
Moulding, Lid Liner
Row 		- 1 Enquire
571 DD33045M19BA
Moulding, Lid Liner
Federal 		- 1 Enquire
580 703725
SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL 		- 4 Enquire
595 CD33045K07AP1A01
BUMP STOP-12.7 x1.52 		- 2 Enquire
600 DD332943751AB
Support Bracket, Front Carpet, LH 		- 1 Enquire
610 DD332943752AB
Support Bracket, Front Carpet, RH 		- 1 Enquire
620 22AD480GP
SEAL GT CAPPING TO FENDER REAR LH 		- 1 Enquire
630 CD3367846ACW
RR CP/HLDR OTR PNL A
Includes items 640-670 		- 1 Enquire
640 DD3329765AAW
Mat Assembly, Rear Cup Holder 		- 1 Enquire
650 DD33046B95ABW
Cup Holder, Rear Lower Assembly 		- 1 Enquire
660 701447
Screw, M4 x 12, Pan Head, Torx Screw 		- 2 Enquire
670 703027
SCREW M4x10 PAN HD TORX S/TAP 		- 1 Enquire
680 703264
SCREW-M6 x 14 HEX HD 		- 4 Enquire
690 707262
NUT & WSHER M5 		- 4 Enquire
700 702944
Nut, M6, Hex Flanged Head 		- 4 Enquire
710 703085
Screw M6x12 PC TI8 		- 4 Enquire
720 701559
Screw, M4 Self Tapping 		- 4 Enquire
730 707145
SCREW M5 x 12 PAN HD 		- 2 Enquire
740 703085
Screw M6x12 PC TI8 		- 8 Enquire
750 HD33045R19AAW
FRT LWR CNSL TRM ASY 		- 1 Enquire
760 CD3367446ABW
Panel Assembly, Console Lower, LHS 		- 1 Enquire
770 CD3367445ABW
Panel Assembly, Console Lower, RHS 		- 1 Enquire
780 DD33281B05ABW
Panel Assembly, Front Side Stowage Brace, LH 		- 1 Enquire
790 DD33281B04ABW
Panel Assembly, Front Side Stowage Brace, RH 		- 1 Enquire
800 DD3311648ACW
Mat Assembly, Front Stowage 		- 1 Enquire
810 703068
4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP 		- 4 Enquire
820 DD33244487AA
Lock Washer
Federal 		- 1 Enquire
830 DD33044M10AA
Lat Console Armrest
Federal 		- 1 Enquire
840 704779
Screw, M4 x 12, Flat Csk Skt Head
Federal 		- 1 Enquire
900 CD33045C63ABW
Trimmed Panel, Rear Console, LH 		- 1 Enquire
910 CD33045C62ABW
Trimmed Panel, Rear Console, RH 		- 1 Enquire
920 4G43015371AA
CAPTIVE U NUT M4 LOCKING 		- 2 Enquire
930 7G43C2437AAW
CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE 		- A/R Enquire
940 CD33045E23ACW
Panel Assy, Centre Finisher Rear 		- 1 Enquire
950 701573
Screw and Washer, M4 x 16, Pan Head 		- 2 Enquire
960 701448
Spring Nut, U Type, 4.2 x 2.1 		- 4 Enquire
970 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
Pack of 10 		- 4 Enquire
990 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10 		- 2 Enquire
1000 703026
Screw, M5 x 16, Hex Flange Head 		- 3 Enquire
1100 ED33L045C62AAW
Trimmed Panel, Rear Console, RH 		- 1 Enquire
1110 ED33L045C63AAW
Trimmed Panel, Rear Console, LH 		- 1 Enquire
1140 00RB059
CLIP CONNECTOR - TRW 		- 1 Enquire
1150 ED33045E24ACW
Panel Assembly, Rear Console 		- 1 Enquire
1160 701432
PIN 5.7x15.7 PUSH IN NYL-FIR TREE 		- 2 Enquire
1170 701448
Spring Nut, U Type, 4.2 x 2.1 		- 6 Enquire
1180 701441PK
Screw, 4.2 x 13, Small Washer Head
Pack of 10 		- 4 Enquire
1200 JD3ML045C63AAW
FULLY TRIM RR CONS L 		- 1 Enquire
1210 JD3ML045C62AAW
FULLY TRIM RR CONS R 		- 1 Enquire
1220 22AC871GP
REINFOR. BRACKET REAR FENDER REAR LH 		- 1 Enquire
1230 702587
PLASTIC TRIM PIN 8.0mm x 1.5 		- 8 Enquire
1240 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10 		- 6 Enquire
1300 22AC872GP
REINFOR. BRACKET REAR FENDER REAR RH
Carbon 		- 1 Enquire
1301 22AA392GP
ASSY BONNET
Bronze 		- 1 Enquire
1310 701448
Spring Nut, U Type, 4.2 x 2.1 		- 4 Enquire
1320 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10 		- 6 Enquire
1330 4G43105104AA
Screw, M4 x 8, Cap Head, Black 		- 2 Enquire
1340 8D33313A75AB
Bracket, Cabin Finisher, LH 		- 1 Enquire
1350 8D33313A74AB
Bracket, Cabin Finisher, RH 		- 1 Enquire
1360 704580
Screw, M6 x 30, Csk 		- 4 Enquire
