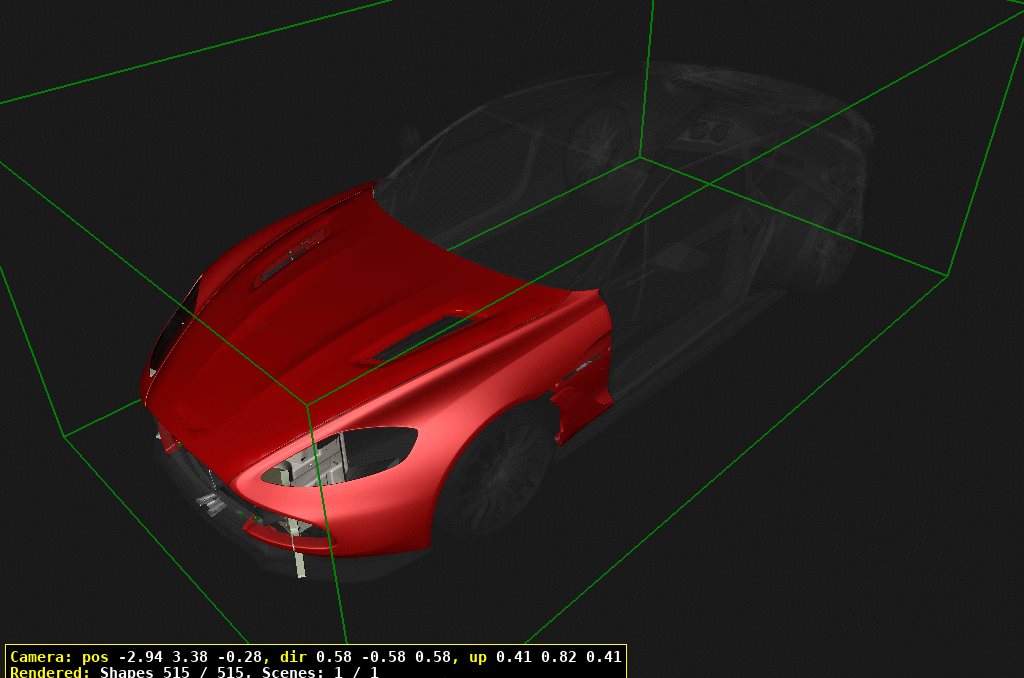

Front End of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Front End

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	8D332D206AB	DCT BRK CNTR COOL RH	8D332D206AB DCT BRK CNTR COOL RH	-	1	Enquire
30	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	6	Enquire
40	CD338K070AA	Nut Plate, Radiator Support Lower	CD338K070AA Nut Plate, Radiator Support Lower	-	2	Enquire
50	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	1	Enquire
60	CD338136BC	GRL ASSY RAD CTR	CD338136BC GRL ASSY RAD CTR	-	1	Enquire
70	13A3518CP	BRACKET - FENDER TO DOP - LH	13A3518CP BRACKET - FENDER TO DOP - LH	-	2	Enquire
80	FD33F01991AB	PNL VENT AIR LH	FD33F01991AB PNL VENT AIR LH	-	1	Enquire
90	8G432943751AB	Beam, Radiator Support Lower	8G432943751AB Beam, Radiator Support Lower	-	1	Enquire
100	8D3342761AA	Foam Pad, Cover Assy Radiator Support	8D3342761AA Foam Pad, Cover Assy Radiator Support	-	2	Enquire
120	DG438052AA	Cover Assembly, Radiator Support Lower	DG438052AA Cover Assembly, Radiator Support Lower	-	1	Enquire
130	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	-	1	Enquire
150	8D332D207AB	DCT BRK CNTR COOL LH	8D332D207AB DCT BRK CNTR COOL LH	-	1	Enquire
160	DG4338B30AC	CENTRE CHAIN STRAP	DG4338B30AC CENTRE CHAIN STRAP	-	1	Enquire
170	13A3455CP	BRACKET - COWL TO FRONT OUTRIGGER - RH	13A3455CP BRACKET - COWL TO FRONT OUTRIGGER - RH	-	1	Enquire
200	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	-	2	Enquire
210	13A3454CP	BRACKET - COWL TO FRONT OUTRIGGER - LH	13A3454CP BRACKET - COWL TO FRONT OUTRIGGER - LH	-	4	Enquire
220	707269	SCREW-M8x30 HEX-BLK	707269 SCREW-M8x30 HEX-BLK	-	4	Enquire
230	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black	-	4	Enquire
250	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
270	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
290	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	6	Enquire
300	HD3Y16007AC	PNL ASY FRT FNDR LH	HD3Y16007AC PNL ASY FRT FNDR LH	-	1	Enquire
301	00RA089	BOLT - M6X20 - HEX - WASHER - D20	00RA089 BOLT - M6X20 - HEX - WASHER - D20 Federal	-	1	Enquire
302	KD3M16007AA	PNL ASY FRT FNDR LH	KD3M16007AA PNL ASY FRT FNDR LH Shooting Brake Only	-	1	Enquire
310	HD3Y16006AC	PNL ASY FRT FNDR RH	HD3Y16006AC PNL ASY FRT FNDR RH	-	1	Enquire
311	13A3517CP	BRACKET - FENDER TO HINGE - RH	13A3517CP BRACKET - FENDER TO HINGE - RH Federal	-	1	Enquire
312	KD3M16006AA	PNL ASY FRT FNDR RH	KD3M16006AA PNL ASY FRT FNDR RH Shooting Brake Only	-	1	Enquire
320	13A3516CP	BRACKET - FENDER TO HINGE - LH	13A3516CP BRACKET - FENDER TO HINGE - LH	-	1	Enquire
330	13A1502CP	OUTRIGGER - FRONT - LH	13A1502CP OUTRIGGER - FRONT - LH	-	1	Enquire
340	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	6	Enquire
350	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	2	Enquire
360	4G43301347AA	BLACK TPR BODY PLUG 20mm	4G43301347AA BLACK TPR BODY PLUG 20mm	-	2	Enquire
390	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	6	Enquire
400	4G435435AD	Spacer, Fender	4G435435AD Spacer, Fender	-	6	Enquire
410	ED33W500105AA	BLK BOLT M6X50	ED33W500105AA BLK BOLT M6X50	-	6	Enquire
420	CG43106258AA	Washer 6.0 I/D 24 O/D X 2.5 THK	CG43106258AA Washer 6.0 I/D 24 O/D X 2.5 THK	-	12	Enquire
430	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	4G43E826280BAPK Nut M6- Flexax Tolerance (Pack of 5) Pack of 5	-	5	Enquire
500	HD3Y16612AA	HOOD ASSY	HD3Y16612AA HOOD ASSY	-	1	Enquire
510	CD33SE16C826AB	HOOD GAS STRUT	CD33SE16C826AB HOOD GAS STRUT	-	2	Enquire
520	DD3316801AA	HINGE ASSY-HOOD LH	DD3316801AA HINGE ASSY-HOOD LH	-	1	Enquire
530	DD3316800AA	HINGE ASSY HOOD RH	DD3316800AA HINGE ASSY HOOD RH	-	1	Enquire
540	707269	SCREW-M8x30 HEX-BLK	707269 SCREW-M8x30 HEX-BLK	-	4	Enquire
550	13A1472CP	OUTRIGGER - FRONT - RH	13A1472CP OUTRIGGER - FRONT - RH	-	4	Enquire
560	DD335435AA	Spacer, Hood Hinge	DD335435AA Spacer, Hood Hinge	-	4	Enquire
570	13A3454CP	BRACKET - COWL TO FRONT OUTRIGGER - LH	13A3454CP BRACKET - COWL TO FRONT OUTRIGGER - LH	-	4	Enquire
580	22AD488GP	ASSY FNDR FRT LH	22AD488GP ASSY FNDR FRT LH	-	2	Enquire
