Exhaust Manifolds of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Exhaust Manifolds

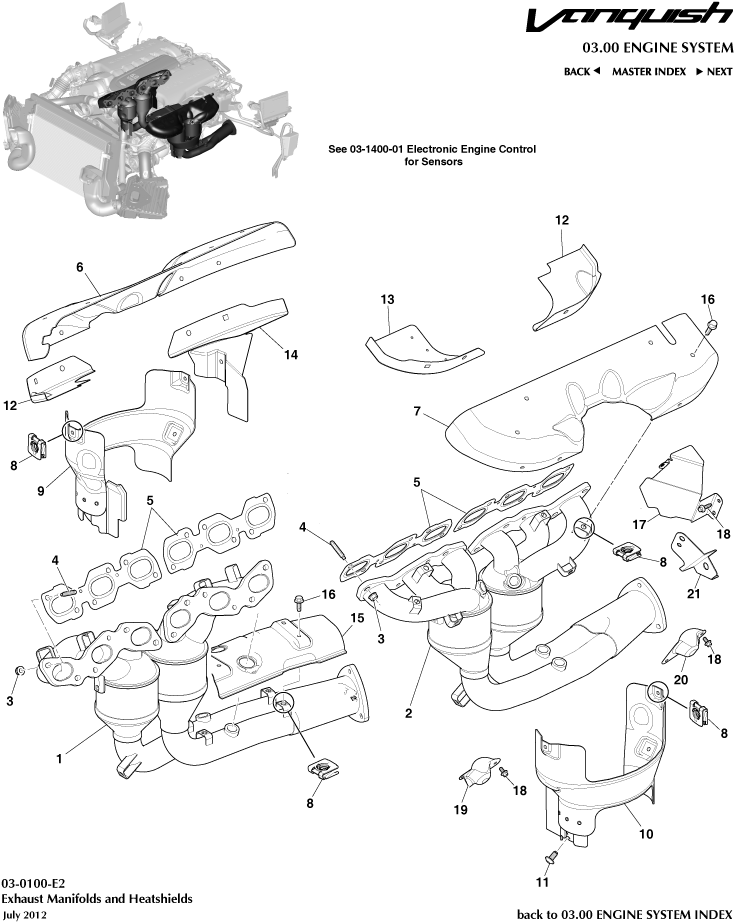

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3345368AA	Heatshield, Knock Sensor, RH Front	CD3345368AA Heatshield, Knock Sensor, RH Front -	-	1	Enquire
1	CD335G236AA	Manifold Assy, Exhaust, RH	CD335G236AA Manifold Assy, Exhaust, RH -	-	1	Enquire
2	CD335G232AA	Manifold Assy, Exhaust, LH	CD335G232AA Manifold Assy, Exhaust, LH -	-	1	Enquire
3	W701706S440	Nut, M8 x 1.25, Hex Flg Hd	W701706S440 Nut, M8 x 1.25, Hex Flg Hd -	-	24	Enquire
4	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
5	4G433510003	Gasket Exhaust Manifold	4G433510003 Gasket Exhaust Manifold -	-	4	Enquire
8	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields -	-	24	Enquire
9	BG439N454BC	Heat Shield, Catalyst, RH	BG439N454BC Heat Shield, Catalyst, RH -	-	1	Enquire
10	BG439N454AC	Heat Shield, Catalyst, LH	BG439N454AC Heat Shield, Catalyst, LH -	-	1	Enquire
11	703691	Screw, M6 x 12, Pan Head Internal Torx	703691 Screw, M6 x 12, Pan Head Internal Torx -	-	8	Enquire
13	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	8D339A462BB Heat Shield, Exhaust Manifold, LH Front -	-	1	Enquire
14	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	8G439A462AD Heat Shield, Exhaust Manifold, RH Rear -	-	1	Enquire
15	CD33C5K286AA	Heat Shield, Exhaust Pipe, RH	CD33C5K286AA Heat Shield, Exhaust Pipe, RH -	-	1	Enquire
16	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	21	Enquire
17	CD336K342BA	Heat Shield, Crank Sensor	CD336K342BA Heat Shield, Crank Sensor -	-	1	Enquire
18	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8 -	-	2	Enquire
19	CD3345367AB	Heatshield, Knock Sensor, LH Front	CD3345367AB Heatshield, Knock Sensor, LH Front -	-	1	Enquire
20	CD3345367BA	Heatshield, Knock Sensor, LH Rear	CD3345367BA Heatshield, Knock Sensor, LH Rear -	-	1	Enquire
21	CD336K342AB	Heatshield, Crank Sensor	CD336K342AB Heatshield, Crank Sensor -	-	1	Enquire
