Engine Structure of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

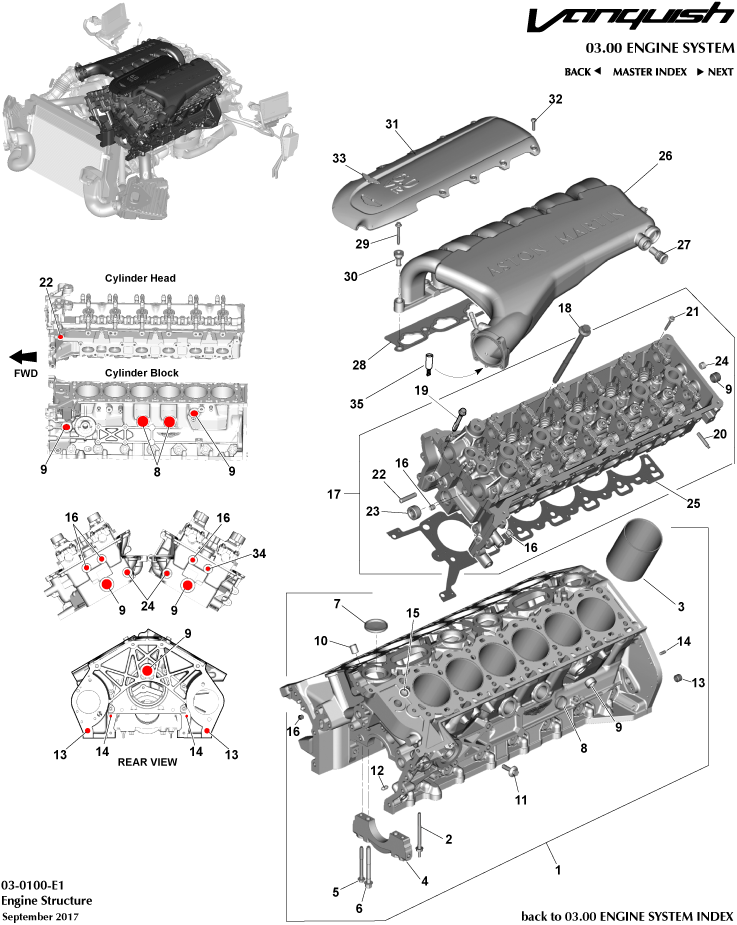

Aston Martin GT VANQUISH (2013-2018) - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD336007AA	Engine Assy, AM11	CD336007AA Engine Assy, AM11 Up To 15MY	-	1	Enquire
-	FD436007AA	AM29 ENGINE ASSY	FD436007AA AM29 ENGINE ASSY From 15MY->17.5MY	-	1	Enquire
-	HD336007AA	AM27 ENGINE ASSY	HD336007AA AM27 ENGINE ASSY From 17.5MY, Vanquish S	-	1	Enquire
-	22AB454GP	ASSY RR LICENSE PLATE PLINTH EU	22AB454GP ASSY RR LICENSE PLATE PLINTH EU AM27. With Valves, Adjusters & Springs, Less Camshafts	-	1	Enquire
-	CD336F093AA	HD ASSY CLY W CMPNT	CD336F093AA HD ASSY CLY W CMPNT AM11/29, With Valves, Adjusters & Springs, Less Camshafts	-	1	Enquire
-	22AB172GP	BUMPER BEAM BRACKET	22AB172GP BUMPER BEAM BRACKET AM27. With Valves, Adjusters & Springs, Less Camshafts	-	1	Enquire
-	CD336050BB	HEAD ASY CYL LH	CD336050BB HEAD ASY CYL LH AM11/29, Bare	-	1	Enquire
-	51445A64AB6	Headliner, module housing	51445A64AB6 Headliner, module housing AM27. Bare	-	1	Enquire
-	CD336049BB	HEAD ASSY CYL RH	CD336049BB HEAD ASSY CYL RH AM11/29, Bare	-	1	Enquire
-	ED236049AB	HEAD ASSY CYL RH	ED236049AB HEAD ASSY CYL RH AM27. Bare	-	1	Enquire
-	CD336051AA	Gasket, Cylinder Head, RH	CD336051AA Gasket, Cylinder Head, RH -	-	1	Enquire
-	JD339424BA	Intake Manifold Assy, LH	JD339424BA Intake Manifold Assy, LH 15MY to 17.5MY, AM29 (White), Includes Item 27	-	1	Enquire
-	HD339424BC	MNIFLD ASSY INTKE LH	HD339424BC MNIFLD ASSY INTKE LH 17.5MY on, AM27 (Black), Includes Item 27	-	1	Enquire
-	CD339424AC	Intake Manifold, Assy, RH	CD339424AC Intake Manifold, Assy, RH Up to 15MY, AM11 (Silver), Includes Item 27 and Air Temp Sensor	-	1	Enquire
-	JD339424AA	Intake Manifold, Assy, RH	JD339424AA Intake Manifold, Assy, RH 15MY to 17.5MY, AM29 (White), Includes Item 27 and Air Temp Sensor	-	1	Enquire
-	HD339424AA	MNIFLD ASY INTKE RH	HD339424AA MNIFLD ASY INTKE RH 17.5MY on, AM27 (Black), Includes Item 27 and Air Temp Sensor	-	1	Enquire
-	CD339J444AD	SUPPORT BRACE - INT	CD339J444AD SUPPORT BRACE - INT 16MY on	-	1	Enquire
-	CD336007AA	Engine Assy, AM11	CD336007AA Engine Assy, AM11 Up To 15MY	-	1	Enquire
-	FD436007AA	AM29 ENGINE ASSY	FD436007AA AM29 ENGINE ASSY From 15MY->17.5MY	-	1	Enquire
-	HD336007AA	AM27 ENGINE ASSY	HD336007AA AM27 ENGINE ASSY From 17.5MY, Vanquish S	-	1	Enquire
-	22AB454GP	ASSY RR LICENSE PLATE PLINTH EU	22AB454GP ASSY RR LICENSE PLATE PLINTH EU AM27. With Valves, Adjusters & Springs, Less Camshafts	-	1	Enquire
-	CD336F093AA	HD ASSY CLY W CMPNT	CD336F093AA HD ASSY CLY W CMPNT AM11/29, With Valves, Adjusters & Springs, Less Camshafts	-	1	Enquire
-	22AB172GP	BUMPER BEAM BRACKET	22AB172GP BUMPER BEAM BRACKET AM27. With Valves, Adjusters & Springs, Less Camshafts	-	1	Enquire
-	CD336050BB	HEAD ASY CYL LH	CD336050BB HEAD ASY CYL LH AM11/29, Bare	-	1	Enquire
-	51445A64AB6	Headliner, module housing	51445A64AB6 Headliner, module housing AM27. Bare	-	1	Enquire
-	CD336049BB	HEAD ASSY CYL RH	CD336049BB HEAD ASSY CYL RH AM11/29, Bare	-	1	Enquire
-	ED236049AB	HEAD ASSY CYL RH	ED236049AB HEAD ASSY CYL RH AM27. Bare	-	1	Enquire
-	CD336051AA	Gasket, Cylinder Head, RH	CD336051AA Gasket, Cylinder Head, RH -	-	1	Enquire
-	JD339424BA	Intake Manifold Assy, LH	JD339424BA Intake Manifold Assy, LH 15MY to 17.5MY, AM29 (White), Includes Item 27	-	1	Enquire
-	HD339424BC	MNIFLD ASSY INTKE LH	HD339424BC MNIFLD ASSY INTKE LH 17.5MY on, AM27 (Black), Includes Item 27	-	1	Enquire
-	CD339424AC	Intake Manifold, Assy, RH	CD339424AC Intake Manifold, Assy, RH Up to 15MY, AM11 (Silver), Includes Item 27 and Air Temp Sensor	-	1	Enquire
-	JD339424AA	Intake Manifold, Assy, RH	JD339424AA Intake Manifold, Assy, RH 15MY to 17.5MY, AM29 (White), Includes Item 27 and Air Temp Sensor	-	1	Enquire
-	HD339424AA	MNIFLD ASY INTKE RH	HD339424AA MNIFLD ASY INTKE RH 17.5MY on, AM27 (Black), Includes Item 27 and Air Temp Sensor	-	1	Enquire
-	CD339J444AD	SUPPORT BRACE - INT	CD339J444AD SUPPORT BRACE - INT 16MY on	-	1	Enquire
1	CD336010AE	Cylinder Block Assy	CD336010AE Cylinder Block Assy -	-	1	Enquire
1	ED236010AC	CYLINDER BLOCK ASSY	ED236010AC CYLINDER BLOCK ASSY AM27	-	1	Enquire
1	CD336010AE	Cylinder Block Assy	CD336010AE Cylinder Block Assy -	-	1	Enquire
1	ED236010AC	CYLINDER BLOCK ASSY	ED236010AC CYLINDER BLOCK ASSY AM27	-	1	Enquire
2	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	4	Enquire
2	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ALWAYS REPLACE. DO NOT RE-USE ARRIVING SOON	-	4	Enquire
3	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12 -	-	12	Enquire
3	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12 -	-	12	Enquire
5	61445B68411	Combined Charging Unit	61445B68411 Combined Charging Unit ALWAYS REPLACE. DO NOT RE-USE	-	10	Enquire
5	61445B68411	Combined Charging Unit	61445B68411 Combined Charging Unit ALWAYS REPLACE. DO NOT RE-USE	-	10	Enquire
6	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91 ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
6	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91 ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
7	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup -	-	4	Enquire
7	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup -	-	4	Enquire
8	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm) -	-	4	Enquire
8	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm) -	-	4	Enquire
9	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14 -	-	7	Enquire
9	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14 -	-	7	Enquire
10	W701202S300	Pin, 8 x 18.25	W701202S300 Pin, 8 x 18.25 -	-	4	Enquire
10	W701202S300	Pin, 8 x 18.25	W701202S300 Pin, 8 x 18.25 -	-	4	Enquire
11	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
11	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
12	13A7048GP	FOAM - CANTRAIL SEAL CARRIER - GT	13A7048GP FOAM - CANTRAIL SEAL CARRIER - GT -	-	2	Enquire
12	13A7048GP	FOAM - CANTRAIL SEAL CARRIER - GT	13A7048GP FOAM - CANTRAIL SEAL CARRIER - GT -	-	2	Enquire
13	699134	Dowel, Hollow	699134 Dowel, Hollow -	-	2	Enquire
13	699134	Dowel, Hollow	699134 Dowel, Hollow -	-	2	Enquire
14	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE -	-	2	Enquire
14	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE -	-	2	Enquire
15	704775	Plug, 19.35, Exp Cup	704775 Plug, 19.35, Exp Cup -	-	1	Enquire
15	704775	Plug, 19.35, Exp Cup	704775 Plug, 19.35, Exp Cup -	-	1	Enquire
16	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8 -	-	10	Enquire
16	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8 -	-	10	Enquire
17	CD336M099AA	Cylinder Head Assy, LH	CD336M099AA Cylinder Head Assy, LH AM11/29, With Valves, Adjusters & Springs, Less Camshafts	-	1	Enquire
17	CD336M099AA	Cylinder Head Assy, LH	CD336M099AA Cylinder Head Assy, LH AM11/29, With Valves, Adjusters & Springs, Less Camshafts	-	1	Enquire
18	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	28	Enquire
18	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	28	Enquire
19	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	4	Enquire
19	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	4	Enquire
20	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
20	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
21	22AB043GP	ASSY ROOF PANEL	22AB043GP ASSY ROOF PANEL -	-	56	Enquire
21	22AB043GP	ASSY ROOF PANEL	22AB043GP ASSY ROOF PANEL -	-	56	Enquire
22	22AB504GP	SEAL ROOF	22AB504GP SEAL ROOF -	-	2	Enquire
22	22AB504GP	SEAL ROOF	22AB504GP SEAL ROOF -	-	2	Enquire
23	00RG035	REEVITE - 15.9X3.2X8X82X5.4	00RG035 REEVITE - 15.9X3.2X8X82X5.4 -	-	2	Enquire
23	00RG035	REEVITE - 15.9X3.2X8X82X5.4	00RG035 REEVITE - 15.9X3.2X8X82X5.4 -	-	2	Enquire
25	CD336083AA	Gasket, Cylinder Head, LH	CD336083AA Gasket, Cylinder Head, LH -	-	1	Enquire
25	CD336083AA	Gasket, Cylinder Head, LH	CD336083AA Gasket, Cylinder Head, LH -	-	1	Enquire
26	CD339424BD	Intake Manifold Assy, LH	CD339424BD Intake Manifold Assy, LH Up to 15MY, AM11 (Silver), Includes Item 27	-	1	Enquire
26	CD339424BD	Intake Manifold Assy, LH	CD339424BD Intake Manifold Assy, LH Up to 15MY, AM11 (Silver), Includes Item 27	-	1	Enquire
27	705136	CARTRIDGE ASSY	705136 CARTRIDGE ASSY -	-	2	Enquire
27	705136	CARTRIDGE ASSY	705136 CARTRIDGE ASSY -	-	2	Enquire
28	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) Pack of 2	-	2	Enquire
28	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) Pack of 2	-	2	Enquire
29	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 -	-	14	Enquire
29	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 -	-	14	Enquire
30	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold -	-	14	Enquire
30	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold -	-	14	Enquire
31	CD339J444AB	SUPPORT BRACE - INT	CD339J444AB SUPPORT BRACE - INT Up to 16MY	-	1	Enquire
31	CD339J444AB	SUPPORT BRACE - INT	CD339J444AB SUPPORT BRACE - INT Up to 16MY	-	1	Enquire
32	699842	SCREW M6x25 PAN HD	699842 SCREW M6x25 PAN HD -	-	8	Enquire
32	699842	SCREW M6x25 PAN HD	699842 SCREW M6x25 PAN HD -	-	8	Enquire
33	8D33001B46BB	Wing Badge, Engine Manifold	8D33001B46BB Wing Badge, Engine Manifold Up to 16MY	-	1	Enquire
33	8D33001B46BB	Wing Badge, Engine Manifold	8D33001B46BB Wing Badge, Engine Manifold Up to 16MY	-	1	Enquire
34	685664	ADAPTOR-O/PRESS SWTC	685664 ADAPTOR-O/PRESS SWTC -	-	1	Enquire
34	685664	ADAPTOR-O/PRESS SWTC	685664 ADAPTOR-O/PRESS SWTC -	-	1	Enquire
35	CD339J446AA	CAP ASY VAC POR INTK	CD339J446AA CAP ASY VAC POR INTK -	-	2	Enquire
35	CD339J446AA	CAP ASY VAC POR INTK	CD339J446AA CAP ASY VAC POR INTK -	-	2	Enquire
