Aston Martin GT VANQUISH (2013-2018) - Accessory Drive

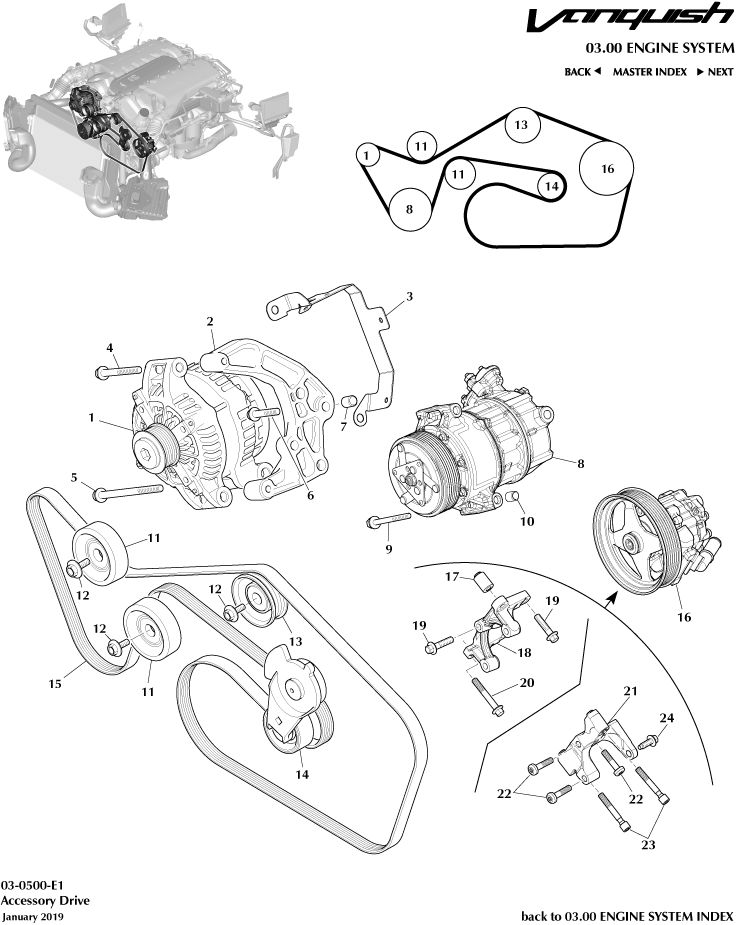

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	HD2319D629AA	COMP & CLUT ASSY AIR	HD2319D629AA COMP & CLUT ASSY AIR 17MY on	-	1	Enquire
-	FD433A696AA	PMP & PLY ASY-PWR ST	FD433A696AA PMP & PLY ASY-PWR ST 15MY on, Varioserv, AM27 and AM29	-	1	Enquire
-	FD433K738AC	BRKT ASSY PAS PUMP	FD433K738AC BRKT ASSY PAS PUMP 15MY on, AM27 and AM29	-	1	Enquire
1	8D3310300AA	Alternator, 200A	8D3310300AA Alternator, 200A -	-	1	Enquire
3	FD3314W163AA	HRNS SUPP BRKT ALT	FD3314W163AA HRNS SUPP BRKT ALT -	-	1	Enquire
4	700140	Bolt and Washer, M10 x 97.5	700140 Bolt and Washer, M10 x 97.5 -	-	2	Enquire
5	704079	Bolt, M10 x 150, Hex Flg Hd	704079 Bolt, M10 x 150, Hex Flg Hd -	-	1	Enquire
6	703692	Bolt, flg, M10x45, Alt bkt to cl hd	703692 Bolt, flg, M10x45, Alt bkt to cl hd -	-	3	Enquire
7	697759	Dowel, hollow, 14.0 X 17.5	697759 Dowel, hollow, 14.0 X 17.5 -	-	2	Enquire
8	AD4319D629AA	COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT	AD4319D629AA COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT Up to 17MY	-	1	Enquire
9	702557	BOLT M8 X 100 HF 8	702557 BOLT M8 X 100 HF 8 -	-	3	Enquire
10	702859	PIN	702859 PIN -	-	2	Enquire
12	703702	BOLT M8x1.25x24.5	703702 BOLT M8x1.25x24.5 -	-	3	Enquire
15	ED238620AA	Feed Drive Belt	ED238620AA Feed Drive Belt -	-	1	Enquire
16	DG433A696AA	Pump and Pulley, PAS	DG433A696AA Pump and Pulley, PAS Up to 15MY, AM11	-	1	Enquire
17	ED23592072AA	Spacer Assembly	ED23592072AA Spacer Assembly AM11, As Required, For Thin Bracket	-	2	Enquire
18	AD433K738AC	BRKT ASY PWR STNG PM	AD433K738AC BRKT ASY PWR STNG PM AM11 (Alternative Thin Bracket)	-	1	Enquire
19	702573	BOLT M8 X 35	702573 BOLT M8 X 35 -	-	3	Enquire
20	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE -	-	2	Enquire
21	ED233K738AB	BRKT ASY PAS PUMP	ED233K738AB BRKT ASY PAS PUMP ->15MY, AM11, (Alternative Thick Bracket)	-	1	Enquire
22	702551	BOLT M8 X 35 PN TI 8	702551 BOLT M8 X 35 PN TI 8 -	-	3	Enquire
23	706476	BOLT-M8 x 1.25 x 55	706476 BOLT-M8 x 1.25 x 55 -	-	2	Enquire
24	702564	BOLT M8 X 20	702564 BOLT M8 X 20 -	-	1	Enquire
