Aston Martin GT VANQUISH (2013-2018) - Electronic Engine Control

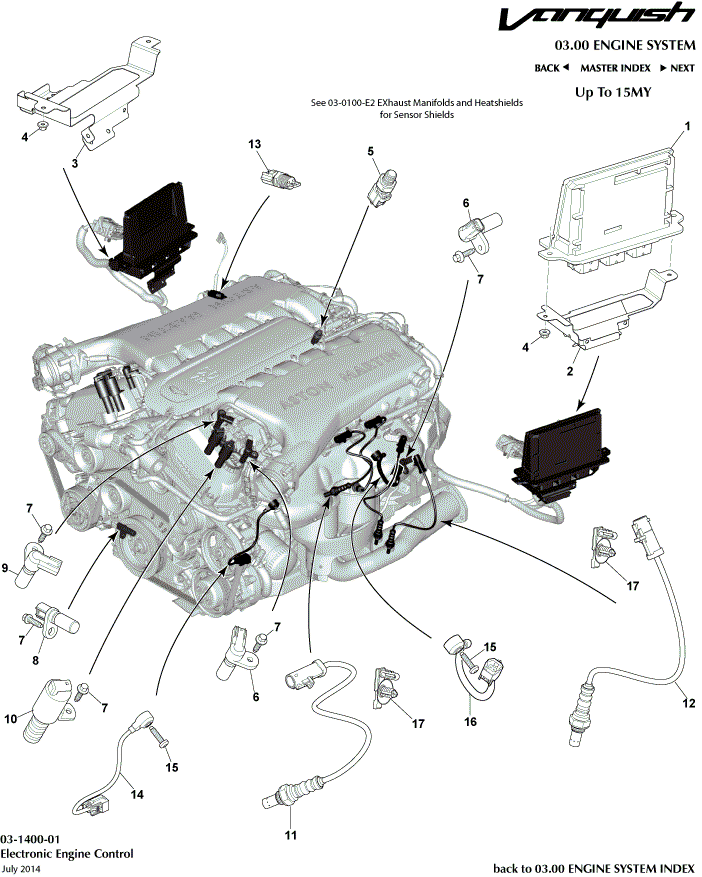

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CD333910018	Engine Management, Spanish Oak, AM11	CD333910018 Engine Management, Spanish Oak, AM11 Up To 15MY	-	2	Enquire
2	4G4312B696AH	SHLD PROCS ENG LH	4G4312B696AH SHLD PROCS ENG LH -	-	1	Enquire
3	4G4312B695AH	SHLD PROCS ENG RH	4G4312B695AH SHLD PROCS ENG RH -	-	1	Enquire
4	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head -	-	4	Enquire
5	6U5T9278DB	SW ASY OIL PRESS SDR	6U5T9278DB SW ASY OIL PRESS SDR -	-	1	Enquire
6	4G433910014	Sensor, Crankshaft, Rear	4G433910014 Sensor, Crankshaft, Rear -	-	3	Enquire
7	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8 -	-	11	Enquire
8	1R123910475	Sensor, Crankshaft, Front	1R123910475 Sensor, Crankshaft, Front -	-	1	Enquire
9	785755	Sensor, Crankshaft Timing	785755 Sensor, Crankshaft Timing -	-	2	Enquire
10	CM5E6B297CB	VCT SOLENOID	CM5E6B297CB VCT SOLENOID AM11, Up To 15MY	-	4	Enquire
11	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear -	-	4	Enquire
12	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter -	-	4	Enquire
13	6G430810064	AIR TEMP SENSOR	6G430810064 AIR TEMP SENSOR -	-	1	Enquire
14	CD3312A699AA	Sensor Assy, Engine Knock	CD3312A699AA Sensor Assy, Engine Knock -	-	2	Enquire
15	SY9Y2C028AA	DIRT SHIELD REAR RH	SY9Y2C028AA DIRT SHIELD REAR RH -	-	4	Enquire
16	CD3312A699BA	Sensor Assy, Engine Knock	CD3312A699BA Sensor Assy, Engine Knock -	-	2	Enquire
17	ED23110005AA	Harness Retention Clip	ED23110005AA Harness Retention Clip -	-	4	Enquire
