Electronic Engine Control, Bosch

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Electronic Engine Control, Bosch

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

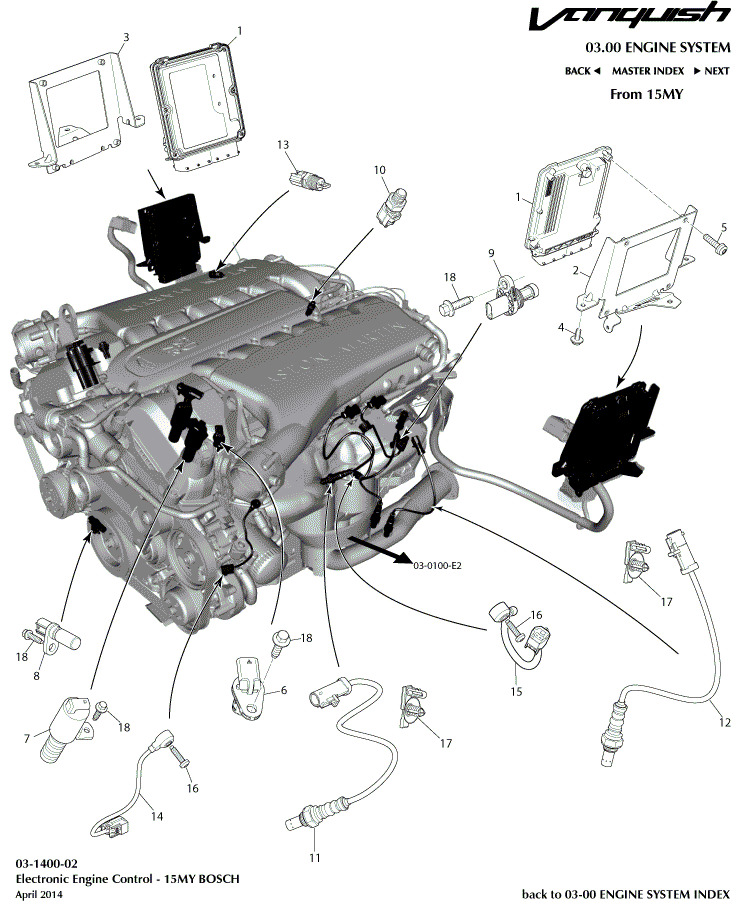

Electronic Engine Control, Bosch of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ED2312A650AA
BOSCH ENG MAN MOD
Bosch, from 15MY 		- 2 Enquire
2 FD3312B695AB
BOSCH ECU BRKT
- 		- 1 Enquire
3 12515B3B406
Add. wiring harness, temperature sensor
- 		- 1 Enquire
4 703151
Screw M6x16 Washer Hex HD Chrome Free
Bracket to Body 		- 4 Enquire
5 00RA302
SCREW - M8X20 - HEX
Bracket to Module 		- 4 Enquire
6 SY9Y23943FBW
DOOR ASSY TRIM LH
- 		- 4 Enquire
7 CM5E6B297CC
VCT SOLENOID
AM29, From 15MY 		- 4 Enquire
8 1R123910475
Sensor, Crankshaft, Front
- 		- 1 Enquire
9 ED236C315AA
SNS ASY CRKSHT TIM
- 		- 1 Enquire
10 1R123910532
Switch, Oil Pressure
Rear of RH Cylinder Head 		- 1 Enquire
11 ED239F472AA
HEATED EXHAUST GAS OXYGEN SENSOR
-
ARRIVING SOON 		- 4 Enquire
12 6C119G444AA
LAMBDA SENSOR
- 		- 4 Enquire
13 6G430810064
AIR TEMP SENSOR
- 		- 1 Enquire
14 CD3312A699AA
Sensor Assy, Engine Knock
Front 		- 2 Enquire
15 CD3312A699BA
Sensor Assy, Engine Knock
Rear 		- 2 Enquire
16 SY9Y2C028AA
DIRT SHIELD REAR RH
- 		- 4 Enquire
17 ED23110005AA
Harness Retention Clip
- 		- 4 Enquire
18 702542
BOLT M6 x 20 HF PIL 8
- 		- 11 Enquire
