Evaporative Emissions of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Evaporative Emissions

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

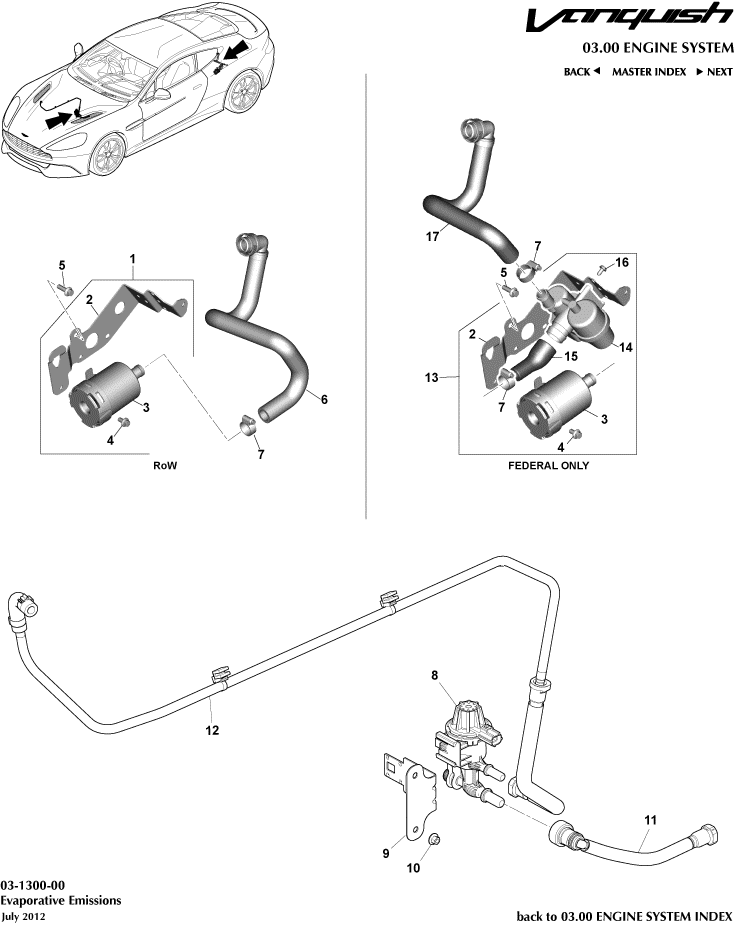

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD339A064AA	Cobra Clip 15mm	CD339A064AA Cobra Clip 15mm -	-	1	Enquire
1	8D339D665BA	BRACKET ASSEMBLY FILTER (NON FEDERAL)	8D339D665BA BRACKET ASSEMBLY FILTER (NON FEDERAL) RoW	-	1	Enquire
2	8D339C177AB	Bracket, Fuel Tank Vent Valve	8D339C177AB Bracket, Fuel Tank Vent Valve -	-	1	Enquire
3	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister -	-	1	Enquire
4	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
5	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	3	Enquire
6	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984BB Hose, Fuel/Vapour Canister Vent Inlet RoW	-	1	Enquire
7	699094	Clip, Hose, Spring Loaded, 16-25	699094 Clip, Hose, Spring Loaded, 16-25 RoW Qty 1, Federal Qty 2	-	A/R	Enquire
8	4G433410937	Valve Fuel/ Vapour Purge Electronic	4G433410937 Valve Fuel/ Vapour Purge Electronic -	-	1	Enquire
9	4G439G743AA	Bracket, Electronic Fuel Vapour Management	4G439G743AA Bracket, Electronic Fuel Vapour Management -	-	1	Enquire
10	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head -	-	2	Enquire
11	AD239B051AA	TUBE - PURGE VALVE INLET	AD239B051AA TUBE - PURGE VALVE INLET -	-	1	Enquire
12	CD339D289AE	TUB ASY-FU/VPR TO EN	CD339D289AE TUB ASY-FU/VPR TO EN -	-	1	Enquire
13	8D339D665AB	BRACKET ASSEMBLY DMTL & FILTER	8D339D665AB BRACKET ASSEMBLY DMTL & FILTER Fed	-	1	Enquire
15	7G439G271AA	Hose, DMTL to Filter	7G439G271AA Hose, DMTL to Filter Fed	-	1	Enquire
16	W506961S437	Screw, M5 x 10, Pan Head	W506961S437 Screw, M5 x 10, Pan Head Fed	-	3	Enquire
17	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984AB Hose, Fuel/Vapour Canister Vent Inlet Fed	-	1	Enquire
