Engine Cooling of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Engine Cooling

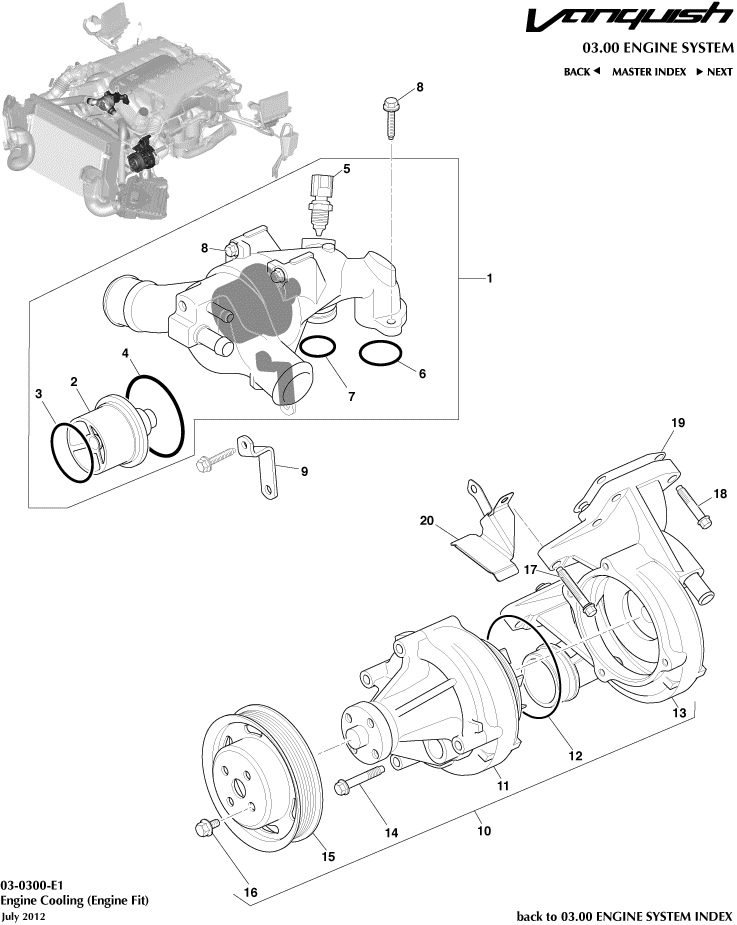

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CD338A586AA	Housing and Connection Assembly, Engine Thermostat	CD338A586AA Housing and Connection Assembly, Engine Thermostat -	-	1	Enquire
2	CD338575AA	Thermostat	CD338575AA Thermostat -	-	1	Enquire
3	3285116	Seal Thermostat ARRIVING SOON	3285116 Seal Thermostat - ARRIVING SOON	-	1	Enquire
4	3285114	O Ring - Seal Housing	3285114 O Ring - Seal Housing -	-	1	Enquire
5	6G433910080	Sensor, Engine Coolant Temperature ARRIVING SOON	6G433910080 Sensor, Engine Coolant Temperature - ARRIVING SOON	-	1	Enquire
6	3285112	O Ring - Water Outlet	3285112 O Ring - Water Outlet -	-	1	Enquire
7	3285113	O RING SEAL ARRIVING SOON	3285113 O RING SEAL - ARRIVING SOON	-	1	Enquire
8	702855	BOLT &WASHER-M6x30 HEX FLG PIL	702855 BOLT &WASHER-M6x30 HEX FLG PIL -	-	6	Enquire
9	7G438A588AA	Bracket, Engine Thermostat Connector	7G438A588AA Bracket, Engine Thermostat Connector -	-	1	Enquire
10	CD338K168AA	Pump and Cover Assembly	CD338K168AA Pump and Cover Assembly -	-	1	Enquire
11	4G430510957	WATER PUMP (NOSE CONE ASSEMBLY)	4G430510957 WATER PUMP (NOSE CONE ASSEMBLY) -	-	1	Enquire
12	1R123210531	WATER PUMP PRESS IN SEAL	1R123210531 WATER PUMP PRESS IN SEAL -	-	1	Enquire
13	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 10	-	1	Enquire
14	703108	BOLT M8x45 HEX FLG 8	703108 BOLT M8x45 HEX FLG 8 -	-	4	Enquire
16	702843	Screw and Washer, M8 x 1.25 x 19, Hex Head	702843 Screw and Washer, M8 x 1.25 x 19, Hex Head -	-	4	Enquire
18	702842	Bolt, M8 x 1.25 x 41, Hex Flange Head	702842 Bolt, M8 x 1.25 x 41, Hex Flange Head -	-	3	Enquire
20	4G4318482AA	Hose Guard, Water Pump	4G4318482AA Hose Guard, Water Pump -	-	1	Enquire
