Aston Martin DBS V12 - Manual Transaxle

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91793 MANUAL TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
4G432710611 HOUSING-DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
702815 BOLT M8 x 30 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710606 COVER - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
702815 BOLT M8 x 30 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710607 SEAL - COVER Enquire To Order
Photo Part No Description Price (each) Stock
4G432710605 Bearing, Differential Output Enquire To Order
Photo Part No Description Price (each) Stock
702813 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
4G432710603 Bearing, Differential Output Shaft Enquire To Order
Photo Part No Description Price (each) Stock
4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710482 O Ring, 2.62 x 75.87 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710602 BEARING - DIF OUTPUT SHAFT LEFT HAND Enquire To Order
Photo Part No Description Price (each) Stock
702812 Bolt, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
4G432710600 OUTPUT SHAFT - LEFT SIDE DIF Enquire To Order
Photo Part No Description Price (each) Stock
702814 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710601 OUTPUT SHAFT - RIGHT SIDE DIF Enquire To Order
Photo Part No Description Price (each) Stock
4G432710490 Filter, Oil Enquire To Order
Photo Part No Description Price (each) Stock
4G432710491PK O RING 2.62 x 20.63 (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
702821 Washer, 5.3 x 0.5 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710492 Screw, M5 x 12 Enquire To Order
Photo Part No Description Price (each) Stock
702817 Set Screw, M8 x 10 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) Enquire To Order
Photo Part No Description Price (each) Stock
4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
702818 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
4G432710609 Pipe, trans cooling, 90° Enquire To Order
Photo Part No Description Price (each) Stock
4G432710502 O Ring, 2.69 x 9.92 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710493 PLUG - OIL LEVEL M22 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
4G432710488 Adaptor, Breather Enquire To Order
Photo Part No Description Price (each) Stock
4G437A245CA TUBE ASSY - MAN TRANSMISSION BREATHE Enquire To Order
Photo Part No Description Price (each) Stock
701575 Clip, Trans Breather Pipe Enquire To Order
Photo Part No Description Price (each) Stock
6G337N372AB BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT Enquire To Order
Photo Part No Description Price (each) Stock
4G4319G506BA Grease, Input Shaft Spline Enquire To Order
6G3375106AA/S OIL-MAN TRANS 1 ltr Enquire To Order
702822 BOLT M6 x 50 Enquire To Order
View All

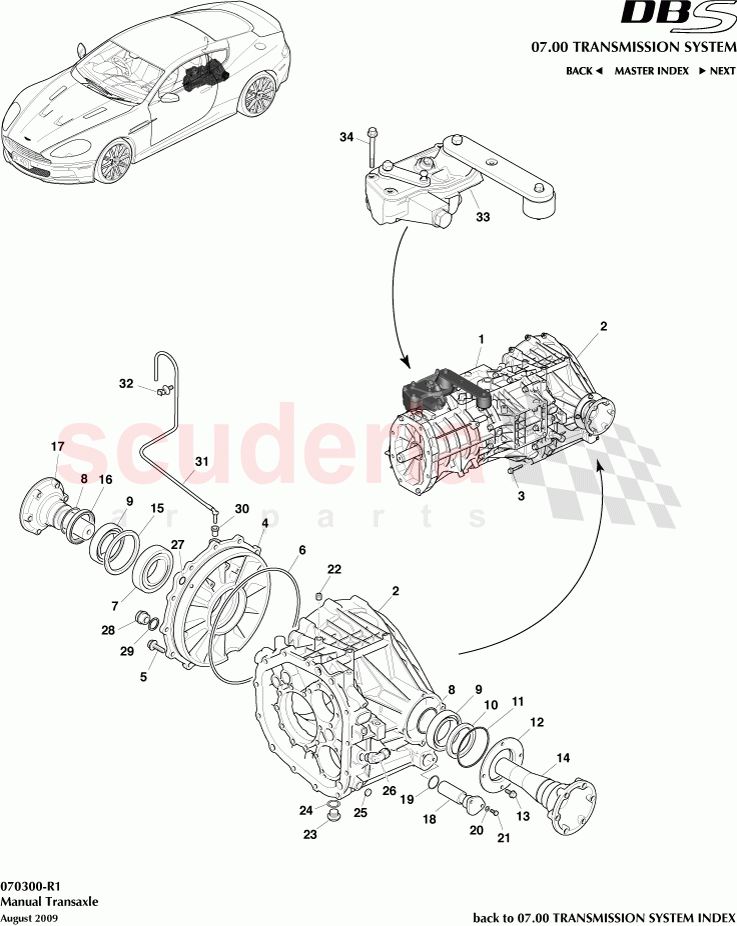

Manual Transaxle of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91793
MANUAL TRANSMISSION 		- 1 Enquire
2 4G432710611
HOUSING-DIFFERENTIAL 		- 1 Enquire
3 702815
BOLT M8 x 30
Trans to Diff 		- 13 Enquire
4 4G432710606
COVER - DIFFERENTIAL 		- 1 Enquire
5 702815
BOLT M8 x 30 		- 12 Enquire
6 4G432710607
SEAL - COVER 		- 1 Enquire
7 4G432710605
Bearing, Differential Output 		- 1 Enquire
8 702813
SHIM 		- 2 Enquire
9 4G432710603
Bearing, Differential Output Shaft 		- 2 Enquire
10 4G432710483
Seal, Differential Output Shaft, Left, 55 x 72 x 8 		- 1 Enquire
11 4G432710482
O Ring, 2.62 x 75.87 		- 1 Enquire
12 4G432710602
BEARING - DIF OUTPUT SHAFT LEFT HAND 		- 1 Enquire
13 702812
Bolt, M6 x 16, Hex Flange Head 		- 4 Enquire
14 4G432710600
OUTPUT SHAFT - LEFT SIDE DIF 		- 1 Enquire
15 702814
SHIM 		- 1 Enquire
16 4G432710604
Seal, Differential Output Shaft RH, 55 x 70 x 8 		- 1 Enquire
17 4G432710601
OUTPUT SHAFT - RIGHT SIDE DIF 		- 1 Enquire
18 4G432710490
Filter, Oil 		- 1 Enquire
19 4G432710491PK
O RING 2.62 x 20.63 (PACK OF 10) 		- 1 Enquire
20 702821
Washer, 5.3 x 0.5 		- 2 Enquire
21 4G432710492
Screw, M5 x 12 		- 2 Enquire
22 702817
Set Screw, M8 x 10 		- 6 Enquire
23 4G432710244
DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) 		- 1 Enquire
24 4G432710245PK
Copper Washer Drain Plug 22x28x1.5 (Pack of 10) 		- 1 Enquire
25 702818
PLUG 		- 1 Enquire
26 4G432710609
Pipe, trans cooling, 90° 		- 1 Enquire
27 4G432710502
O Ring, 2.69 x 9.92 		- 1 Enquire
28 4G432710493
PLUG - OIL LEVEL M22 		- 1 Enquire
29 4G432710245PK
Copper Washer Drain Plug 22x28x1.5 (Pack of 10) 		- 1 Enquire
30 4G432710488
Adaptor, Breather 		- 1 Enquire
31 4G437A245CA
TUBE ASSY - MAN TRANSMISSION BREATHE 		- 1 Enquire
32 701575
Clip, Trans Breather Pipe 		- 1 Enquire
33 6G337N372AB
BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT 		- 1 Enquire
34 4G4319G506BA
Grease, Input Shaft Spline 		- - Enquire
34 6G3375106AA/S
OIL-MAN TRANS 1 ltr 		- - Enquire
34 702822
BOLT M6 x 50 		- 2 Enquire
