Transaxle Cooling (Manual)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Transaxle Cooling (Manual)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D337H255BA HOSE AIR/OIL ASSY COOLER INLET Enquire To Order
Photo Part No Description Price (each) Stock
8D337H256BB HOSE AIR/OIL ASSY COOLER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
8D337K177CA CO0LER ASSY TRANMISS OIL Enquire To Order
Photo Part No Description Price (each) Stock
8D337H460AA DUCT TRANS AIR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
702298 BOLT M8x16 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD Enquire To Order
Photo Part No Description Price (each) Stock
8D338349AA Seal, Rad Air Deflector Lower Enquire To Order
View All

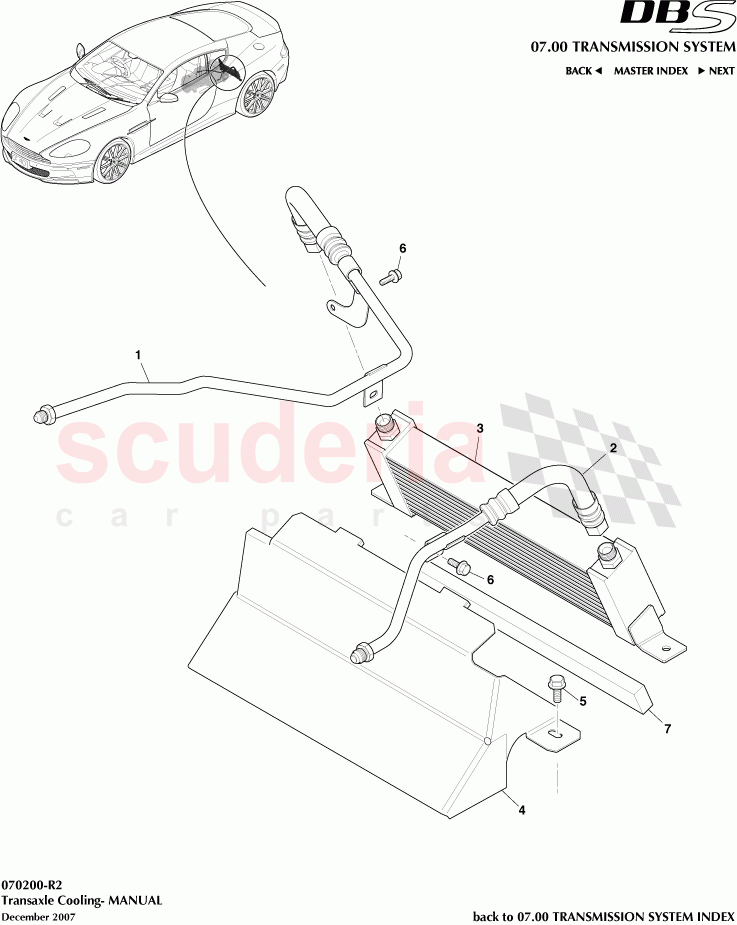

Transaxle Cooling (Manual) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D337H255BA
HOSE AIR/OIL ASSY COOLER INLET 		- 1 Enquire
2 8D337H256BB
HOSE AIR/OIL ASSY COOLER OUTLET 		- 1 Enquire
3 8D337K177CA
CO0LER ASSY TRANMISS OIL 		- 1 Enquire
4 8D337H460AA
DUCT TRANS AIR COOLER 		- 1 Enquire
5 702298
BOLT M8x16 HEX FLG 		- 2 Enquire
6 HY53E804349AA
M6 X 14 SCREW HEX HD 		- 2 Enquire
7 8D338349AA
Seal, Rad Air Deflector Lower 		- 1 Enquire
