Name: Automatic Transaxle (Differential)
Rating: 4.3 (1 reviews)

Automatic Transaxle (Differential) of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Automatic Transaxle (Differential)

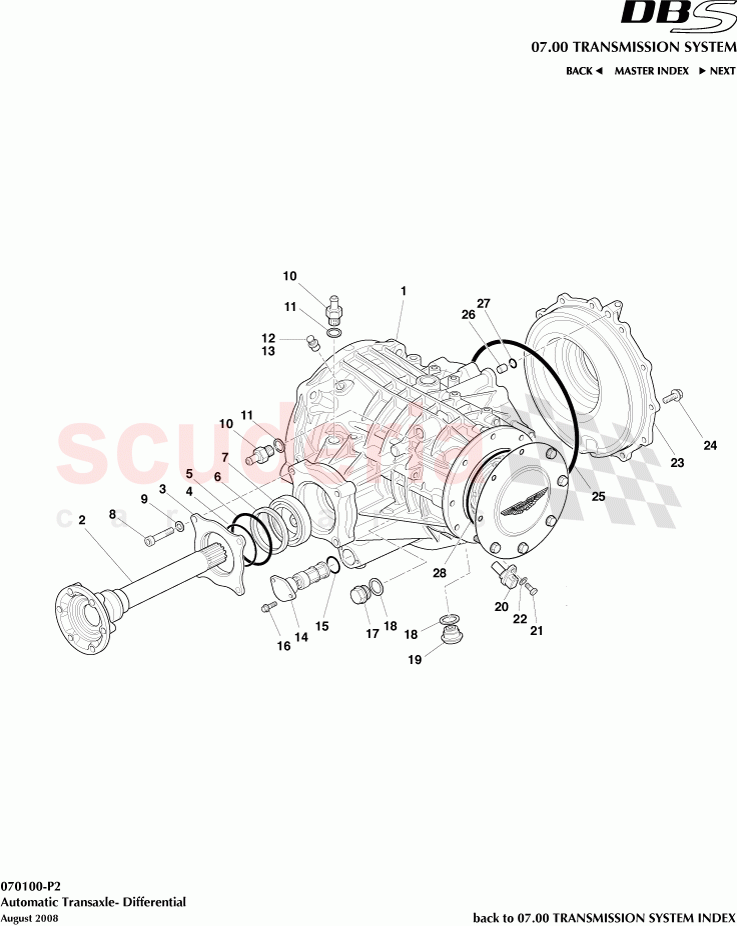

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD434200AA	Differential assy, rear- complete, AUTO	Enquire	To Order
	9D334200AB	DIFFERENTIAL AUTO	$24,218.47	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710480	OUTPUT SHAFT - LEFT SIDE DIFF	$1,613.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710481	Cover, Output Shaft, Differential	$292.57	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710482	O Ring, 2.62 x 75.87	$12.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432711055	O Ring, 2.62 x 94.92	$29.08	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	$78.68	To Order
	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	$77.89	To Order

Photo	Part No	Description	Price (each)	Stock
	CD332710007	Ball bearing, 50 x 80 x 16	$66.93	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710485	Screw, M8 x 30	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710486	WASHER - ELASTIC CURVE	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710487	Gasket, Flat, 16 x 22	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710488	Adaptor, Breather	$99.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710489	PLUG - BREATHER	$21.45	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710490	Filter, Oil	$211.45	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	$44.23	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710492	Screw, M5 x 12	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710493	PLUG - OIL LEVEL M22	$14.78	To Order
	4G432710494	Union, Oil Cooler	$47.53	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	$43.47	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	$54.16	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710495	SPEED SENSOR	$560.58	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710496	SCREW M6 x 16	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710497	WASHER - ELASTIC	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710498	COVER - DIFFERENTIAL	$842.02	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710499	Screw, M8 x 25	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710500	O Ring, 3.53 x 228.19	$86.02	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710501	DOWEL	$6.40	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710502	O Ring, 2.69 x 9.92	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	704349PK	TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12	$302.31	To Order
	4G432711158	O Ring, Rear Cover, 3.53 x 123.42	$59.39	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD434200AA	Differential assy, rear- complete, AUTO	AD434200AA Differential assy, rear- complete, AUTO 11MY	-	1	Enquire
1	9D334200AB	DIFFERENTIAL AUTO	9D334200AB DIFFERENTIAL AUTO	$24,218.47	1
2	4G432710480	OUTPUT SHAFT - LEFT SIDE DIFF	4G432710480 OUTPUT SHAFT - LEFT SIDE DIFF	$1,613.30	2
3	4G432710481	Cover, Output Shaft, Differential	4G432710481 Cover, Output Shaft, Differential	$292.57	1
4	4G432710482	O Ring, 2.62 x 75.87	4G432710482 O Ring, 2.62 x 75.87	$12.75	1
5	4G432711055	O Ring, 2.62 x 94.92	4G432711055 O Ring, 2.62 x 94.92	$29.08	1
6	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8	$78.68	1
6	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8	$77.89	1
7	CD332710007	Ball bearing, 50 x 80 x 16	CD332710007 Ball bearing, 50 x 80 x 16	$66.93	1
8	4G432710485	Screw, M8 x 30	4G432710485 Screw, M8 x 30	$0.87	4
9	4G432710486	WASHER - ELASTIC CURVE	4G432710486 WASHER - ELASTIC CURVE	$0.14	4
11	4G432710487	Gasket, Flat, 16 x 22	4G432710487 Gasket, Flat, 16 x 22	$0.87	2
12	4G432710488	Adaptor, Breather	4G432710488 Adaptor, Breather	$99.11	1
13	4G432710489	PLUG - BREATHER	4G432710489 PLUG - BREATHER	$21.45	1
14	4G432710490	Filter, Oil	4G432710490 Filter, Oil	$211.45	1
15	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	4G432710491PK O RING 2.62 x 20.63 (PACK OF 10)	$44.23	1
16	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12	$3.28	2
17	4G432710493	PLUG - OIL LEVEL M22	4G432710493 PLUG - OIL LEVEL M22	$14.78	1
17	4G432710494	Union, Oil Cooler	4G432710494 Union, Oil Cooler	$47.53	1
18	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	$43.47	2
19	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	$54.16	1
20	4G432710495	SPEED SENSOR	4G432710495 SPEED SENSOR	$560.58	1
21	4G432710496	SCREW M6 x 16	4G432710496 SCREW M6 x 16	$0.75	1
22	4G432710497	WASHER - ELASTIC	4G432710497 WASHER - ELASTIC	$0.14	1
23	4G432710498	COVER - DIFFERENTIAL	4G432710498 COVER - DIFFERENTIAL	$842.02	1
24	4G432710499	Screw, M8 x 25	4G432710499 Screw, M8 x 25	$2.30	12
25	4G432710500	O Ring, 3.53 x 228.19	4G432710500 O Ring, 3.53 x 228.19	$86.02	1
26	4G432710501	DOWEL	4G432710501 DOWEL	$6.40	1
27	4G432710502	O Ring, 2.69 x 9.92	4G432710502 O Ring, 2.69 x 9.92	$1.85	1
28	704349PK	TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12	704349PK TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12 -12 x 1 litre	$302.31	-
28	4G432711158	O Ring, Rear Cover, 3.53 x 123.42	4G432711158 O Ring, Rear Cover, 3.53 x 123.42	$59.39	1
