Transaxle Cooling Pipes (Auto)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Transaxle Cooling Pipes (Auto)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9D337F120BB Hose, Transmission Oil Cooler Inlet $248.37 To Order
Photo Part No Description Price (each) Stock
9D337F120AB Hose, Transmission Oil Cooler Outlet $307.30 To Order
Photo Part No Description Price (each) Stock
200020135PK Screw, M6 x 16, Flange Hex Head $307.51 To Order
Photo Part No Description Price (each) Stock
9G438777CA CLAMP HOSE OETIKER 025.5-1008R $6.85 IN STOCK
Photo Part No Description Price (each) Stock
9G437W093AA PIPE ASSEMBLY ENGINE BAY INLET $155.16 To Order
Photo Part No Description Price (each) Stock
9G437W093BA PIPE ASSEMBLY ENGINE BAY OUTLET $233.27 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $1.05 IN STOCK
Photo Part No Description Price (each) Stock
9G438777CA CLAMP HOSE OETIKER 025.5-1008R $6.85 IN STOCK
Photo Part No Description Price (each) Stock
9G43321363AA OIL PIPE ASSEMBLY REAR TRANSMISSION $1,005.62 To Order
Photo Part No Description Price (each) Stock
9G437D353AA Tube & Bracket Assembly, Transmission Oil Enquire To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.21 IN STOCK
Photo Part No Description Price (each) Stock
4G436L635AA Thermostat, Transmission Oil Control $1,132.29 To Order
Photo Part No Description Price (each) Stock
702298 BOLT M8x16 HEX FLG $0.18 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.21 IN STOCK
Photo Part No Description Price (each) Stock
4G4335568BA Pipe, Transmission Oil Inlet Enquire To Order
Photo Part No Description Price (each) Stock
4G4335568AA Pipe, Transmission Oil Outlet Enquire To Order
View All

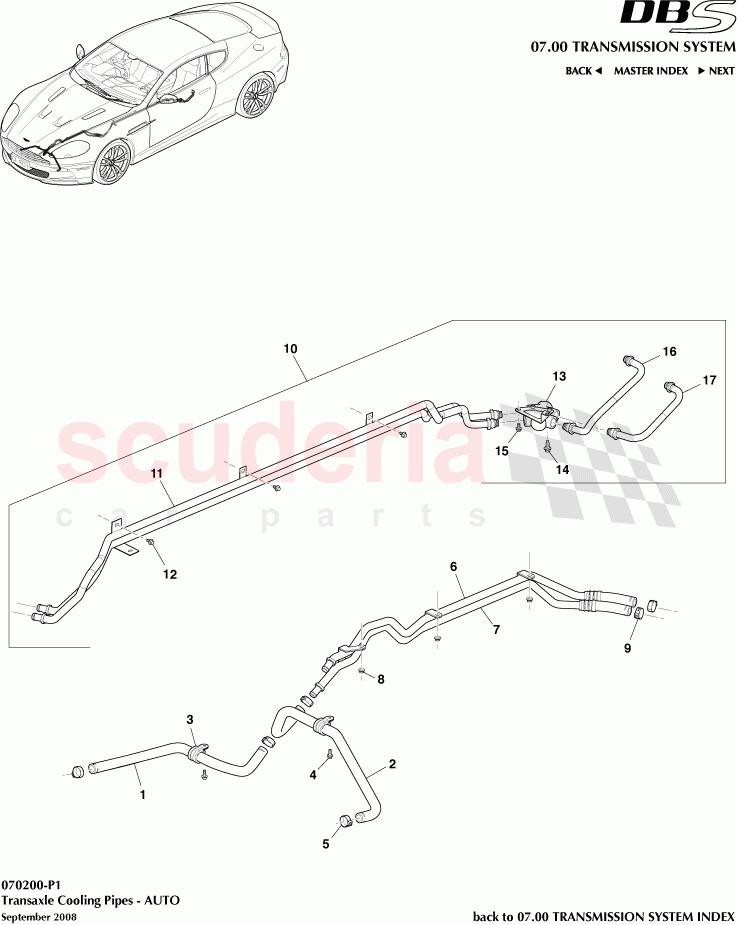

Transaxle Cooling Pipes (Auto) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9D337F120BB
Hose, Transmission Oil Cooler Inlet
incl. P clips 		$248.37 1
2 9D337F120AB
Hose, Transmission Oil Cooler Outlet
incl. P clips 		$307.30 1
4 200020135PK
Screw, M6 x 16, Flange Hex Head 		$307.51 2
5 9G438777CA
CLAMP HOSE OETIKER 025.5-1008R
IN STOCK 		$6.85 4
6 9G437W093AA
PIPE ASSEMBLY ENGINE BAY INLET 		$155.16 1
7 9G437W093BA
PIPE ASSEMBLY ENGINE BAY OUTLET 		$233.27 1
8 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$1.05 3
9 9G438777CA
CLAMP HOSE OETIKER 025.5-1008R
IN STOCK 		$6.85 2
10 9G43321363AA
OIL PIPE ASSEMBLY REAR TRANSMISSION 		$1,005.62 1
11 9G437D353AA
Tube & Bracket Assembly, Transmission Oil 		- 1 Enquire
12 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.21 3
13 4G436L635AA
Thermostat, Transmission Oil Control 		$1,132.29 1
14 702298
BOLT M8x16 HEX FLG 		$0.18 1
15 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.21 1
16 4G4335568BA
Pipe, Transmission Oil Inlet 		- 1 Enquire
17 4G4335568AA
Pipe, Transmission Oil Outlet 		- 1 Enquire
