Aston Martin DBS V12 - Clutch System (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D336375CA Flywheel Assembly Single Mass $2,805.87 To Order
8D336375AB FLYWHEEL ASSEMBLY SINGLE MASS $801.25 To Order
Photo Part No Description Price (each) Stock
697748 Plug-Oil Pan Drain $26.96 To Order
Photo Part No Description Price (each) Stock
AD237540AB CLUTCH ASSENBLY, TWIN PLATE 215MM $3,234.83 To Order
Photo Part No Description Price (each) Stock
AD237A564AA Slave Cylinder, Clutch $1,505.01 To Order
4G437A564AB Clutch Slave Cylinder $545.74 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
Photo Part No Description Price (each) Stock
4G437K640BB STUTZEN BLEED TO CSC M8 $25.46 To Order
Photo Part No Description Price (each) Stock
4G437K640AB STUTZEN FEED TO CSC M12x1.0 $25.46 To Order
Photo Part No Description Price (each) Stock
4G437H552AB HOSE ASSY - CLUTCH BLEED $131.61 To Order
Photo Part No Description Price (each) Stock
4G437608BB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE LHD $182.85 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 To Order
Photo Part No Description Price (each) Stock
4G43R7N630AC BRACKET CLUTCH LINE LHD $48.23 To Order
Photo Part No Description Price (each) Stock
701158 SCREW M6x10 BUTTON HD TORX BLACK $1.34 To Order
Photo Part No Description Price (each) Stock
4G437608DB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER LHD $70.74 To Order
Photo Part No Description Price (each) Stock
4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl $78.68 To Order
Photo Part No Description Price (each) Stock
AD23CD60AA Bolt, M6 x 1.0 x 75, Socket Head $3.99 To Order
View All

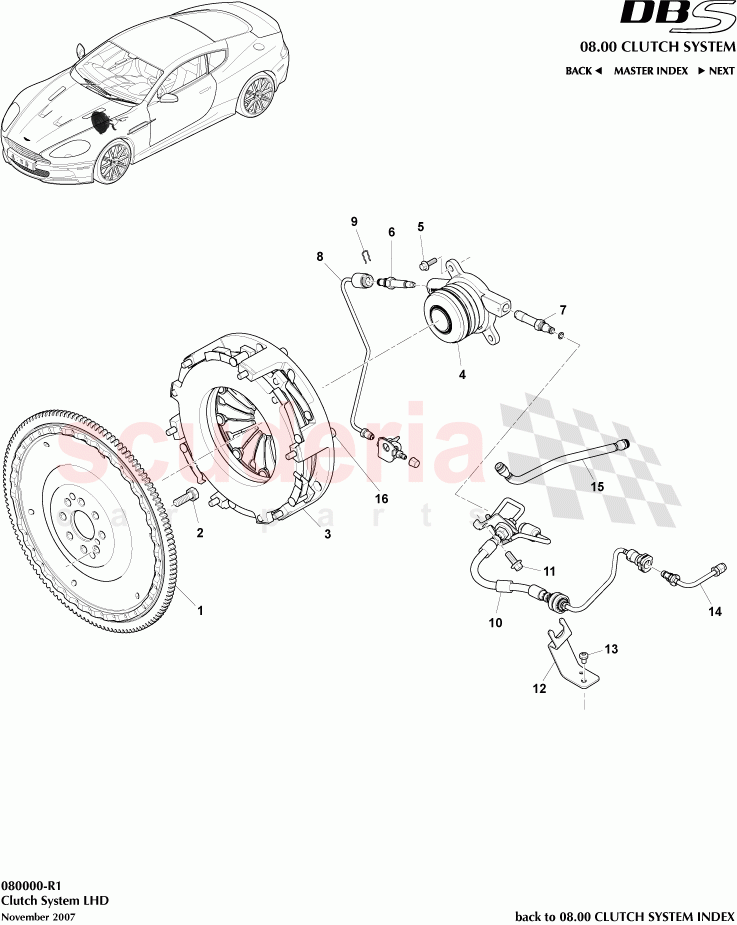

Clutch System (LHD) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G431111200
Clutch Kit
ARRIVING SOON 		$4,876.16 1
1 8D336375CA
Flywheel Assembly Single Mass
*Please use latest level when replacement fitted 		$2,805.87 1
1 8D336375AB
FLYWHEEL ASSEMBLY SINGLE MASS 		$801.25 1
2 697748
Plug-Oil Pan Drain
*Do not re-use, change each time. 		$26.96 8
3 AD237540AB
CLUTCH ASSENBLY, TWIN PLATE 215MM
*Please use latest level when replacement fitted 		$3,234.83 1
4 AD237A564AA
Slave Cylinder, Clutch
*Please use latest level when replacement fitted 		$1,505.01 1
4 4G437A564AB
Clutch Slave Cylinder 		$545.74 1
5 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		$0.21 2
6 4G437K640BB
STUTZEN BLEED TO CSC M8 		$25.46 1
7 4G437K640AB
STUTZEN FEED TO CSC M12x1.0 		$25.46 1
8 4G437H552AB
HOSE ASSY - CLUTCH BLEED 		$131.61 1
10 4G437608BB
HOSE ASSY - CLUTCH MASTER CYLINDER TUBE LHD
LHD 		$182.85 1
11 703121
Screw, M8 x 25, Hex Flange Head 		$0.29 1
12 4G43R7N630AC
BRACKET CLUTCH LINE LHD 		$48.23 1
13 701158
SCREW M6x10 BUTTON HD TORX BLACK 		$1.34 2
14 4G437608DB
TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER LHD
LHD 		$70.74 1
15 4G4341360BA
Pipe, Clutch Low Pressure, Reservoir to Master Cyl 		$78.68 1
16 AD23CD60AA
Bolt, M6 x 1.0 x 75, Socket Head
*Please use latest level when replacement fitted 		$3.99 9
