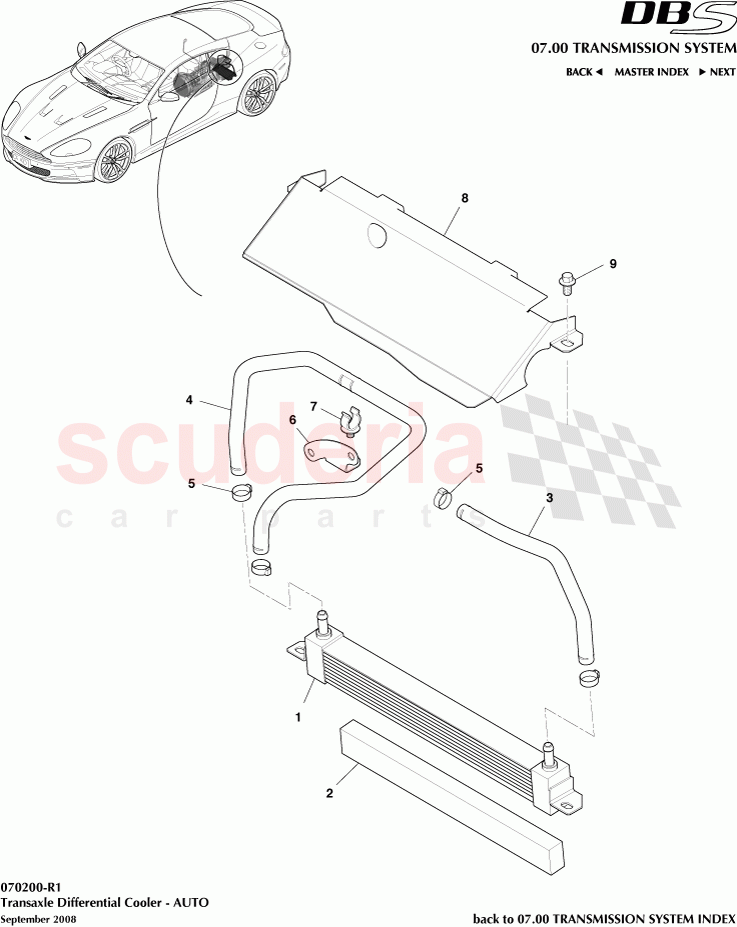

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9D337869CA	Differential Oil Cooler and Bracket Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338349AA	Seal, Rad Air Deflector Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D337H256BA	Hose, Diff Cooler Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D337H255BA	Hose, Diff Cooler Inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699547	Clamp, Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D337B142AA	Bracket, Trans Oil Cooler Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701181	Clip, 16 x 6.5 x 1.5-6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D337H460AB	Duct, Trans Air Cool, Diff	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702298	BOLT M8x16 HEX FLG	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9D337869CA	Differential Oil Cooler and Bracket Assembly	9D337869CA Differential Oil Cooler and Bracket Assembly	-	1	Enquire
2	8D338349AA	Seal, Rad Air Deflector Lower	8D338349AA Seal, Rad Air Deflector Lower	-	1	Enquire
3	9D337H256BA	Hose, Diff Cooler Outlet	9D337H256BA Hose, Diff Cooler Outlet	-	1	Enquire
4	9D337H255BA	Hose, Diff Cooler Inlet	9D337H255BA Hose, Diff Cooler Inlet	-	1	Enquire
5	699547	Clamp, Hose	699547 Clamp, Hose	-	4	Enquire
6	9D337B142AA	Bracket, Trans Oil Cooler Mounting	9D337B142AA Bracket, Trans Oil Cooler Mounting	-	1	Enquire
7	701181	Clip, 16 x 6.5 x 1.5-6	701181 Clip, 16 x 6.5 x 1.5-6	-	1	Enquire
8	9D337H460AB	Duct, Trans Air Cool, Diff	9D337H460AB Duct, Trans Air Cool, Diff	-	1	Enquire
9	702298	BOLT M8x16 HEX FLG	702298 BOLT M8x16 HEX FLG	-	2	Enquire
