Name: Clutch System (RHD)
Rating: 4.9 (1 reviews)

Clutch System (RHD) of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Clutch System (RHD)

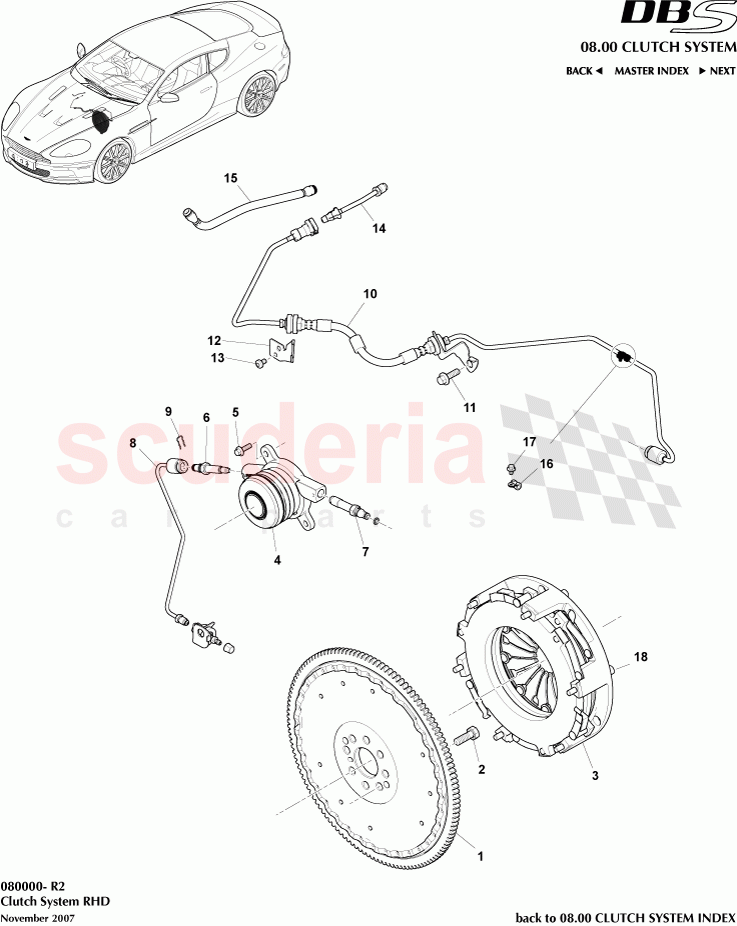

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D336375AB	FLYWHEEL ASSEMBLY SINGLE MASS	$801.25	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	$26.96	To Order

Photo	Part No	Description	Price (each)	Stock
	AD237540AB	CLUTCH ASSENBLY, TWIN PLATE 215MM	$3,234.83	To Order

Photo	Part No	Description	Price (each)	Stock
	AD237A564AA	Slave Cylinder, Clutch	$1,505.01	To Order
	4G437A564AB	Clutch Slave Cylinder	$545.74	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640BB	STUTZEN BLEED TO CSC M8	$25.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	$25.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437H552AB	HOSE ASSY - CLUTCH BLEED	$131.61	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608AB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD	$182.85	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43R7N630BB	BRACKET CLUTCH LINE RHD	$24.30	To Order

Photo	Part No	Description	Price (each)	Stock
	701158	SCREW M6x10 BUTTON HD TORX BLACK	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608CB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	$32.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	$78.68	To Order

Photo	Part No	Description	Price (each)	Stock
	699632	'P' CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	$3.99	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	4G431111200	Clutch Kit ARRIVING SOON	4G431111200 Clutch Kit ARRIVING SOON	$4,876.16	1
1	8D336375AB	FLYWHEEL ASSEMBLY SINGLE MASS	8D336375AB FLYWHEEL ASSEMBLY SINGLE MASS 8D33-6375-CA	$801.25	-
2	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain * Do not re-use, change each time.	$26.96	8
3	AD237540AB	CLUTCH ASSENBLY, TWIN PLATE 215MM	AD237540AB CLUTCH ASSENBLY, TWIN PLATE 215MM -Please use latest level when replacement fitted*	$3,234.83	1
4	AD237A564AA	Slave Cylinder, Clutch	AD237A564AA Slave Cylinder, Clutch -Please use latest level when replacement fitted*	$1,505.01	1
4	4G437A564AB	Clutch Slave Cylinder	4G437A564AB Clutch Slave Cylinder	$545.74	1
5	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	$0.21	2
6	4G437K640BB	STUTZEN BLEED TO CSC M8	4G437K640BB STUTZEN BLEED TO CSC M8	$25.46	1
7	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	4G437K640AB STUTZEN FEED TO CSC M12x1.0	$25.46	1
8	4G437H552AB	HOSE ASSY - CLUTCH BLEED	4G437H552AB HOSE ASSY - CLUTCH BLEED	$131.61	1
10	4G437608AB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD	4G437608AB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD RHD	$182.85	1
11	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	$0.29	1
12	4G43R7N630BB	BRACKET CLUTCH LINE RHD	4G43R7N630BB BRACKET CLUTCH LINE RHD	$24.30	1
13	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK	$1.34	2
14	4G437608CB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	4G437608CB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD RHD	$32.32	1
15	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl	$78.68	1
16	699632	'P' CLIP	699632 'P' CLIP	$1.18	1
17	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	703206 SCREW-M5 x 8 HEX FLG CHROME FREE	$1.68	1
18	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	AD23CD60AA Bolt, M6 x 1.0 x 75, Socket Head -Please use latest level when replacement fitted*	$3.99	6
