Engine Cooling Pack (line fit) of Aston Martin Aston Martin DB9 (2013-2016)

View All

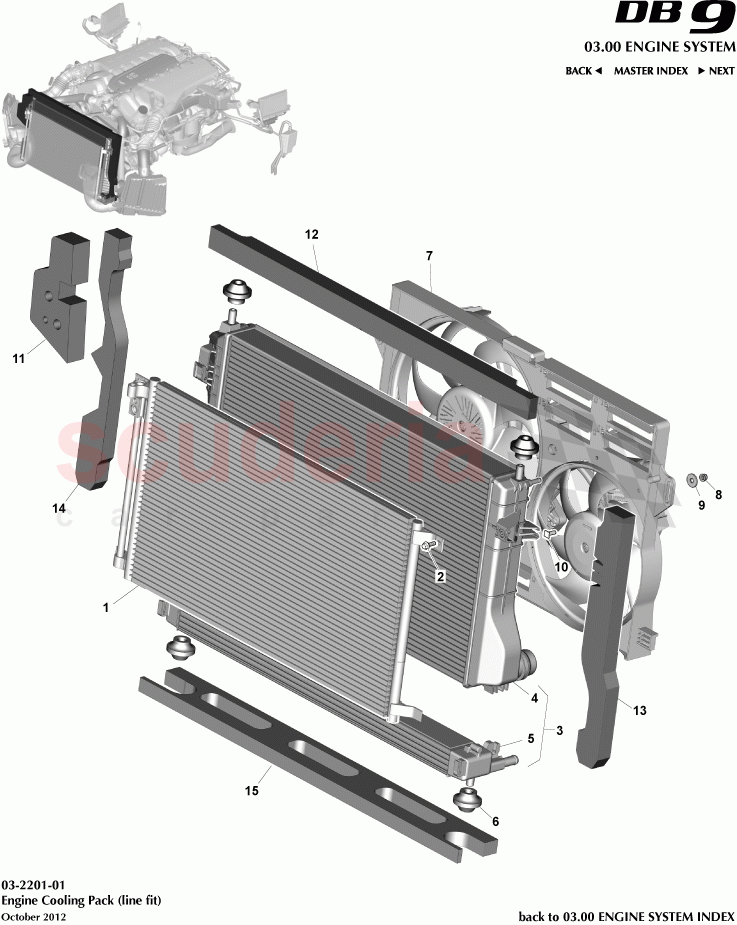

Aston Martin DB9 (2013-2016) - Engine Cooling Pack (line fit)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4319710AA	Condenser	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703750	Bolt, M6 x 20, Hex Flg Hd	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD338W000BA	Radiator and Oil Cooler Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD338005BA	Radiator Module Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD337A095BA	Oil Cooler, Auto Trans	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3285101PK	Bush Mounting Upper (Pack of 2)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D338C607AD	Fan Module	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699614	WASHER 22 X 6.8 X 2 STAINLESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703728	Screw, M6 x 19, Square Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43C8585BA	Foam Pad	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CG438N301AA	Foam Seal - Upper Fan Module	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock

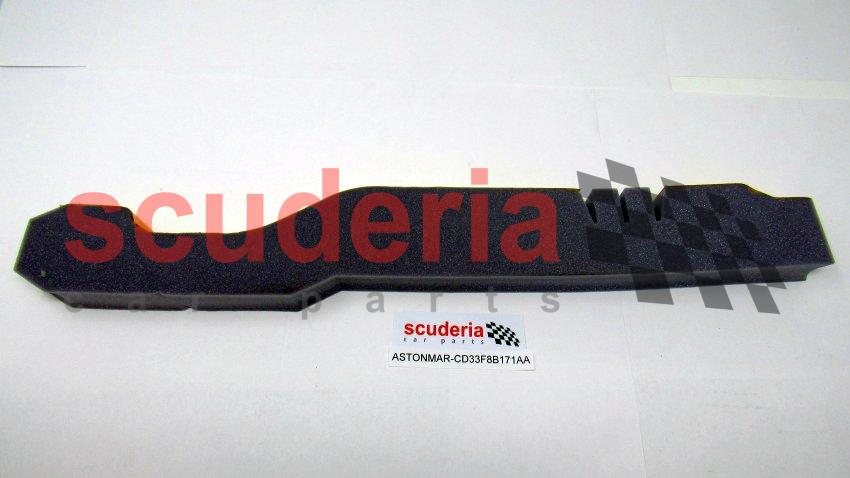

	CD33F8B171AA	Foam Seal, Radiator LH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock

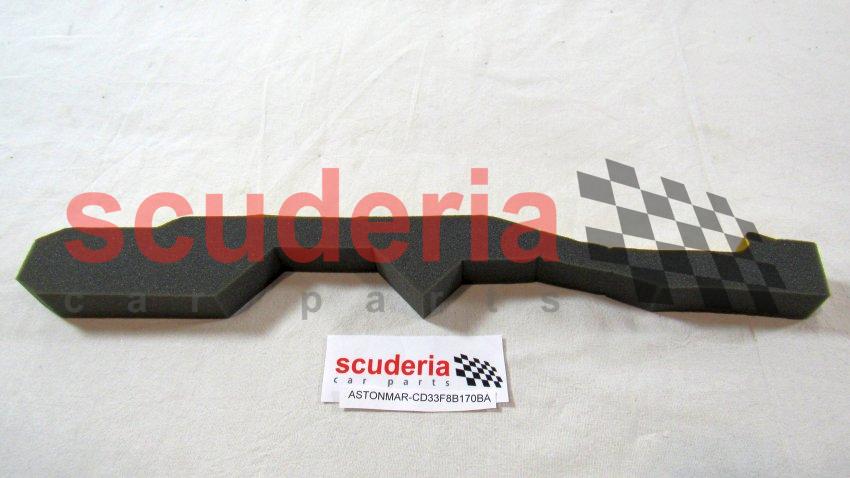

	CD33F8B170BA	Foam Seal, Radiator RH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CG438C477AD	Foam Seal, Lower	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	1R12322666AAPK COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12 Pack of 12	-	1	Enquire
1	9G4319710AA	Condenser IN STOCK	9G4319710AA Condenser IN STOCK	-	1	Enquire
2	703750	Bolt, M6 x 20, Hex Flg Hd IN STOCK	703750 Bolt, M6 x 20, Hex Flg Hd IN STOCK	-	1	Enquire
3	CD338W000BA	Radiator and Oil Cooler Assy	CD338W000BA Radiator and Oil Cooler Assy	-	1	Enquire
4	CD338005BA	Radiator Module Assembly	CD338005BA Radiator Module Assembly	-	1	Enquire
5	CD337A095BA	Oil Cooler, Auto Trans	CD337A095BA Oil Cooler, Auto Trans	-	1	Enquire
6	3285101PK	Bush Mounting Upper (Pack of 2) IN STOCK	3285101PK Bush Mounting Upper (Pack of 2) Pack of 2 IN STOCK	-	4	Enquire
7	8D338C607AD	Fan Module IN STOCK	8D338C607AD Fan Module IN STOCK	-	1	Enquire
8	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	-	2	Enquire
9	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS	-	2	Enquire
10	703728	Screw, M6 x 19, Square Head IN STOCK	703728 Screw, M6 x 19, Square Head IN STOCK	-	2	Enquire
11	4G43C8585BA	Foam Pad IN STOCK	4G43C8585BA Foam Pad IN STOCK	-	1	Enquire
12	CG438N301AA	Foam Seal - Upper Fan Module IN STOCK	CG438N301AA Foam Seal - Upper Fan Module IN STOCK	-	1	Enquire
13	CD33F8B171AA	Foam Seal, Radiator LH IN STOCK	CD33F8B171AA Foam Seal, Radiator LH IN STOCK	-	1	Enquire
14	CD33F8B170BA	Foam Seal, Radiator RH IN STOCK	CD33F8B170BA Foam Seal, Radiator RH IN STOCK	-	1	Enquire
15	CG438C477AD	Foam Seal, Lower IN STOCK	CG438C477AD Foam Seal, Lower IN STOCK	-	1	Enquire
