Aston Martin DB9 (2013-2016) - Engine Lubrication

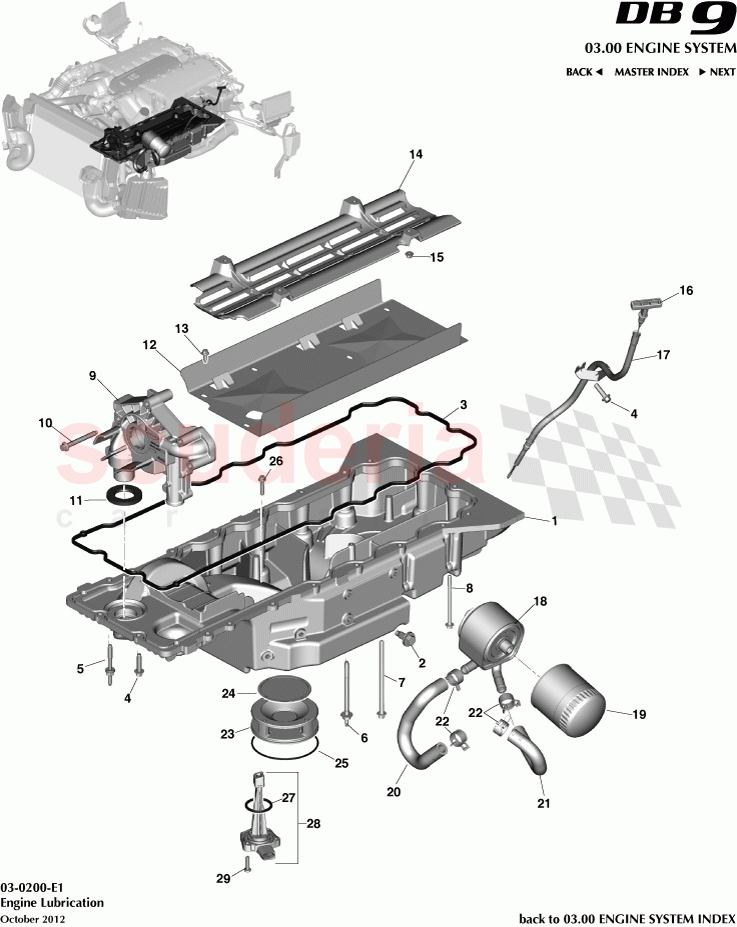

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD336675CE	OIL PAN ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410205	Plug, Oil Pan Drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	485092	Engine Sump Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702526	Bolt M8 x 30 Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706713	STUD M8 + M6 HF PIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706714	BOLT - M8 x 140 HF8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706715	BOLT- M8 x 105 HF8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G430411112	Service Assy - Oil Pump	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	702552	BOLT M8 X 70 HF PIL 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410196	Seal, Oil Pump Pickup Tube to Pan	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	8D336686AD	Baffle Plate, Oil Pan	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	705052	Screw, M6 x 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD236B660AC	WINDAGE TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336754AB	Tube Assy, Oil Level Indicator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336A642AA	Oil Cooler, Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG436714AA	Oil Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD338B451AC	Hose Assy, Oil Cooler Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336N867AA	Hose Assy, Oil Cooler Inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3285381	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33292435CB	Body, Oil Pick Up	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336629AA	Screen, Oil Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336625BA	O Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3310630CAA	Bolt, M6 x 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8W9387030BA	O Ring, Engine Low Oil Level Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410972	Sensor Engine Low Oil Level	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702847	SCREW-M6x25 PAN INT LOB 8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CD336675CE	OIL PAN ASSY	CD336675CE OIL PAN ASSY Includes items 2, and 23-29	-	1	Enquire
2	4G430410205	Plug, Oil Pan Drain	4G430410205 Plug, Oil Pan Drain	-	1	Enquire
3	485092	Engine Sump Gasket	485092 Engine Sump Gasket	-	1	Enquire
4	702526	Bolt M8 x 30 Hex Flange Head	702526 Bolt M8 x 30 Hex Flange Head	-	9	Enquire
5	702604	STUD & WASHER M6 x 20 + M8 x 47.5 HF	702604 STUD & WASHER M6 x 20 + M8 x 47.5 HF	-	1	Enquire
6	706713	STUD M8 + M6 HF PIL	706713 STUD M8 + M6 HF PIL	-	1	Enquire
7	706714	BOLT - M8 x 140 HF8	706714 BOLT - M8 x 140 HF8	-	4	Enquire
8	706715	BOLT- M8 x 105 HF8	706715 BOLT- M8 x 105 HF8	-	5	Enquire
9	8G430411112	Service Assy - Oil Pump ARRIVING SOON	8G430411112 Service Assy - Oil Pump ARRIVING SOON	-	1	Enquire
10	702552	BOLT M8 X 70 HF PIL 8	702552 BOLT M8 X 70 HF PIL 8	-	4	Enquire
11	4G430410196	Seal, Oil Pump Pickup Tube to Pan ARRIVING SOON	4G430410196 Seal, Oil Pump Pickup Tube to Pan ARRIVING SOON	-	1	Enquire
12	8D336686AD	Baffle Plate, Oil Pan	8D336686AD Baffle Plate, Oil Pan	-	1	Enquire
13	705052	Screw, M6 x 14	705052 Screw, M6 x 14	-	7	Enquire
14	AD236B660AC	WINDAGE TRAY	AD236B660AC WINDAGE TRAY	-	1	Enquire
15	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	4	Enquire
16	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY	8D336750CA OIL LEVEL INDICATOR ASSEMBLY	-	1	Enquire
17	CD336754AB	Tube Assy, Oil Level Indicator	CD336754AB Tube Assy, Oil Level Indicator	-	1	Enquire
18	CD336A642AA	Oil Cooler, Engine	CD336A642AA Oil Cooler, Engine	-	1	Enquire
19	AG436714AA	Oil Filter	AG436714AA Oil Filter Pack of 12	-	1	Enquire
20	CD338B451AC	Hose Assy, Oil Cooler Outlet	CD338B451AC Hose Assy, Oil Cooler Outlet	-	1	Enquire
21	CD336N867AA	Hose Assy, Oil Cooler Inlet	CD336N867AA Hose Assy, Oil Cooler Inlet	-	1	Enquire
22	3285381	CLAMP	3285381 CLAMP	-	4	Enquire
23	CD33292435CB	Body, Oil Pick Up	CD33292435CB Body, Oil Pick Up	-	1	Enquire
24	CD336629AA	Screen, Oil Pump	CD336629AA Screen, Oil Pump	-	1	Enquire
25	CD336625BA	O Ring	CD336625BA O Ring	-	1	Enquire
26	CD3310630CAA	Bolt, M6 x 30	CD3310630CAA Bolt, M6 x 30	-	4	Enquire
27	8W9387030BA	O Ring, Engine Low Oil Level Sensor	8W9387030BA O Ring, Engine Low Oil Level Sensor	-	1	Enquire
28	4G430410972	Sensor Engine Low Oil Level	4G430410972 Sensor Engine Low Oil Level	-	1	Enquire
29	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	4	Enquire
