Engine Sealing of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Engine Sealing

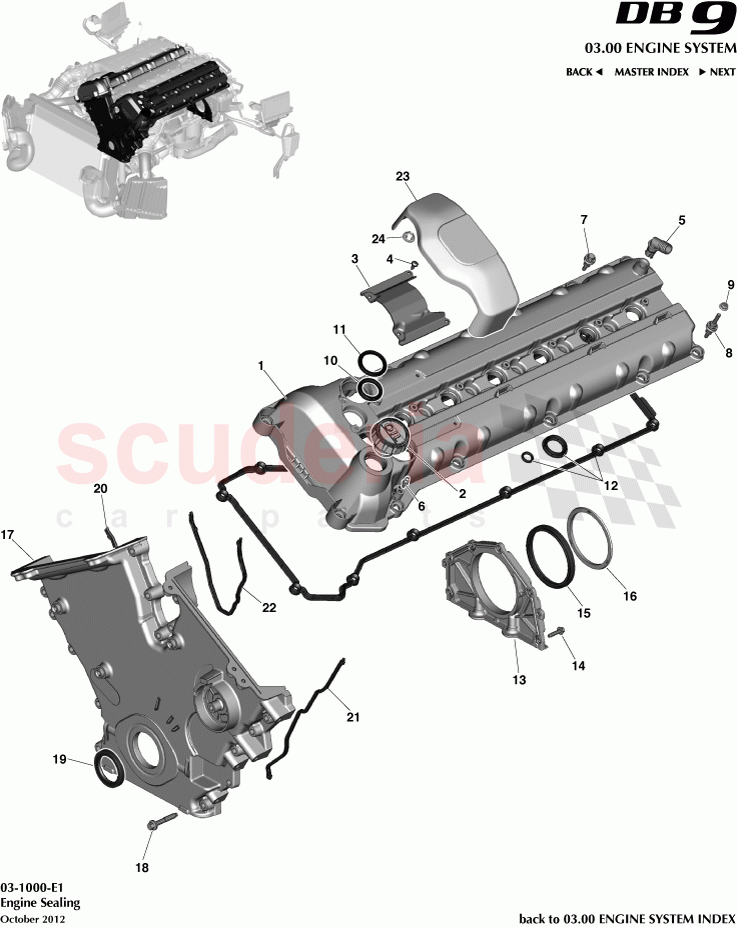

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD336A505AB	CVR ASY VLV RCKR ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336766AA	Oil Filler Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336P068AB	Coil Cover, Spark Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706471	SCREW-5 x 16 PN TI R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3395487AA	Vent Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD335867827AA	Snaploc Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BK2Q6A548EA	Decoupling Sys	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BK2Q6A548FA	Decoupling Sys Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33608166AA	Seal, OCV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336L270AA	Gasket, Radial	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3338565AA	Gasket Kit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185003	Retainer, Crankshaft Oil Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706648	SCREW-M6 x 22 HEX FL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120110434	Seal Crankshaft Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110194	Slinger, Rear Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G430311422	KIT-FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697737	BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	385067	Oil Seal - Crankshaft Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	385066	Gasket Engine Front Cover RH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	385064	Gasket Engine Front Cover LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	385065	Gasket Front Cover Centre	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	CD3313C026AA	Cover, Oil Control Valve Solenoid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD333296AA	Female Bollhoff Fixing	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD336582AB	CVR ASY VLV RCKR ARM	CD336582AB CVR ASY VLV RCKR ARM	-	1	Enquire
1	CD336A505AB	CVR ASY VLV RCKR ARM	CD336A505AB CVR ASY VLV RCKR ARM	-	1	Enquire
2	CD336766AA	Oil Filler Cap	CD336766AA Oil Filler Cap	-	1	Enquire
3	CD336P068AB	Coil Cover, Spark Plug	CD336P068AB Coil Cover, Spark Plug	-	2	Enquire
4	706471	SCREW-5 x 16 PN TI R	706471 SCREW-5 x 16 PN TI R	-	8	Enquire
5	CD3395487AA	Vent Pipe	CD3395487AA Vent Pipe	-	2	Enquire
6	CD335867827AA	Snaploc Screw	CD335867827AA Snaploc Screw	-	6	Enquire
7	BK2Q6A548EA	Decoupling Sys	BK2Q6A548EA Decoupling Sys	-	30	Enquire
8	BK2Q6A548FA	Decoupling Sys Stud	BK2Q6A548FA Decoupling Sys Stud	-	4	Enquire
9	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	4	Enquire
10	CD33608166AA	Seal, OCV	CD33608166AA Seal, OCV	-	4	Enquire
11	CD336L270AA	Gasket, Radial	CD336L270AA Gasket, Radial	-	4	Enquire
12	CD3338565AA	Gasket Kit	CD3338565AA Gasket Kit Gaskets Not Available Separately	-	2	Enquire
13	185003	Retainer, Crankshaft Oil Seal	185003 Retainer, Crankshaft Oil Seal	-	1	Enquire
14	706648	SCREW-M6 x 22 HEX FL	706648 SCREW-M6 x 22 HEX FL	-	6	Enquire
15	1R120110434	Seal Crankshaft Rear	1R120110434 Seal Crankshaft Rear	-	1	Enquire
16	4G430110194	Slinger, Rear Seal	4G430110194 Slinger, Rear Seal	-	1	Enquire
17	8G430311422	KIT-FRONT COVER	8G430311422 KIT-FRONT COVER	-	1	Enquire
18	697737	BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	697737 BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	-	13	Enquire
19	385067	Oil Seal - Crankshaft Front	385067 Oil Seal - Crankshaft Front	-	1	Enquire
20	385066	Gasket Engine Front Cover RH ARRIVING SOON	385066 Gasket Engine Front Cover RH ARRIVING SOON	-	1	Enquire
21	385064	Gasket Engine Front Cover LH	385064 Gasket Engine Front Cover LH	-	1	Enquire
22	385065	Gasket Front Cover Centre ARRIVING SOON	385065 Gasket Front Cover Centre ARRIVING SOON	-	1	Enquire
23	CD3313C026AA	Cover, Oil Control Valve Solenoid	CD3313C026AA Cover, Oil Control Valve Solenoid	-	2	Enquire
24	CD333296AA	Female Bollhoff Fixing	CD333296AA Female Bollhoff Fixing	-	6	Enquire
