Engine Structure of Aston Martin Aston Martin DB9 (2013-2016)

View All

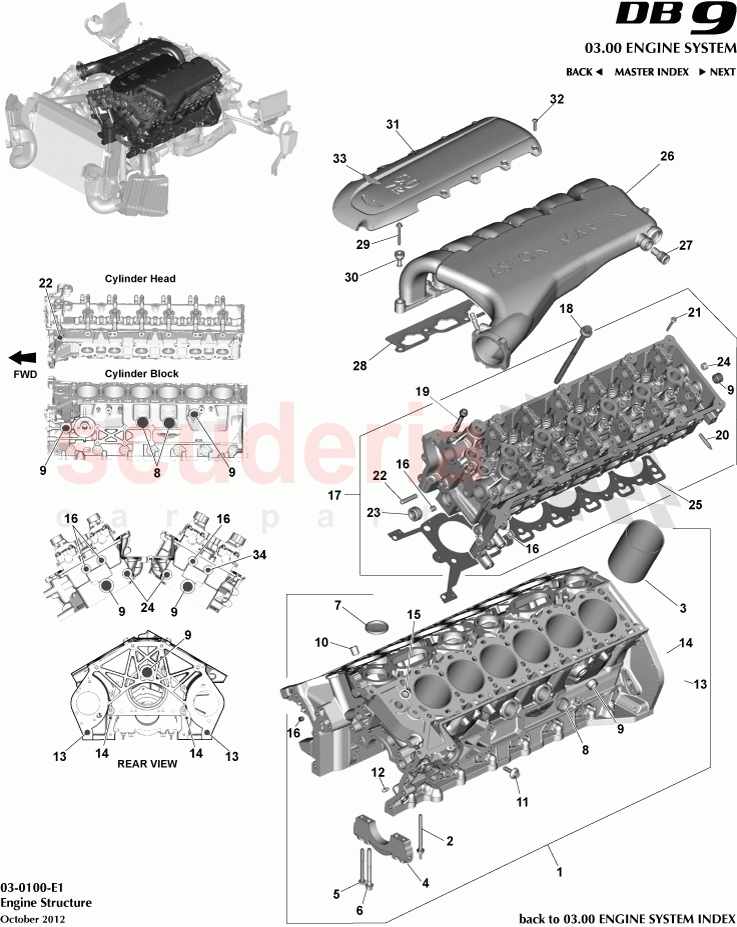

Aston Martin DB9 (2013-2016) - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD336010AE	Cylinder Block Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185133	Stud Bolt, Bearing Caps	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	7G436055AA	Cylinder Liner, V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G430110203	Bolt, M10 x 1.5 x 91	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185000	Plug, 52.6 dia cup	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184997	Plug 1.26 Cup (32mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W701202S300	Pin, 8 x 18.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110819	Bolt Main Bearing Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707150	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699134	Dowel, Hollow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707151	PIN-6x16 DWL CHMFR H	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704775	Plug, 19.35, Exp Cup	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336M099AA	Cylinder Head Assy, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703690	Bolt M8 x 63 Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707130	BOLT-M6x1.06x40 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707152	PIN-10 x 49.25 DWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707154	PLUG-1 x11.5 SCKT HX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	686441	PLUG-3/8 - 18x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336083AA	Gasket, Cylinder Head, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG439424BD	MANF ASSY INTKE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432A411AA	CARTRIDGE ASSEMBLY	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430810002	Isolator, Intake, Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD339J444BA	SUPPORT BRACE - INT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702847	SCREW-M6x25 PAN INT LOB 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33001B46BB	Wing Badge, Engine Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED230610174	ADAPTOR-O/PRESS SWTC	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	91952	Engine Assy, AM11	91952 Engine Assy, AM11	-	1	Enquire
-	CD336049BB	HEAD ASSY CYL RH	CD336049BB HEAD ASSY CYL RH Includes Valves, Adjusters & Springs, Excludes Camshafts	-	1	Enquire
-	CD336050BC	HEAD ASSY CYL LH	CD336050BC HEAD ASSY CYL LH Excludes Valves, Adjusters, Springs & Camshafts	-	1	Enquire
-	CD336049BB	HEAD ASSY CYL RH	CD336049BB HEAD ASSY CYL RH Excludes Valves, Adjusters, Springs & Camshafts	-	1	Enquire
-	CD336051AA	Gasket, Cylinder Head, RH	CD336051AA Gasket, Cylinder Head, RH	-	1	Enquire
-	DG439424AC	MANF ASSY INTK RH	DG439424AC MANF ASSY INTK RH Includes Item 27 and Air Temp Sensor	-	1	Enquire
1	CD336010AE	Cylinder Block Assy	CD336010AE Cylinder Block Assy	-	1	Enquire
2	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ARRIVING SOON	-	4	Enquire
3	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12	-	12	Enquire
4	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR	-	7	Enquire
5	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	-	10	Enquire
6	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91	-	14	Enquire
7	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup	-	4	Enquire
8	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm)	-	4	Enquire
9	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	7	Enquire
10	W701202S300	Pin, 8 x 18.25	W701202S300 Pin, 8 x 18.25	-	4	Enquire
11	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap	-	14	Enquire
12	707150	PIN	707150 PIN	-	2	Enquire
13	699134	Dowel, Hollow	699134 Dowel, Hollow	-	2	Enquire
14	707151	PIN-6x16 DWL CHMFR H	707151 PIN-6x16 DWL CHMFR H	-	2	Enquire
15	704775	Plug, 19.35, Exp Cup	704775 Plug, 19.35, Exp Cup	-	1	Enquire
16	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	10	Enquire
17	CD336M099AA	Cylinder Head Assy, LH	CD336M099AA Cylinder Head Assy, LH Includes Valves, Adjusters & Springs, Excludes Camshafts	-	1	Enquire
18	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head	-	28	Enquire
19	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head	-	4	Enquire
20	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	-	24	Enquire
21	707130	BOLT-M6x1.06x40 HEX	707130 BOLT-M6x1.06x40 HEX	-	56	Enquire
22	707152	PIN-10 x 49.25 DWL	707152 PIN-10 x 49.25 DWL	-	2	Enquire
23	707154	PLUG-1 x11.5 SCKT HX	707154 PLUG-1 x11.5 SCKT HX	-	2	Enquire
24	686441	PLUG-3/8 - 18x 10.8	686441 PLUG-3/8 - 18x 10.8	-	2	Enquire
25	CD336083AA	Gasket, Cylinder Head, LH	CD336083AA Gasket, Cylinder Head, LH	-	1	Enquire
26	DG439424BD	MANF ASSY INTKE LH	DG439424BD MANF ASSY INTKE LH Includes Item 27	-	1	Enquire
27	4G432A411AA	CARTRIDGE ASSEMBLY ARRIVING SOON	4G432A411AA CARTRIDGE ASSEMBLY ARRIVING SOON	-	2	Enquire
28	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) Pack of 2	-	2	Enquire
29	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	-	14	Enquire
30	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold	-	14	Enquire
31	CD339J444BA	SUPPORT BRACE - INT	CD339J444BA SUPPORT BRACE - INT	-	1	Enquire
32	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	8	Enquire
33	8D33001B46BB	Wing Badge, Engine Manifold	8D33001B46BB Wing Badge, Engine Manifold	-	1	Enquire
34	ED230610174	ADAPTOR-O/PRESS SWTC	ED230610174 ADAPTOR-O/PRESS SWTC	-	1	Enquire
