Engine Cooling (Engine Fit)

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Engine Cooling (Engine Fit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD338A586AA Housing and Connection Assembly, Engine Thermostat Enquire To Order
Photo Part No Description Price (each) Stock
CD338575AA Thermostat Enquire To Order
Photo Part No Description Price (each) Stock
3285116 Seal Thermostat Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
3285114 O Ring - Seal Housing Enquire To Order
Photo Part No Description Price (each) Stock
CD333910072 SENSOR- OIL/WATER TP Enquire To Order
Photo Part No Description Price (each) Stock
3285112 O Ring - Water Outlet Enquire To Order
Photo Part No Description Price (each) Stock
3285113 O RING SEAL Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
702855 BOLT &WASHER-M6x30 HEX FLG PIL Enquire To Order
Photo Part No Description Price (each) Stock
7G438A588AA Bracket, Engine Thermostat Connector Enquire To Order
Photo Part No Description Price (each) Stock
CD338K168AA Pump and Cover Assembly Enquire To Order
Photo Part No Description Price (each) Stock
4G430510957 WATER PUMP (NOSE CONE ASSEMBLY) Enquire To Order
Photo Part No Description Price (each) Stock
1R123210531 WATER PUMP PRESS IN SEAL Enquire To Order
Photo Part No Description Price (each) Stock
CD338A513BA Cover Assy, Water Pump Enquire To Order
Photo Part No Description Price (each) Stock
703194 BOLT M8x45 HEX FLNG CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
585104 Pulley, Water Pump Enquire To Order
Photo Part No Description Price (each) Stock
702843 Screw and Washer, M8 x 1.25 x 19, Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
703694 BOLT & WASHER M8x45 HF PIL 8 Enquire To Order
Photo Part No Description Price (each) Stock
702842 Bolt, M8 x 1.25 x 41, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
585382 Gasket, Water Pump Enquire To Order
Photo Part No Description Price (each) Stock
4G4318482AA Hose Guard, Water Pump Enquire To Order
View All

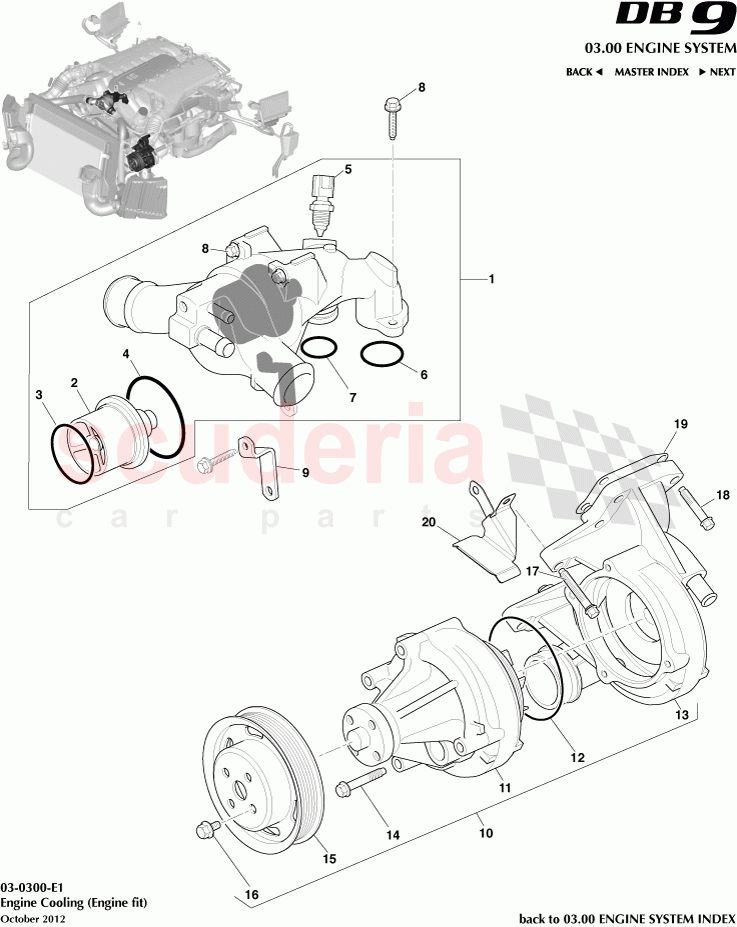

Engine Cooling (Engine Fit) of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CD338A586AA
Housing and Connection Assembly, Engine Thermostat 		- 1 Enquire
2 CD338575AA
Thermostat 		- 1 Enquire
3 3285116
Seal Thermostat
ARRIVING SOON 		- 1 Enquire
4 3285114
O Ring - Seal Housing 		- 1 Enquire
5 CD333910072
SENSOR- OIL/WATER TP 		- 1 Enquire
6 3285112
O Ring - Water Outlet 		- 1 Enquire
7 3285113
O RING SEAL
ARRIVING SOON 		- 1 Enquire
8 702855
BOLT &WASHER-M6x30 HEX FLG PIL 		- 6 Enquire
9 7G438A588AA
Bracket, Engine Thermostat Connector 		- 1 Enquire
10 CD338K168AA
Pump and Cover Assembly 		- 1 Enquire
11 4G430510957
WATER PUMP (NOSE CONE ASSEMBLY) 		- 1 Enquire
12 1R123210531
WATER PUMP PRESS IN SEAL 		- 1 Enquire
13 CD338A513BA
Cover Assy, Water Pump 		- 1 Enquire
14 703194
BOLT M8x45 HEX FLNG CHROME FREE 		- 4 Enquire
15 585104
Pulley, Water Pump 		- 1 Enquire
16 702843
Screw and Washer, M8 x 1.25 x 19, Hex Head 		- 4 Enquire
17 703694
BOLT & WASHER M8x45 HF PIL 8 		- 3 Enquire
18 702842
Bolt, M8 x 1.25 x 41, Hex Flange Head 		- 3 Enquire
19 585382
Gasket, Water Pump 		- 1 Enquire
20 4G4318482AA
Hose Guard, Water Pump 		- 1 Enquire
