Fuel Evaporative Control of Aston Martin Aston Martin DB9 (2013-2016)

View All

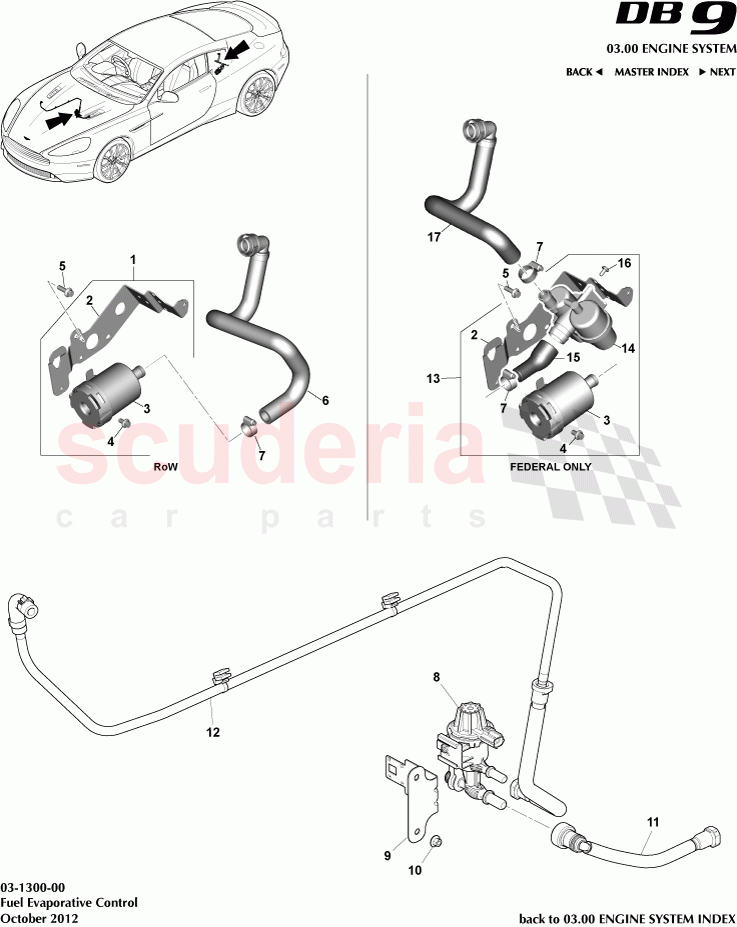

Aston Martin DB9 (2013-2016) - Fuel Evaporative Control

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D339D665BA	BRACKET ASSEMBLY FILTER (NON FEDERAL)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339C177AB	Bracket, Fuel Tank Vent Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B995AA	Filter, Fuel/Vapour Storage Canister	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699094	Clip, Hose, Spring Loaded, 16-25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433410937	Valve Fuel/ Vapour Purge Electronic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439G743AA	Bracket, Electronic Fuel Vapour Management	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239B051AA	TUBE - PURGE VALVE INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD339D289AF	TUB ASY FU/VPR TO EN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339D665AB	BRACKET ASSEMBLY DMTL & FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY539C111AA	PMP ON BD DGNTL LEK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G439G271AA	Hose, DMTL to Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W506961S437	Screw, M5 x 10, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD339A064AA	Cobra Clip 15mm	CD339A064AA Cobra Clip 15mm	-	1	Enquire
1	8D339D665BA	BRACKET ASSEMBLY FILTER (NON FEDERAL)	8D339D665BA BRACKET ASSEMBLY FILTER (NON FEDERAL) RoW	-	1	Enquire
2	8D339C177AB	Bracket, Fuel Tank Vent Valve	8D339C177AB Bracket, Fuel Tank Vent Valve	-	1	Enquire
3	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister	-	1	Enquire
4	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
5	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	3	Enquire
6	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984BB Hose, Fuel/Vapour Canister Vent Inlet RoW	-	1	Enquire
7	699094	Clip, Hose, Spring Loaded, 16-25	699094 Clip, Hose, Spring Loaded, 16-25 Only 1 for RoW	-	2	Enquire
8	4G433410937	Valve Fuel/ Vapour Purge Electronic	4G433410937 Valve Fuel/ Vapour Purge Electronic	-	1	Enquire
9	4G439G743AA	Bracket, Electronic Fuel Vapour Management	4G439G743AA Bracket, Electronic Fuel Vapour Management	-	1	Enquire
10	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	2	Enquire
11	AD239B051AA	TUBE - PURGE VALVE INLET	AD239B051AA TUBE - PURGE VALVE INLET	-	1	Enquire
12	CD339D289AF	TUB ASY FU/VPR TO EN	CD339D289AF TUB ASY FU/VPR TO EN	-	1	Enquire
13	8D339D665AB	BRACKET ASSEMBLY DMTL & FILTER	8D339D665AB BRACKET ASSEMBLY DMTL & FILTER FED Only	-	1	Enquire
14	HY539C111AA	PMP ON BD DGNTL LEK	HY539C111AA PMP ON BD DGNTL LEK FED Only	-	1	Enquire
15	7G439G271AA	Hose, DMTL to Filter	7G439G271AA Hose, DMTL to Filter FED Only	-	1	Enquire
16	W506961S437	Screw, M5 x 10, Pan Head	W506961S437 Screw, M5 x 10, Pan Head FED Only	-	3	Enquire
17	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984AB Hose, Fuel/Vapour Canister Vent Inlet FED Only	-	1	Enquire
