Valve Train of Aston Martin Aston Martin DB9 (2013-2016)

View All

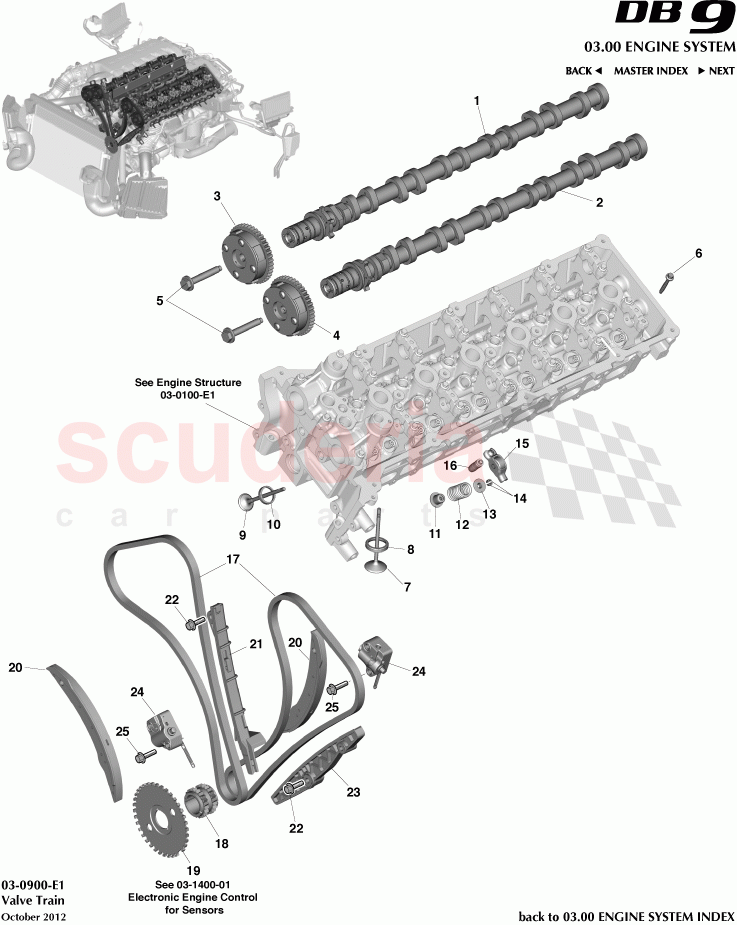

Aston Martin DB9 (2013-2016) - Valve Train

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD336A267AA	Camshaft Assembly, Intake, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336A269AA	Camshaft Assembly, Exhaust, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336C524AB	Cam Timing Assembly, Engine Variable, Intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336C525AB	Cam Timing Assembly, Engine Variable, Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CM5E6279CA	Bolt, VCT Phaser	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336507AB	Valve, Intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336056AA	Valve Seat, Intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336505AA	Valve, Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336057AA	Insert, Valve Seat, Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685038PK	Seal Valve Stem (Pack of 24)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336513AA	Spring, Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685040	Retainer Valve Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685041	Key, Valve Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685914	Arm Assembly Valve Rocker	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	685042	Adjuster Valve Lash	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310483	Chain, Timing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430310013	Arm Assembly, Timing Chain Tensioner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310069	Guide, Timing Chain, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702851	BOLT & WASHER M8 X 32 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310070	Guide, Timing Chain, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310071	Tensioner - Timing Chain	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	703694	BOLT & WASHER M8x45 HF PIL 8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD336A266AA	Camshaft Assembly, Intake, RH	CD336A266AA Camshaft Assembly, Intake, RH	-	1	Enquire
-	CD336A268AA	Camshaft Assembly, Exhaust, RH	CD336A268AA Camshaft Assembly, Exhaust, RH	-	1	Enquire
1	CD336A267AA	Camshaft Assembly, Intake, LH	CD336A267AA Camshaft Assembly, Intake, LH	-	1	Enquire
2	CD336A269AA	Camshaft Assembly, Exhaust, LH	CD336A269AA Camshaft Assembly, Exhaust, LH	-	1	Enquire
3	CD336C524AB	Cam Timing Assembly, Engine Variable, Intake	CD336C524AB Cam Timing Assembly, Engine Variable, Intake	-	2	Enquire
4	CD336C525AB	Cam Timing Assembly, Engine Variable, Exhaust	CD336C525AB Cam Timing Assembly, Engine Variable, Exhaust	-	2	Enquire
5	CM5E6279CA	Bolt, VCT Phaser	CM5E6279CA Bolt, VCT Phaser	-	4	Enquire
7	CD336507AB	Valve, Intake	CD336507AB Valve, Intake	-	24	Enquire
8	CD336056AA	Valve Seat, Intake	CD336056AA Valve Seat, Intake	-	24	Enquire
9	CD336505AA	Valve, Exhaust	CD336505AA Valve, Exhaust	-	24	Enquire
10	CD336057AA	Insert, Valve Seat, Exhaust	CD336057AA Insert, Valve Seat, Exhaust	-	24	Enquire
11	685038PK	Seal Valve Stem (Pack of 24)	685038PK Seal Valve Stem (Pack of 24) Pack of 24	-	48	Enquire
12	CD336513AA	Spring, Valve	CD336513AA Spring, Valve	-	48	Enquire
13	685040	Retainer Valve Spring	685040 Retainer Valve Spring	-	48	Enquire
14	685041	Key, Valve Spring	685041 Key, Valve Spring	-	96	Enquire
15	685914	Arm Assembly Valve Rocker ARRIVING SOON	685914 Arm Assembly Valve Rocker ARRIVING SOON	-	48	Enquire
16	685042	Adjuster Valve Lash	685042 Adjuster Valve Lash	-	48	Enquire
17	1R120310483	Chain, Timing	1R120310483 Chain, Timing	-	2	Enquire
18	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T	-	1	Enquire
19	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	-	1	Enquire
20	4G430310013	Arm Assembly, Timing Chain Tensioner	4G430310013 Arm Assembly, Timing Chain Tensioner	-	2	Enquire
21	1R120310069	Guide, Timing Chain, RH	1R120310069 Guide, Timing Chain, RH	-	1	Enquire
22	702851	BOLT & WASHER M8 X 32 HEX FLANGE	702851 BOLT & WASHER M8 X 32 HEX FLANGE	-	2	Enquire
23	1R120310070	Guide, Timing Chain, LH	1R120310070 Guide, Timing Chain, LH	-	1	Enquire
24	1R120310071	Tensioner - Timing Chain ARRIVING SOON	1R120310071 Tensioner - Timing Chain ARRIVING SOON	-	2	Enquire
25	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8	-	4	Enquire
